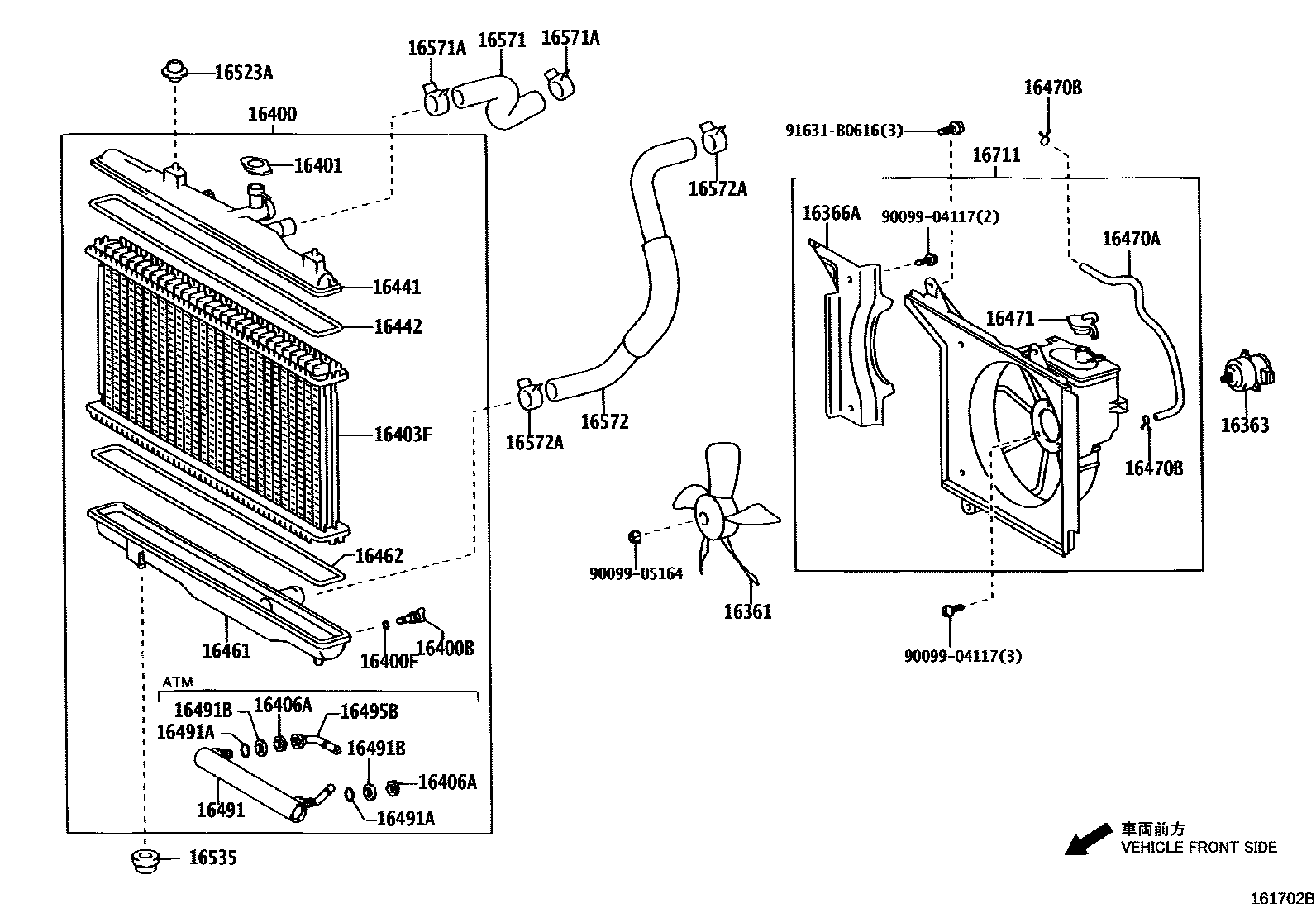

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

16361FAN

main16361-02130i5AFE,8AFE..AXP4#200210-200303

main16361-02130i5AFE,8AFE..AXP4#200303-200511

BLACK

main16361-0M010i1NZFE..NCP42201212

main16361-0M030i1NZFE..NCP42..ATM..15S200304-200702

INDONESIA SPEC

main16361-0M030i1NZFE..NCP42..ATM..TH200212-200510

main16361-0M040i1NZFE..NCP42..MA,TH,VN;1NZFE,2NZFE..NCP4#..MTM..PHL200212-200709

main16361-14020i2SZFE,3SZFE..SCP4#200303-200511

WHITE

main16361-21080i1NZFE..NCP42..TAIW200303-201212

16363MOTOR, COOLING FAN

main16363-02120i2SZFE,3SZFE..SCP4#200403-200511

sub16363-23010

main16363-0M010i1NZFE..NCP42..MA,TAIW,TH,VN;1NZFE,2NZFE..NCP4#..MTM..PHL200212-201211

main16363-0M020i1NZFE..NCP42..ATM..TH200212-200510

main16363-0M020i1NZFE..NCP42..ATM..15S200304-200702

INDONESIA SPEC

main16363-0M080i1NZFE..NCP42201212

main16363-23010i5AFE,8AFE..AXP4#200210-200403

16366AINSULATOR, COOLING FAN MOTOR

main16366-14031i5AFE,8AFE..AXP4#200210-200511

16400RADIATOR ASSY

main16400-02420i5AFE,8AFE..AXP4#..MTM200210-200411

sub16400-02421

main16400-02421i2SZFE,3SZFE..SCP4#..MTM200411-200511

main16400-02430i5AFE,8AFE..AXP4#..ATM200210-200411

sub16400-02431

main16400-02431i5AFE,8AFE..AXP4#..ATM200411-200511

main16400-0M011i1NZFE..NCP42..TAIW200303-200510

main16400-0M020i1NZFE..NCP42..ATM..PHL200212-200510

main16400-0M020i1NZFE..NCP42..ATM..15S200304-200702

INDONESIA SPEC

main16400-0M030i1NZFE,2NZFE..NCP4#..MTM200212-200709

main16400-0M041i1NZFE..NCP42..MA200305-200708

main16400-0M050i1NZFE..NCP42..ATM..TH200304-200702

16400BPLUG, RADIATOR DRAIN COCK

main16417-8C000i1NZFE..NCP42..TAIW200303-200510

main23322-54010i2SZFE,3SZFE..SCP4#200210-200709

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i1NZFE,2NZFE..NCP4#200210-200603

16401CAP SUB-ASSY, RADIATOR

main16401-02420i5AFE,8AFE..AXP4#200210-200411

main16401-02421i5AFE,8AFE..AXP4#200411-200511

sub16401-31480

main16401-0H060i1NZFE,2NZFE..NCP4#..MA,PHL,TH,VN200212-200709

sub16401-0M010

main16401-28280i1NZFE..NCP42..TAIW200303-200806

sub16401-31480

main16401-31480i1NZFE..NCP42200807

16403FCORE SUB-ASSY, RADIATOR

main16403-02420i5AFE,8AFE..AXP4#..MTM200411-200511

main16403-02430i5AFE,8AFE..AXP4#..ATM200210-200511

16406ASUPPORT(FOR OIL COOLER)

main16406-74520i1NZFE..NCP42..ATM200210-200512

16441TANK, RADIATOR, UPPER

main16441-02420i5AFE,8AFE..AXP4#200210-200511

main16441-0M020i1NZFE,2NZFE..NCP4#..MA,PHL,TH,VN200212-200709

16442RING, O(FOR RADIATOR UPPER TANK)

main16442-0M020i1NZFE,2NZFE..NCP4#..PHL,TH,VN200212-200709

main16442-0M040i1NZFE..NCP42..MA200305-200708

main16442-11380i5AFE,8AFE..AXP4#200210-200511

16461TANK, RADIATOR, LOWER

main16461-02420i5AFE,8AFE..AXP4#..MTM200210-200511

main16461-02430i5AFE,8AFE..AXP4#..ATM200210-200511

main16461-0M020i1NZFE..NCP42..ATM..(MA,PHL,TH)200212-200708

main16461-0M030i1NZFE,2NZFE..NCP4#..MTM200212-200709

16462RING, O(FOR RADIATOR LOWER TANK)

main16462-0M020i1NZFE,2NZFE..NCP4#..PHL,TH,VN200212-200709

main16462-0M040i1NZFE..NCP42..MA200305-200708

main16462-11420i5AFE,8AFE..AXP4#200210-200511

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90099-33370i5AFE,8AFE..AXP4#200210-200511

L=420

main90445-12078i1NZFE,2NZFE..NCP4#200212-200603

*H,L=430

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i5AFE,8AFE..AXP4#200210-200603

16471CAP SUB-ASSY, RESERVE TANK

main16471-23010i1NZFE,2NZFE..NCP4#200210-200603

16491COOLER, OIL(FOR ATM)

main16491-23090i1NZFE..NCP42..ATM..(MA,PHL,TH)200212-200708

main16491-23091i5AFE,8AFE..AXP4#..ATM200210-200511

16491ARING, O(FOR ATM OIL COOLER)

main16492-62060i5AFE,8AFE..AXP4#..ATM200210-200512

16491BWASHER, PLATE(FOR ATM OIL COOLER)

main16493-74520i5AFE,8AFE..AXP4#..ATM200210-200512

16495BPIPE (FOR ATM OIL COOLER)

main16495-02430i5AFE,8AFE..AXP4#..ATM200210-200511

16523CUSHION, SUB-RADIATOR SUPPORT

main16523-0M010i1NZFE..NCP42..TAIW200303-200510

main16523-0M020i1NZFE,2NZFE..NCP4#..MA,PHL,TH,VN200212-200709

16523ACUSHION, RADIATOR SUPPORT

main16523-02030i5AFE,8AFE..AXP4#200210-200511

16535SUPPORT, RADIATOR, LOWER

main90080-48065i2SZFE,3SZFE..SCP4#200210-200511

main90080-48066i1NZFE..NCP42..TAIW200303-200510

main90080-48067i1NZFE,2NZFE..NCP4#..MA,PHL,TH,VN200212-200709

16571HOSE, RADIATOR, INLET

main16571-02130i5AFE,8AFE..AXP4#200210-200511

main16571-0J030i2SZFE,3SZFE..SCP4#200608

main16571-0M020i1NZFE,2NZFE..NCP4#200212-200603

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-31003i2SZFE,3SZFE..SCP4#200608

main90467-33006i5AFE,8AFE..AXP4#200210-200212

main90467-33006i1NZFE..NCP42200212-200303

NO.2

main90467-33006i1NZFE,2NZFE..NCP4#200303-200603

NO.1 & NO.2

main90467-34004i5AFE,8AFE..AXP4#200212-200511

main90467-34004i1NZFE..NCP42200212-200303

NO.1

16572HOSE, RADIATOR, OUTLET

main16572-02130i5AFE,8AFE..AXP4#200210-200511

main16572-0J030i2SZFE,3SZFE..SCP4#200608

main16572-0M020i1NZFE,2NZFE..NCP4#200212-200603

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-31003i2SZFE,3SZFE..SCP4#200608

main90467-33006i1NZFE..NCP42200212-200303

NO.2

main90467-33006i1NZFE,2NZFE..NCP4#200303-200603

NO.1 & NO.2

main90467-33006i5AFE,8AFE..AXP4#200210-200212

main90467-34004i5AFE,8AFE..AXP4#200212-200511

main90467-34004i1NZFE..NCP42200212-200303

NO.1

16711SHROUD, FAN

main16711-02150i5AFE,8AFE..AXP4#200210-200511

main16711-0M010i1NZFE..NCP42..TAIW200303-200510

main16711-0M020i1NZFE,2NZFE..NCP4#..MA,PHL,TH,VN200212-200709

9009904117

main90099-04117

9009905164

main90099-05164

91631B0616

main91631-B0616

31 parts on this diagram · 8 diagrams in section
