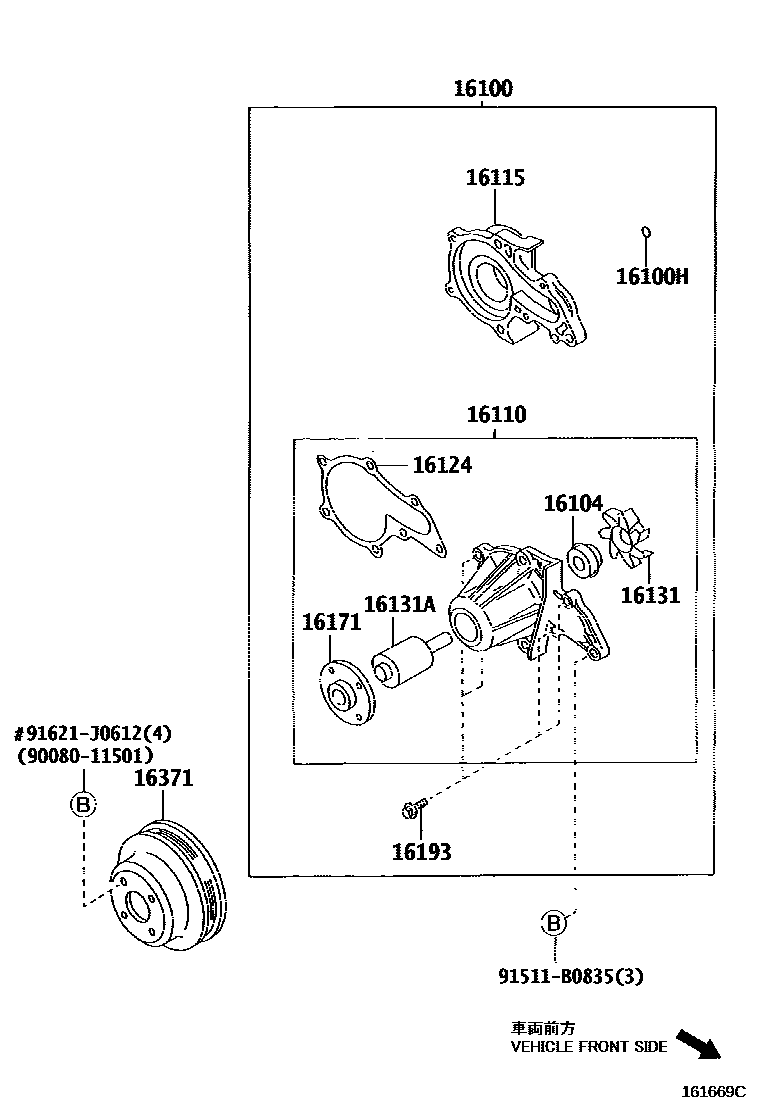

WATER PUMP

0001 1 0002 1 0003 1

16100PUMP ASSY, ENGINE WATER

main16100-09180i1NZFE..NCP42..MA,PHL,TH,VN200212-200603

(L)

main16100-09210i1NZFE..NCP42..TAIW200303-200510

(L)

main16100-09211i1NZFE..NCP42201201

(L)

main16100-09381i5AFE,8AFE..AXP4#200507-200511

(L)

main16100-09480i2SZFE,3SZFE..SCP4#200608-200707

main16100-09481i2SZFE,3SZFE..SCP4#200707

main16100-19295i5AFE,8AFE..AXP4#200210-200412

main16100-19336i5AFE,8AFE..AXP4#200412-200507

main16100-19337i5AFE,8AFE..AXP4#200507-200511

(J)

main16100-29155i2NZFE..NCP41200212-200506

main16100-29156i1NZFE..NCP42..VN200601-200603

(J)

main16100-29157i1NZFE..NCP42201111

(J)

16100HRING, O(FOR WATER PUMP)

main90301-C0006i5AFE,8AFE..AXP4#200601

(L)

main96761-24035i5AFE,8AFE..AXP4#200210-200511

16104SEAL SET, WATER PUMP

main16104-46060i5AFE,8AFE..AXP4#200210-200506

16110PUMP ASSY, WATER, W/O COUPLING

main16110-09060i5AFE,8AFE..AXP4#200511-200608

main16110-19205i5AFE,8AFE..AXP4#200210-200511

16115COVER, WATER PUMP

main16113-02080i5AFE,8AFE..AXP4#200507-200511

(L)

main16113-16070i5AFE,8AFE..AXP4#200412-200506

16124GASKET, WATER PUMP COVER

main16124-15110i5AFE,8AFE..AXP4#200511

16131ROTOR, WATER PUMP

main16131-16090i5AFE,8AFE..AXP4#..DLXI,GL,GLI,GLXI200210-200401

16131ABEARING, WATER PUMP

main90029-36846i5AFE,8AFE..AXP4#..DLXI,GL,GLI,GLXI200210-200401

16171SEAT, WATER PUMP PULLEY

main16171-10012i5AFE,8AFE..AXP4#200507-200511

16193BOLT, STUD(FOR WATER PUMP COVER)

main16193-15011×4i5AFE,8AFE..AXP4#200210-200506

16371PULLEY, FAN

main16371-15060i8AFE..AXP41..DLX200210-200511

main16371-15071i5AFE,8AFE..AXP4#200511

9008011501

main90080-11501

91511B0835

main91511-B0835

91621J0612

main91621-J0612
