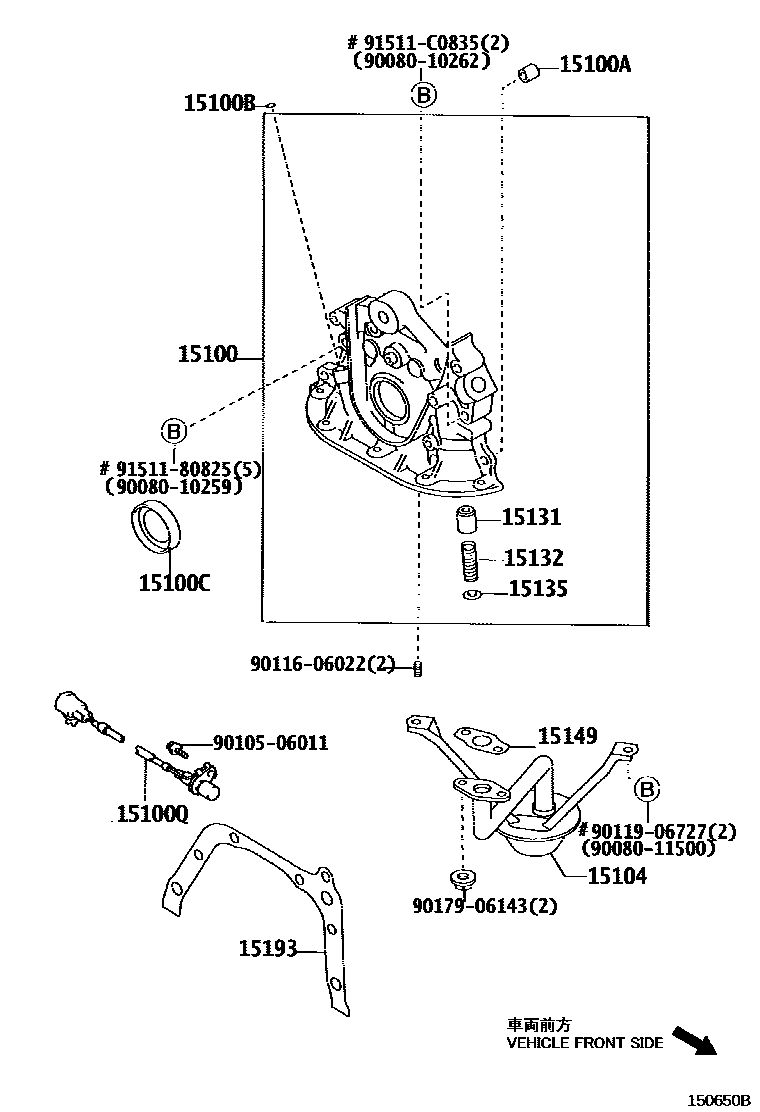

ENGINE OIL PUMP

0001 1 0002 1 0003 1

15100PUMP ASSY, OIL

main15100-02120i5AFE,8AFE..AXP4#200210-200511

(L)

main15100-0M010i1NZFE..NCP42..MA,PHL,TH,VN200212-200709

(L)

sub15100-21042

main15100-0M020i1NZFE..NCP42..TAIW200303-200510

(L)

main15100-0M020i1NZFE..NCP42..TAIW200510-201205

main15100-0M021i1NZFE..NCP42201205

(L)

main15100-15080i5AFE,8AFE..AXP4#200210-200511

(J)

main15100-21030i2NZFE..NCP41200305-200702

sub15100-21032

main15100-21040i1NZFE..NCP42..MA,PHL,TH,VN200212-200709

(J)

sub15100-21042

main15100-21043i1NZFE..NCP42201205

(J)

main15100-B0020i3SZFE..SCP42200608

sub15100-BZ060

main15100-BZ010i2SZFE..SCP41200608

sub15100-97401

15100APIN, RING(FOR OIL PUMP SET)

main90253-08003i1NZFE..NCP42..VN200212-200603

main90253-11021i5AFE,8AFE..AXP4#200210-200511

15100BRING, O(FOR OIL PUMP)

main90301-31012i1NZFE,2NZFE..NCP4#200212-200703

NO.1

sub12151-21010

main90301-31012i1NZFE..NCP42200703

(J),NO.1

sub12151-21010

main90301-42006i1NZFE,2NZFE..NCP4#200212-200702

NO.2

sub11497-21010

main90301-42006i1NZFE..NCP42200702

(J),NO.2

sub11497-21010

main90301-C0007i5AFE,8AFE..AXP4#200601

(L)

main90301-T0040i1NZFE..NCP42200702

(L),NO.2

main90301-T0042i1NZFE..NCP42200703

(L),NO.1

main96721-19010i5AFE,8AFE..AXP4#200210-200601

main96721-19010i5AFE,8AFE..AXP4#200601

(J)

15100CSEAL(FOR OIL PUMP)

main90080-31075i5AFE,8AFE..AXP4#200210-200511

(L)

main90080-31088i1NZFE..NCP42..MA,PHL,TH,VN200212-200709

(L)

sub90311-T0055

main90311-25021i1NZFE..NCP42..VN200212-200709

(J)

sub90311-25032

main90311-25021i1NZFE,2NZFE..NCP4#..PHL,TAIW,TH200212-201205

sub90311-25032

main90311-25032i1NZFE..NCP42201205

main90311-32020i5AFE,8AFE..AXP4#200210-200511

(J)

15100QSENSOR, CRANK POSITION

main90919-05011i5AFE,8AFE..AXP4#200210-200511

main90919-05045i1NZFE..NCP42..MA200212-201106

sub90919-05081

main90919-05081i1NZFE..NCP42201106-201306

sub90919-05087

main90919-05087i1NZFE..NCP42201306

15104STRAINER SUB-ASSY, OIL

main15104-0M020i1NZFE..NCP42..TAIW200303-200510

(L)

main15104-15090i5AFE,8AFE..AXP4#200210-200511

main15104-21021i1NZFE,2NZFE..NCP4#..MA,PHL,TH,VN200303-200612

(J)

sub15104-21022

main15104-21021i1NZFE,2NZFE..NCP4#..MA,PHL,TH,VN200212-200603

sub15104-21022

main15104-21022i1NZFE..NCP42..TAIW200612

(J)

main15104-21022i1NZFE,2NZFE..NCP4#..MA,PHL,TH,VN200612-200709

main15104-23070i2SZFE,3SZFE..SCP4#200608

15131VALVE, OIL PUMP RELIEF

main15131-21020i1NZFE..NCP42..VN200212-200603

main15131-24010i5AFE,8AFE..AXP4#200210-200511

15132SPRING, OIL PUMP RELIEF VALVE

main15132-0M010i1NZFE..NCP42..MA,PHL,TH,VN200510-200709

TYPE B:REFER ILLUST.

main15132-0M010i1NZFE..NCP42..PHL,TAIW,TH200212-200603

MARK=TYPE B:REFER TO ILLUSTRATION

main15132-0M020i1NZFE..NCP42..TAIW200303-201205

TYPE B:REFER ILLUST.

main15132-21020i1NZFE..NCP42..MA200212-200603

MARK=TYPE A:REFER TO ILLUSTRATION

main15132-21020i2NZFE..NCP41200305-200702

main15132-21020i1NZFE..NCP42..MA,PHL,TH,VN200510

TYPE A:REFER ILLUST.

main15132-40010i5AFE,8AFE..AXP4#200210-200511

15135RETAINER, OIL PUMP RELIEF VALVE

main15135-15010i5AFE,8AFE..AXP4#200210-200511

15149GASKET, OIL STRAINER FLANGE

main15149-02040i5AFE,8AFE..AXP4#200210-200511

(L)

main15149-16010i5AFE,8AFE..AXP4#200210-200511

(J)

main16258-21010i1NZFE..NCP42200212-200302

sub16258-21030

main16258-21030i1NZFE..NCP42..VN200302-200603

15193GASKET, OIL PUMP

main15197-02050i5AFE,8AFE..AXP4#200210-200511

(L)

main15197-16030i5AFE,8AFE..AXP4#200210-200511

(J)

9008010259

main90080-10259

9008010262

main90080-10262

9008011500

main90080-11500

9010506011

main90105-06011

9011606022

main90116-06022

9011906727

main90119-06727

9017906143

main90179-06143

9151180825

main91511-80825

91511C0835

main91511-C0835

20 parts on this diagram · 3 diagrams in section
