EPC Data

CAMSHAFT & VALVE

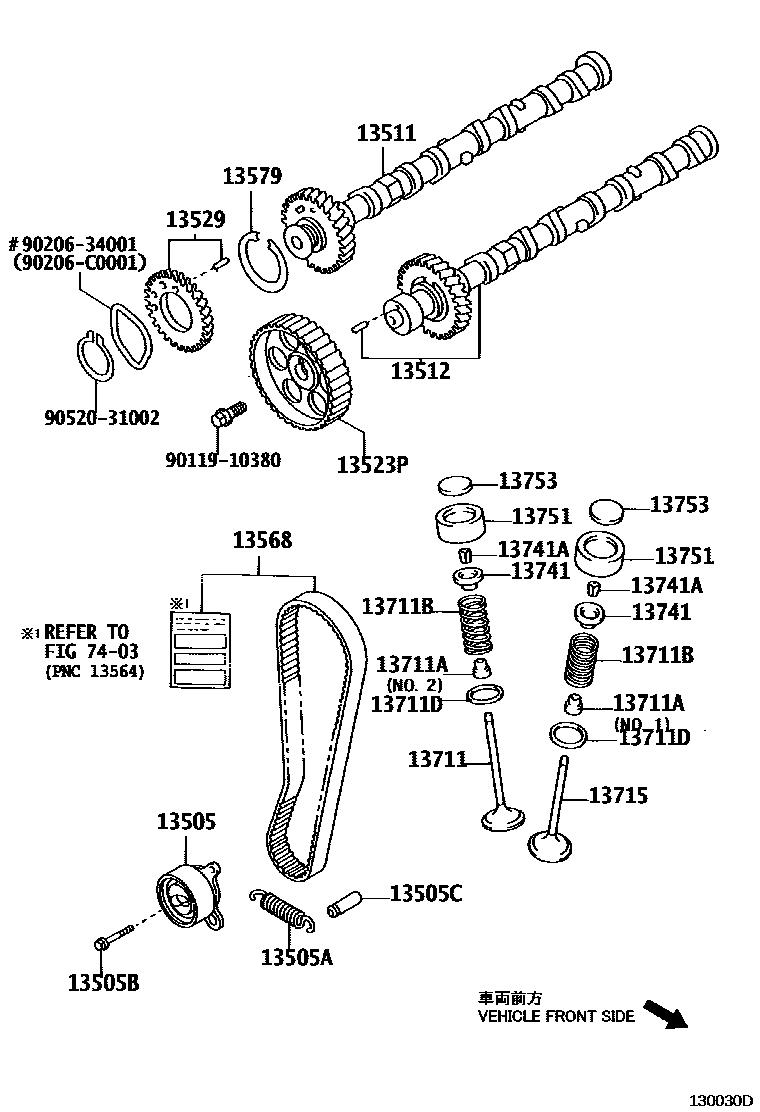

Parts diagram
13505IDLER SUB-ASSY, TIMING BELT, NO.1
main13505-02040i200411-200511
(L)
main13505-15050i200210-200511
(J)
13505ASPRING, TENSION(FOR IDLER)
main90506-13004i200210-200505
main90506-13004i200505-200511
(J)
main90506-C0001i200505-200511
(L)
13505BBOLT, FLANGE (FOR IDLER)
main90105-10334i200210-200511
13505CPIN(FOR IDLER SPRING TENSION)
main90249-06006i200210-200511
13511CAMSHAFT
main13501-02040i200210-200511
(L)
main13501-16060i200210-200511
(J)
sub13501-02910
main13501-21030i200212-200603
main13501-97401i200608
main13501-B1020i200608
13512CAMSHAFT, NO.2
main13502-02050i200210-200511
(L)
main13502-15030i200210-200511
(J)
main13502-21020i200305-200401
sub13502-21021
sub13523-22020
main13502-21021i200401-200702
main13502-21030i200212-200401
sub13502-21031
sub13523-22020
main13502-21031i200401-200603
main13502-97401i200608
13523GEAR OR SPROCKET, CAMSHAFT TIMING
main13523-0M010i200303-200401
(L)
main13523-0M020i200212-200401
(L)
sub13523-21020
main13523-21020i200305-200401
main13523-21020i200212-200401
(J)
main13523-22020i200401-200603
main13523-B1010i200608
main13523-BZ010i200608
13523PPULLEY, CAMSHAFT TIMING
main13523-02090i200210-200511
(L)
main13523-15030i200210-200511
(J)
13529GEAR, CAMSHAFT SUB
main13529-15010i200210-200511
13568BELT, TIMING
main13568-09060i200210-200511
(L)
main13568-19046i200210-200511
(J)
13579WASHER, CAMSHAFT TIMING GEAR BOLT
main13579-15010i200210-200511
13711VALVE, INTAKE
main13711-02060i200210-200608
(L)
main13711-16060i200210-200608
(J)
main13711-21010i200212-200603
main13711-B1020i200608
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
main90048-12021i200608-200709
main90048-12026i200709
sub90913-02125
main90080-31077i200210-200511
NO.1,(L)
main90080-31078i200210-200511
NO.2,(L)
main90913-02088i200210-200511
NO.2,(J)
main90913-02090i200210-200511
NO.1,(J)
main90913-02092i200212-200702
NO.2
sub90913-02128
main90913-02092i200510-201309
EXHAUST SIDE
sub90913-02128
main90913-02093i200212-200702
NO.1
main90913-02093i200510-201309
INTAKE SIDE
13711BSPRING, COMPRESSION(FOR INNER)
main90080-50257i200210-200511
(L)
main90501-32029i200210-200511
(J)
13711DWASHER, PLATE(FOR VALVE SPRING SEAT)
main90201-16031i200505-200511
(J)
main90201-16031i200210-200505
main90201-C0001i200505-200511
(L)
13715VALVE, EXHAUST
main13715-02050i200210-200511
(L)
main13715-16060i200210-200511
(J)
main13715-21010i200212-200603
main13715-B1020i200608
13741RETAINER, VALVE SPRING
main13741-15020i200210-200511
main13741-22021i200212-200603
main13741-97401i200608
13741ALOCK, VALVE SPRING RETAINER
main90048-13013i200608
main90913-03021i200210-200511
main90913-03031i200212-201309
13751LIFTER, VALVE
main13751-02030i200502-200511
(L)
main13751-21020i201205
T=5.06
main13751-21030i201205
T=5.08
main13751-21040i201205
T=5.10
main13751-21050i201205
T=5.12
main13751-21060i201205
T=5.14
main13751-21070i201205
T=5.16
main13751-21080i201205
T=5.18
main13751-21090i201205
T=5.20
main13751-21100i201205
T=5.22
main13751-21110i201205
T=5.24
main13751-21120i201205
T=5.26
main13751-21130i201205
T=5.28
main13751-21140i201205
T=5.30
main13751-21150i201205
T=5.32
main13751-21160i201205
T=5.34
main13751-21170i201205
T=5.36
main13751-21180i201205
T=5.38
main13751-21190i201205
T=5.40
main13751-21200i201205
T=5.42
main13751-21210i201205
T=5.44
main13751-21220i201205
T=5.46
main13751-21230i201205
T=5.48
main13751-21240i201205
T=5.50
main13751-21250i201205
T=5.52
main13751-21260i201205
T=5.54
main13751-21270i201205
T=5.56
main13751-21280i201205
T=5.58
main13751-21290i201205
T=5.60
main13751-21300i201205
T=5.62
main13751-21310i201205
T=5.64
main13751-21320i201205
T=5.66
main13751-21330i201205
T=5.68
main13751-21340i201205
T=5.70
main13751-21350i201205
T=5.72
main13751-21360i201205
T=5.74
main13751-22040i200212-201205
T=5.06
sub13751-21020
main13751-22050i200212-201205
T=5.08
sub13751-21030
main13751-22060i200212-201205
T=5.10
sub13751-21040
main13751-22070i200212-201205
T=5.12
sub13751-21050
main13751-22080i200212-201205
T=5.14
sub13751-21060
main13751-22090i200212-201205
T=5.16
sub13751-21070
main13751-22100i200212-201205
T=5.18
sub13751-21080
main13751-22110i200212-201205
T=5.20
sub13751-21090
main13751-22120i200212-201205
T=5.22
sub13751-21100
main13751-22130i200212-201205
T=5.24
sub13751-21110
main13751-22140i200212-201205
T=5.26
sub13751-21120
main13751-22150i200212-201205
T=5.28
sub13751-21130
main13751-22160i200212-201205
T=5.30
sub13751-21140
main13751-22170i200212-201205
T=5.32
sub13751-21150
main13751-22180i200212-201205
T=5.34
sub13751-21160
main13751-22190i200212-201205
T=5.36
sub13751-21170
main13751-22200i200212-201205
T=5.38
sub13751-21180
main13751-22210i200212-201205
T=5.40
sub13751-21190
main13751-22220i200212-201205
T=5.42
sub13751-21200
main13751-22230i200212-201205
T=5.44
sub13751-21210
main13751-22240i200212-201205
T=5.46
sub13751-21220
main13751-22250i200212-201205
T=5.48
sub13751-21230
main13751-22260i200212-201205
T=5.50
sub13751-21240
main13751-22270i200212-201205
T=5.52
sub13751-21250
main13751-22280i200212-201205
T=5.54
sub13751-21260
main13751-22290i200212-201205
T=5.56
sub13751-21270
main13751-22300i200212-201205
T=5.58
sub13751-21280
main13751-22310i200212-201205
T=5.60
sub13751-21290
main13751-22320i200212-201205
T=5.62
sub13751-21300
main13751-22330i200212-201205
T=5.64
sub13751-21310
main13751-22340i200212-201205
T=5.66
sub13751-21320
main13751-22350i200212-201205
T=5.68
sub13751-21330
main13751-22360i200212-201205
T=5.70
sub13751-21340
main13751-22370i200212-201205
T=5.72
sub13751-21350
main13751-22380i200212-201205
T=5.74
sub13751-21360
main13751-74020i200502-200511
(J)
main13751-74020i200210-200502
main13751-97401-12i200608
MARK12
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-14i200608
MARK14
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-16i200608
MARK16
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-18i200608
MARK18
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-20i200608
MARK20
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-22i200608
MARK22
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-24i200608
MARK24
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-26i200608
MARK26
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-28i200608
MARK28
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-30i200608
MARK30
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-32i200608
MARK32
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-34i200608
MARK34
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-36i200608
MARK36
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-38i200608
MARK38
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-40i200608
MARK40
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-42i200608
MARK42
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-44i200608
MARK44
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-46i200608
MARK46
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-48i200608
MARK48
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-50i200608
MARK50
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-52i200608
MARK52
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-54i200608
MARK54
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-56i200608
MARK56
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-58i200608
MARK58
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-60i200608
MARK60
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-62i200608
MARK62
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-64i200608
MARK64
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-66i200608
MARK66
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-68i200608
MARK68
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
13753SHIM, VALVE ADJUSTING
main13753-74010i200210-200511
T=2.50
main13753-74030i200210-200511
T=2.55
main13753-74050i200210-200511
T=2.60
main13753-74070i200210-200511
T=2.65
main13753-74090i200210-200511
T=2.70
main13753-74110i200210-200511
T=2.75
main13753-74130i200210-200511
T=2.80
main13753-74150i200210-200511
T=2.85
main13753-74170i200210-200511
T=2.90
main13753-74190i200210-200511
T=2.95
main13753-74210i200210-200511
T=3.00
main13753-74230i200210-200511
T=3.05
main13753-74250i200210-200511
T=3.10
main13753-74270i200210-200511
T=3.15
main13753-74290i200210-200511
T=3.20
main13753-74310i200210-200511
T=3.25
main13753-74330i200210-200511
T=3.30
7403
9011910380
main90119-10380
9020634001
main90206-34001
90206C0001
main90206-C0001
9052031002
main90520-31002

25 parts on this diagram · 3 diagrams in section

CAMSHAFT & VALVE — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
