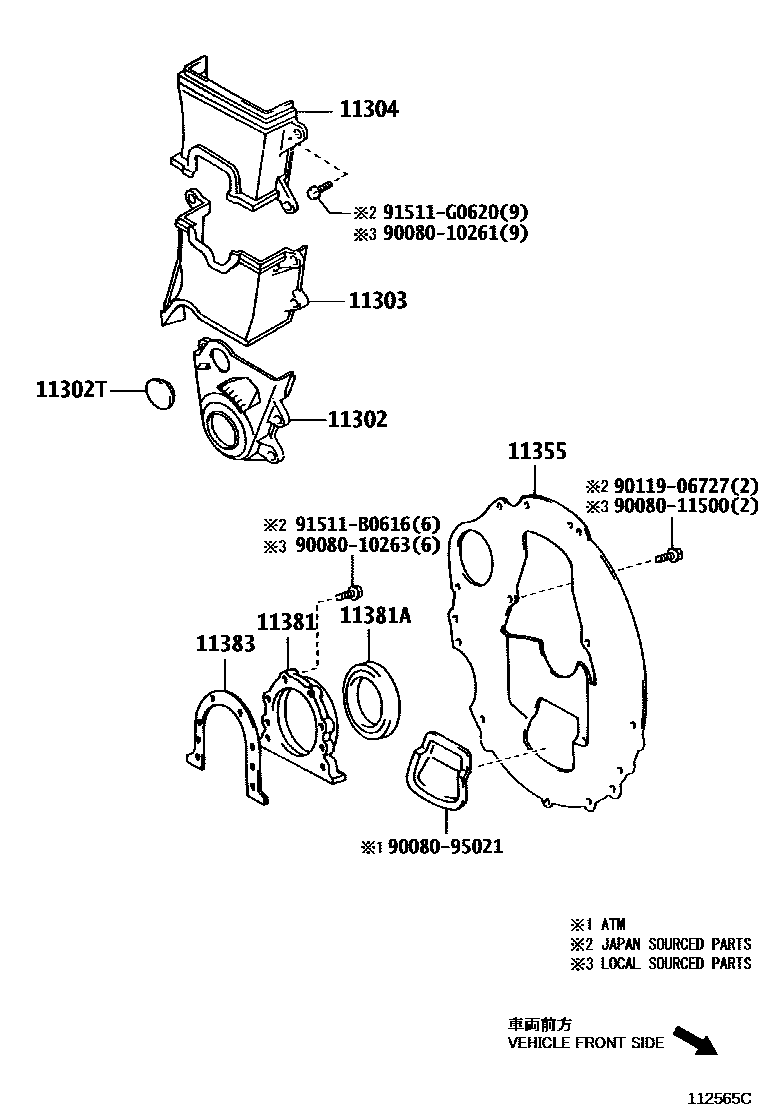

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-02090i5AFE,8AFE..AXP4#200210-200511

(L)

main11302-16040i5AFE,8AFE..AXP4#200210-200511

(J)

main11310-23060i2SZFE..SCP41200608

main11310-23070i3SZFE..SCP42200608

11302TPLUG, HOLE

main90950-01783i5AFE,8AFE..AXP4#200210-200501

main90950-01783i5AFE,8AFE..AXP4#200501-200511

(J)

main90950-C1003i5AFE,8AFE..AXP4#200501-200511

(L)

11303COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY

main11303-02100i5AFE,8AFE..AXP4#200210-200511

(L)

main11303-16060i5AFE,8AFE..AXP4#200210-200511

(J)

11304COVER, TIMING CHAIN OR BELT, NO.2

main11304-02070i5AFE,8AFE..AXP4#200210-200511

(L)

main11304-15030i5AFE,8AFE..AXP4#200210-200511

(J)

main11322-97401i2SZFE,3SZFE..SCP4#200608

sub11322-B1010

11355PLATE, REAR END

main11355-02080i5AFE,8AFE..AXP4#..MTM200210-200511

(J),(L)

main11355-02090i5AFE,8AFE..AXP4#..ATM200210-200511

main11355-97401i2SZFE,3SZFE..SCP4#200608

11381RETAINER, ENGINE REAR OIL SEAL

main11381-02030i5AFE,8AFE..AXP4#200210-200511

(L)

main11381-15010i5AFE,8AFE..AXP4#200210-200511

(J)

main11381-97402i2SZFE,3SZFE..SCP4#200608

11381ASEAL, ENGINE REAR OIL

main90043-11402i2SZFE,3SZFE..SCP4#200608

main90080-31076i5AFE,8AFE..AXP4#200210-200511

(L)

main90311-70007i5AFE,8AFE..AXP4#200210-200511

(J)

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-02040i5AFE,8AFE..AXP4#200210-200511

(L)

main11383-16010i5AFE,8AFE..AXP4#200210-200511

(J)

9008010261

main90080-10261

9008010263

main90080-10263

9008011500

main90080-11500

9008095021

main90080-95021

9011906727

main90119-06727

91511B0616

main91511-B0616

91511G0620

main91511-G0620

15 parts on this diagram · 3 diagrams in section
