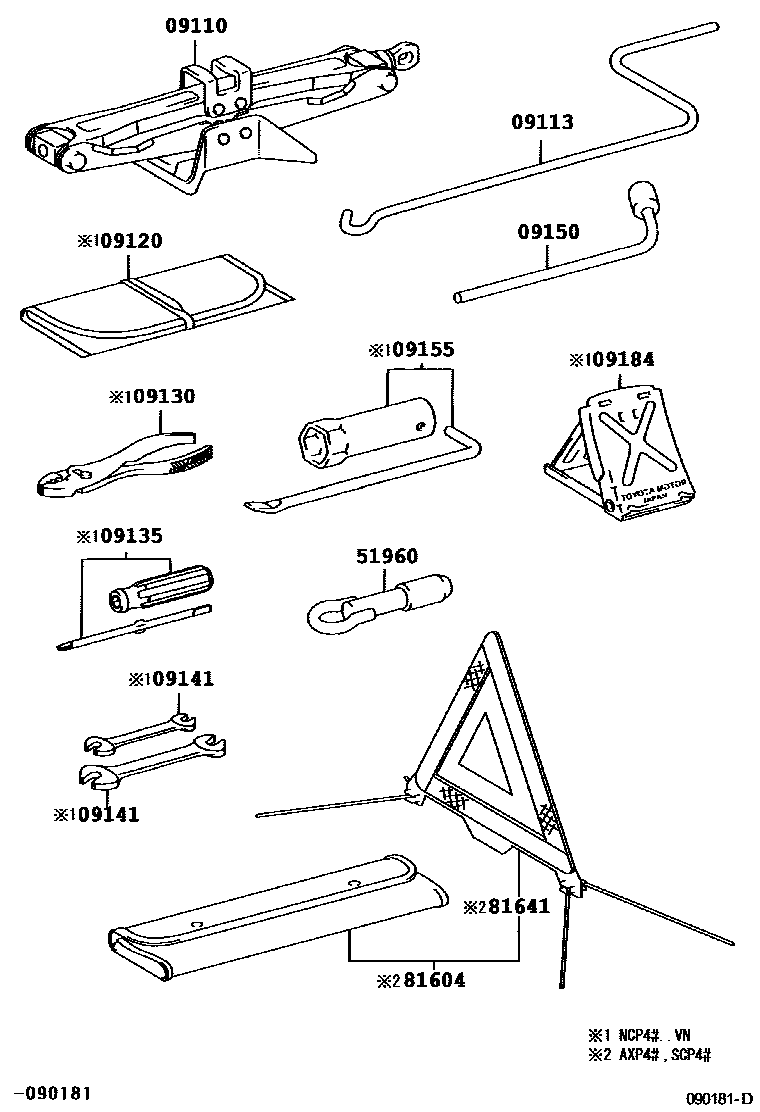

STANDARD TOOL

09110JACK ASSY

main09111-02020iNCP42..VN200307-200603

main09111-0D020iSCP4#200608

main09111-0D030iNCP4#..MA,PHL,TH200510-200708

main09111-20120iNCP42..TAIW200303-200510

09113HANDLE, JACK

main09113-0A010iNCP4#..MA,PHL,TH200510-200708

main09113-0D020iSCP4#200608-200711

main09113-0D021iSCP4#200712

main09113-20040iNCP42..TAIW,VN200303-200603

09120BAG, TOOL

main09120-16030iNCP42..VN200307-200603

09130PLIERS

main99913-11500iNCP42..VN200307-200603

09135DRIVER, SCREW

main99915-10700iNCP42..VN200307-200603

09141SPANNER

main99914-10810iNCP42..VN200307-200603

8 X 10

main99914-11214iNCP42..VN200307-200603

12 X 14

09150WRENCH, HUB NUT BOX

main09150-0A010iNCP4#..MA,PHL,TH200212-200512

main09150-0D010iSCP4#200608-200711

main09150-0D020iSCP4#200712

main09150-16010iNCP42..TAIW200303-200510

main09150-40010iNCP42..VN200603-200709

09155WRENCH, SPARK PLUG

main09155-74010iNCP42..VN200307-200603

09184STOPPER, WHEEL

main09184-00010iNCP42..VN200307-200603

51960HOOK ASSY, FRONT

main51960-0D020iNCP42..ATM..15S;NCP42..(15E,15G,15J)..(MA,TAIW,TH,VN)200212-200603

main51960-0D070iNCP4#..PHL;NCP42..MTM..15S; NCP42..ATM..15S;NCP42..(15E,15J)..TH200410-200510

BRUNEI OR INDONESIA OR SINGAPORE SPEC

main51960-0D090iAXP4#200511-200608

81604REFLECTOR SET, TRIANGLE

main81604-02010iAXP4#200511-200608

main81604-02011iSCP4#200708

81641REFLECTOR, TRIANGLE

main81641-02010iAXP4#200511-200608

12 parts on this diagram · 1 diagram in section
