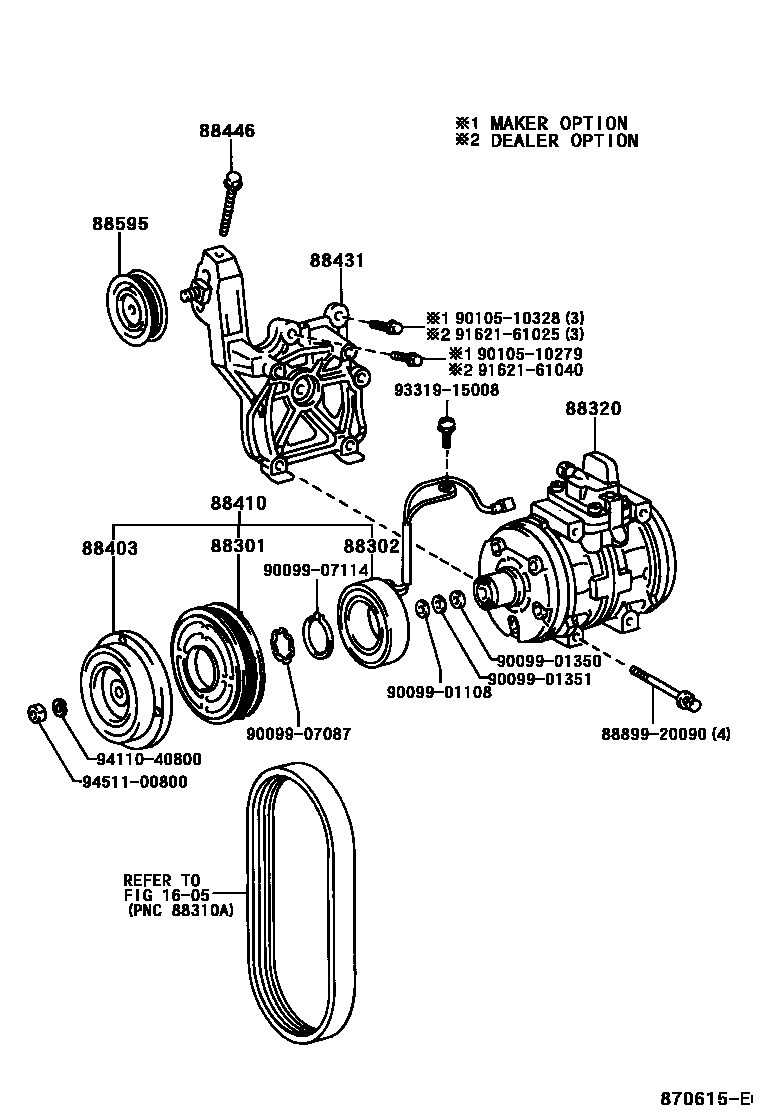

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

1605

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-0A010iAL50..GEN199612

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-0A010iAL50..GEN199612

88320COMPRESSOR ASSY, COOLER

main88320-0A010iAL50..GEN199612

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-12030iAL50..GEN199612

88410CLUTCH ASSY, MAGNET

main88410-0A010iAL50..GEN199612

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-0A010iAL50..GLI..GEN;AL50..5F..XLI..GEN200103

SINGAPORE SPEC

main88431-0A010iAL50..GEN199612-200103

main88431-0A020iAL50..IDN200003

main88431-0A030iAL50..GEN200103

88446BOLT, IDLE PULLEY

main88446-12030iAL50199612

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-17010iAL50199612

8889920090COVER, EVAPORATOR

main88899-20090

9009901108

main90099-01108

9009901350

main90099-01350

9009901351

main90099-01351

9009907087

main90099-07087

9009907114

main90099-07114

9010510279

main90105-10279

9010510328

main90105-10328

9162161025

main91621-61025

9162161040

main91621-61040

9331915008

main93319-15008

9411040800

main94110-40800

9451100800

main94511-00800

22 parts on this diagram · 2 diagrams in section
