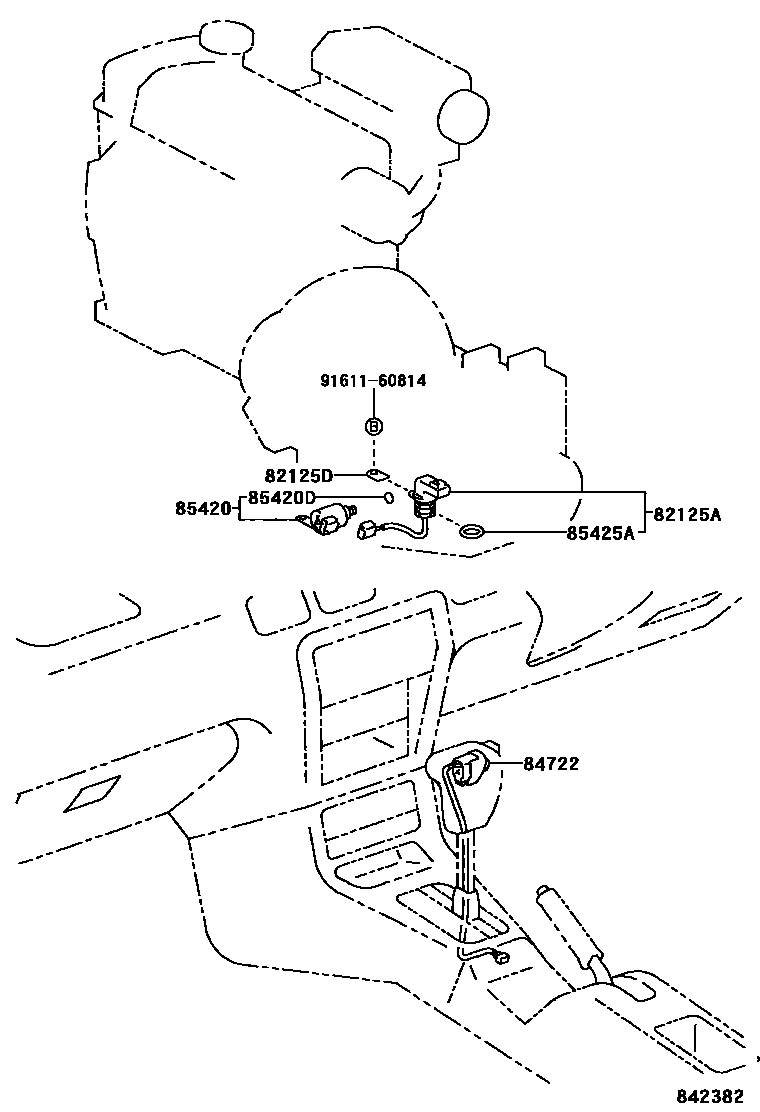

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

82125AWIRE, TRANSMISSION

main82125-20240iAL50..4FC..GEN199810

82125DPLATE, TRANSMISSION WIRE LOCK

main33485-30020iAL50..4FC199810-200307

84722SWITCH, TRANSMISSION CONTROL

main84722-16120-B1iAL50..4FC199810-200203

BLUISH GRAY,TRIM1#

85420SOLENOID ASSY, TRANSMISSION

main85420-20180iAL50..4FC199810-199908

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004iAL50..4FC199810-199908

85425ARING, O (FOR OVERDRIVE SOLENOID)

main96721-24018iAL50..4FC..GEN199810

9161160814

main91611-60814

7 parts on this diagram · 1 diagram in section
