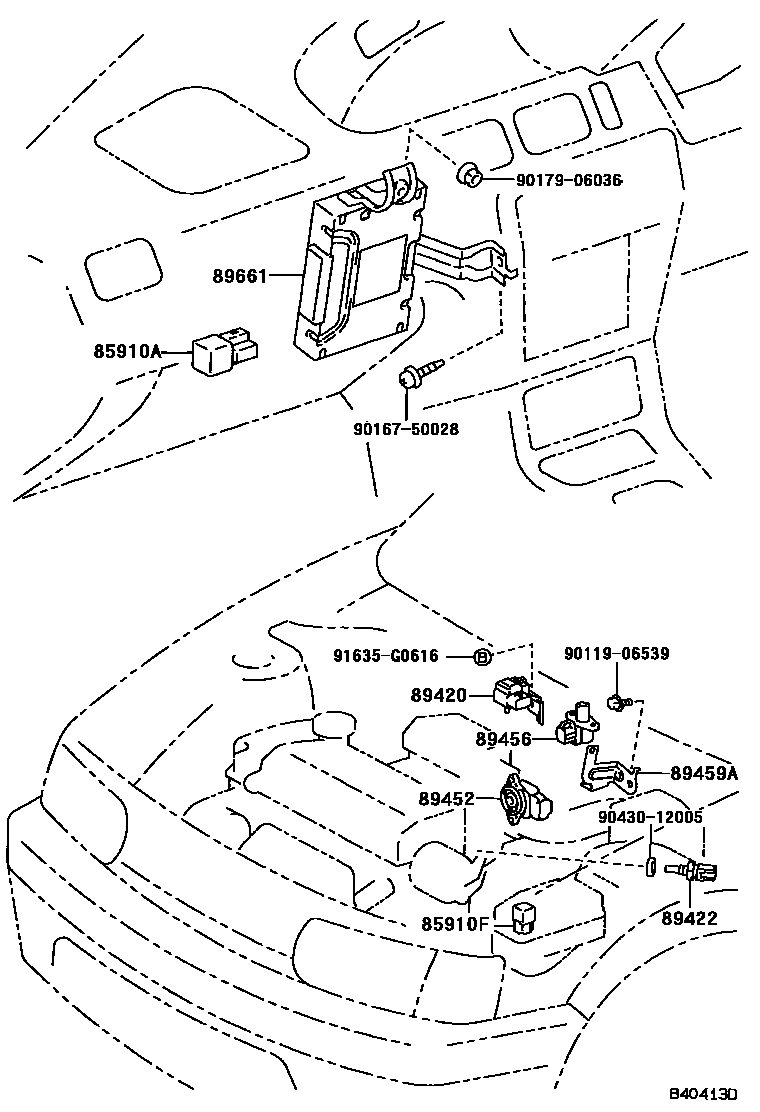

ELECTRONIC FUEL INJECTION SYSTEM

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90080-87008199612-200307

85910FRELAY, COMPUTER (FOR EFI)

main90080-87008199612-200307

89420SENSOR ASSY, VACUUM

main89420-16070199612-200307

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-16010199612-200307

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-0A010199810

main89452-33030199612-199810

89456RESISTOR, VARIABLE

main89456-30010200003-200307

89459ABRACKET, VARIABLE RESISTOR

main89459-16010200003-200307

89661COMPUTER, ENGINE CONTROL

main89660-0A010199612-199712

main89660-0A011199712-199810

main89660-0A020199810

main89660-0A030199810-199910

main89660-0A040199810

main89660-16660199612-199712

main89660-16661199712-199810

9011906539

main90119-06539

9016750028

main90167-50028

9017906036

main90179-06036

9043012005

main90430-12005

91635G0616

main91635-G0616

13 parts on this diagram · 1 diagram in section
