WIRING & CLAMP

0001 1ENGINE ROOM WIRE 0002 1ENGINE WIRE 0003 1INSTRUMENT PANEL WIRE 0004 1DOOR & ROOF WIRE 0005 1CABLE BOND

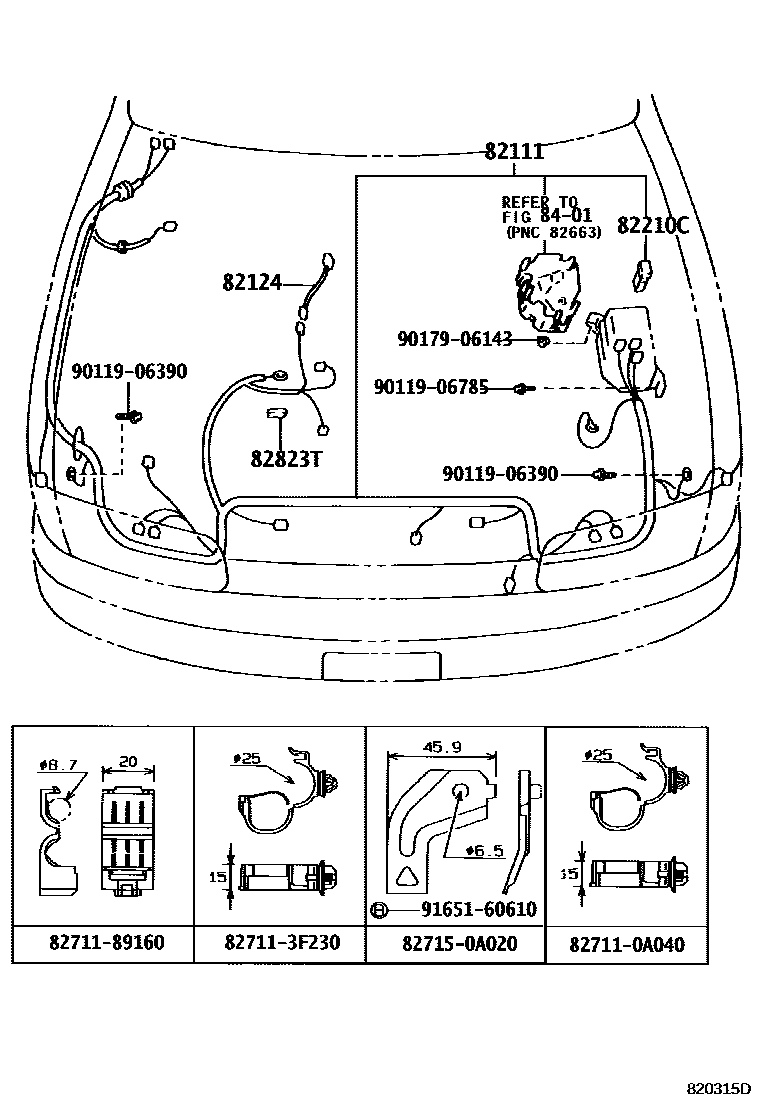

82111WIRE, ENGINE ROOM MAIN

main82111-0A010iAL50..5F199612-199910

main82111-0A020iAL50..ATM199612-199910

main82111-0A030iAL50..5F..IDN199810

main82111-0A040iAL50..4FC..IDN199810

main82111-0A050iAL50..5F..(SLI,XLI)..GEN199910

main82111-0A060iAL50..4FC..(SLI,XLI)199910

main82111-0A070iAL50..4FC..GLI..GEN199910

main82111-0A080iAL50..5F..GLI..GEN199910

82124WIRE, ENGINE, NO.4

main82124-0A010iAL50..ATM..GEN199612

main82124-0A020iAL50..4FC..IDN199810

82210CFUSIBLE LINK

main90982-08202iAL50..GEN; AL50..IDN199910

60A,TERM.:MALE,YEL

main90982-08246iAL50..GEN; AL50..IDN199910

100A,TERM.:MALE,BLUE

main90982-08280×2iAL50..GEN; AL50..IDN199910

30A,TERM.:FEMALE,PNK

main90982-08282iAL50..GEN; AL50..IDN199910

50A,TERM.:FEMALE,RED

82823TCAP, ALTERNATOR TERMINAL

main82823-22050iAL50199612

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

827110A040WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-0A040

827113F230WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3F230

8271189160WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-89160

827150A020BRACKET,WIRING HARNESS CLAMP

main82715-0A020

9011906390

main90119-06390

9011906785

main90119-06785

9017906143

main90179-06143

9165160610

main91651-60610

13 parts on this diagram · 5 diagrams in section
