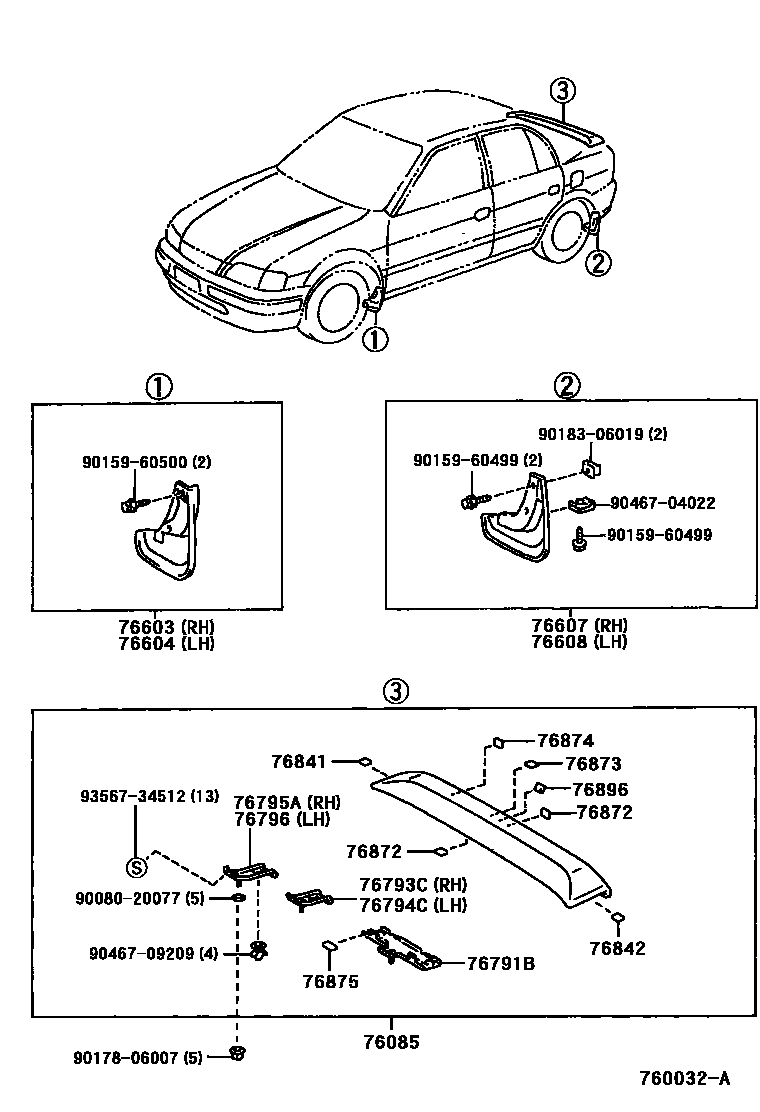

MUDGUARD & SPOILER

76085SPOILER SUB-ASSY, REAR

main76085-0A010-B0iAL50..GLI..GEN199910-200111

BLUISH SILVER ME.,1A0

main76085-0A010-B1iAL50..GLI..GEN200111-200212

SILVER ME.,1D0

main76085-0A010-D0iAL50..GLI..GEN199910-200111

RED MM,3K4

main76085-0A010-D1iAL50..GLI..GEN200111-200212

RED MC.,3M8

main76085-0A010-F0iAL50..GLI..GEN199910-200111

PL.YELLOW OP.,574

main76085-0A010-F1iAL50..GLI..GEN200111-200212

CHAMPAGNE ME.,586

main76085-0A010-G0iAL50..GLI..GEN199910-200212

DK.GREEN MC.,6Q7

main76085-0A010-J0iAL50..GLI..GEN199910-200212

BLUE MC.,8M6

main76085-0A010-K0iAL50..GLI..GEN199910-200010

GRAYISH PURPLE ME.,926

main76085-0A010-K1iAL50..GLI..GEN200010-200212

AMETHYST ME.,941

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-09130-A0iAL50..GLI..IDN200203

SUPER WHITE 4,050

main76621-09130-B0iAL50..GLI..GEN200010-200111

BLUISH SILVER ME.,1A0

main76621-09130-B1iAL50..(GLI,SLI)..GEN200111-200212

SILVER ME.,1D0

main76621-09130-D0iAL50..GLI..GEN200010-200111

RED MM,3K4

main76621-09130-D1iAL50..(GLI,SLI)..GEN200111-200212

RED MC.,3M8

main76621-09130-D2iAL50..GLI..IDN200203

RED,3E6

main76621-09130-D3iAL50..GLI..IDN200203

RED MC.,3H4

main76621-09130-E0iAL50..GLI..IDN200203

BEIGE ME.,4M9

main76621-09130-F0iAL50..GLI..GEN200010-200111

PL.YELLOW OP.,574

main76621-09130-F1iAL50..(GLI,SLI)..GEN200111-200212

CHAMPAGNE ME.,586

main76621-09130-G0iAL50..GLI..GEN200010-200111

DK.GREEN MC.,6Q7

main76621-09130-G1iAL50..GLI..IDN200203

BLUISH GREEN ME.,6P1

main76621-09130-H0iAL50..GLI..IDN200203

TURQUOISE M.M.,746

main76621-09130-J0iAL50..GLI..GEN200010-200111

BLUE MC.,8M6

main76621-09130-J1iAL50..GLI..IDN200203

STRONG BLUE M,8B6

main76621-09130-J2iAL50..GLI..IDN200203

PURPLISH BLUE M.M.,8K9

main76621-09130-K0iAL50..GLI..GEN200010-200111

AMETHYST ME.,941

main76621-19265iAL50..GLI..IDN200111-200203

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-09130-A0iAL50..GLI..IDN200203

SUPER WHITE 4,050

main76622-09130-B0iAL50..GLI..GEN200010-200111

BLUISH SILVER ME.,1A0

main76622-09130-B1iAL50..(GLI,SLI)..GEN200111-200212

SILVER ME.,1D0

main76622-09130-D0iAL50..GLI..GEN200010-200111

RED MM,3K4

main76622-09130-D1iAL50..(GLI,SLI)..GEN200111-200212

RED MC.,3M8

main76622-09130-D2iAL50..GLI..IDN200203

RED,3E6

main76622-09130-D3iAL50..GLI..IDN200203

RED MC.,3H4

main76622-09130-E0iAL50..GLI..IDN200203

BEIGE ME.,4M9

main76622-09130-F0iAL50..GLI..GEN200010-200111

PL.YELLOW OP.,574

main76622-09130-F1iAL50..(GLI,SLI)..GEN200111-200212

CHAMPAGNE ME.,586

main76622-09130-G0iAL50..GLI..GEN200010-200111

DK.GREEN MC.,6Q7

main76622-09130-G1iAL50..GLI..IDN200203

BLUISH GREEN ME.,6P1

main76622-09130-H0iAL50..GLI..IDN200203

TURQUOISE M.M.,746

main76622-09130-J0iAL50..GLI..GEN200010-200111

BLUE MC.,8M6

main76622-09130-J1iAL50..GLI..IDN200203

STRONG BLUE M,8B6

main76622-09130-J2iAL50..GLI..IDN200203

PURPLISH BLUE M.M.,8K9

main76622-09130-K0iAL50..GLI..GEN200010-200111

AMETHYST ME.,941

main76622-19265iAL50199804-199810

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-09160-A0iAL50..GLI..IDN200203

SUPER WHITE 4,050

main76625-09160-B0iAL50..GLI..GEN200010-200111

BLUISH SILVER ME.,1A0

main76625-09160-B1iAL50..(GLI,SLI)..GEN200111-200212

SILVER ME.,1D0

main76625-09160-D0iAL50..GLI..GEN200010-200111

RED MM,3K4

main76625-09160-D1iAL50..(GLI,SLI)..GEN200111-200212

RED MC.,3M8

main76625-09160-D2iAL50..GLI..IDN200203

RED,3E6

main76625-09160-D3iAL50..GLI..IDN200203

RED MC.,3H4

main76625-09160-E0iAL50..GLI..IDN200203

BEIGE ME.,4M9

main76625-09160-F0iAL50..GLI..GEN200010-200111

PL.YELLOW OP.,574

main76625-09160-F1iAL50..(GLI,SLI)..GEN200111-200212

CHAMPAGNE ME.,586

main76625-09160-G0iAL50..(GLI,SLI)..GEN200111-200212

DK.GREEN MC.,6Q7

main76625-09160-G1iAL50..GLI..IDN200203

BLUISH GREEN ME.,6P1

main76625-09160-H0iAL50..GLI..IDN200203

TURQUOISE M.M.,746

main76625-09160-J0iAL50..(GLI,SLI)..GEN200111-200212

BLUE MC.,8M6

main76625-09160-J1iAL50..GLI..IDN200203

STRONG BLUE M,8B6

main76625-09160-J2iAL50..GLI..IDN200203

PURPLISH BLUE M.M.,8K9

main76625-09160-K0iAL50..(GLI,SLI)..GEN200111-200212

AMETHYST ME.,941

main76625-19525iAL50..GLI,SLI;AL50..(3FC,5F)..XLI199804-199910

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-09160-A0iAL50..GLI..IDN200203

SUPER WHITE 4,050

main76626-09160-B0iAL50..GLI..GEN200010-200111

BLUISH SILVER ME.,1A0

main76626-09160-B1iAL50..(GLI,SLI)..GEN200111-200212

SILVER ME.,1D0

main76626-09160-D0iAL50..GLI..GEN200010-200111

RED MM,3K4

main76626-09160-D1iAL50..(GLI,SLI)..GEN200111-200212

RED MC.,3M8

main76626-09160-D2iAL50..GLI..IDN200203

RED,3E6

main76626-09160-D3iAL50..GLI..IDN200203

RED MC.,3H4

main76626-09160-E0iAL50..GLI..IDN200203

BEIGE ME.,4M9

main76626-09160-F0iAL50..GLI..GEN200010-200111

PL.YELLOW OP.,574

main76626-09160-F1iAL50..(GLI,SLI)..GEN200111-200212

CHAMPAGNE ME.,586

main76626-09160-G0iAL50..GLI..GEN200010-200111

DK.GREEN MC.,6Q7

main76626-09160-G1iAL50..GLI..IDN200203

BLUISH GREEN ME.,6P1

main76626-09160-H0iAL50..GLI..IDN200203

TURQUOISE M.M.,746

main76626-09160-J0iAL50..GLI..GEN200010-200111

BLUE MC.,8M6

main76626-09160-J1iAL50..GLI..IDN200203

STRONG BLUE M,8B6

main76626-09160-J2iAL50..GLI..IDN200203

PURPLISH BLUE M.M.,8K9

main76626-09160-K0iAL50..(GLI,SLI)..GEN200111-200212

AMETHYST ME.,941

main76626-19525iAL50..GLI,SLI199910-200010

76791BBRACKET, REAR SPOILER

main76791-0A010iAL50..GLI..GEN199910

76793CBRACKET, REAR SPOILER, NO.2 RH

main76793-0A010iAL50..GLI..GEN199910

76794CBRACKET, REAR SPOILER, NO.2 LH

main76794-0A010iAL50..GLI..GEN199910

76795ABRACKET, REAR SPOILER, NO.3 RH

main76795-0A010iAL50..GLI..GEN199910

76796BRACKET, REAR SPOILER, NO.3 LH

main76796-0A010iAL50..GLI..GEN199910

76841PROTECTOR, REAR SPOILER SIDE, NO.5 RH

main76841-0A010iAL50..GLI..GEN199910

76842PROTECTOR, REAR SPOILER SIDE, NO.5 LH

main76842-0A010iAL50..GLI..GEN199910

76872PROTECTOR, REAR SPOILER, NO.1

main76872-0A010iAL50..GLI..GEN199910

76873PROTECTOR, REAR SPOILER, NO.2

main76873-0A010iAL50..GLI..GEN199910

76874PROTECTOR, REAR SPOILER, NO.3

main76874-0A010×2iAL50..GLI..GEN199910

76875PROTECTOR, REAR SPOILER, NO.4

main76875-0A010×2iAL50..GLI..GEN199910

76896PROTECTOR, REAR SPOILER, NO.6

main76896-0A010×8iAL50..GLI..GEN199910

9008020077

main90080-20077

9015960499

main90159-60499

9015960500

main90159-60500

9017806007

main90178-06007

9018306019

main90183-06019

9046704022

main90467-04022

9046709209

main90467-09209

9356734512

main93567-34512

25 parts on this diagram · 1 diagram in section
