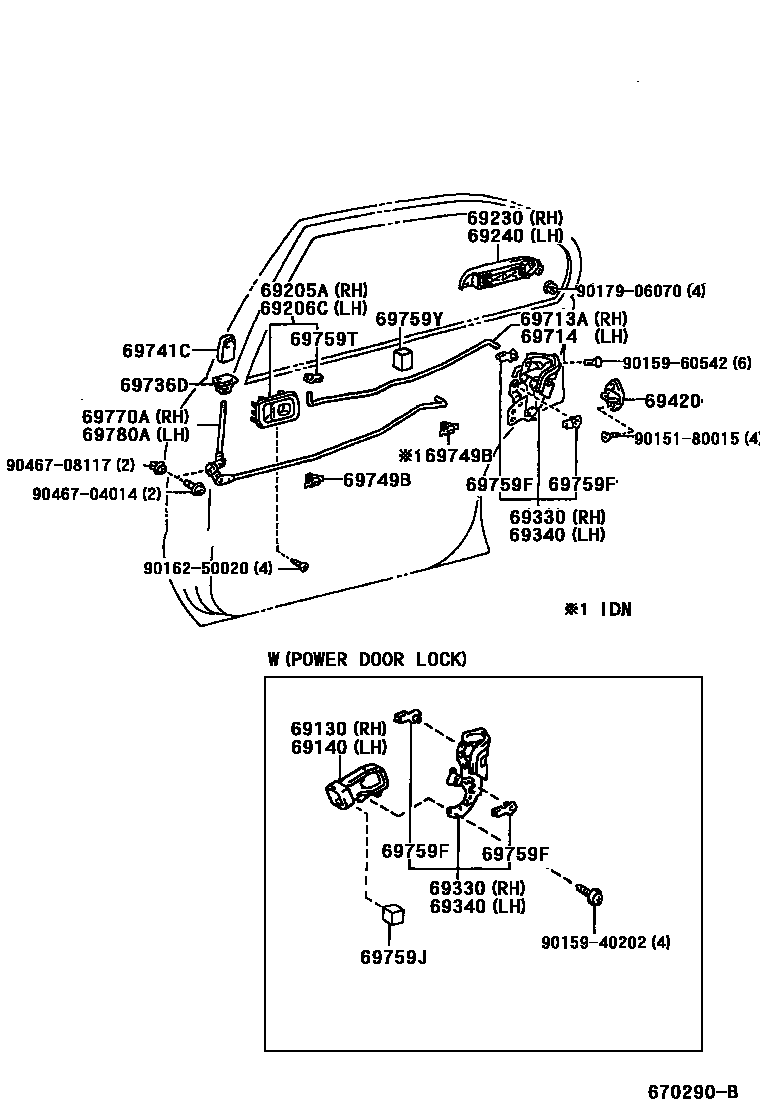

REAR DOOR LOCK & HANDLE
69130ACTUATOR ASSY, REAR DOOR LOCK, RH
69140ACTUATOR ASSY, REAR DOOR LOCK, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLUISH GRAY,TRIM1#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLUISH GRAY,TRIM1#
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
SUPER WHITE 4,050
BLUISH SILVER ME.,1A0
SILVER ME.,1D0
RED MM,3K4
RED,3E6
RED MC,3H4
RED MC.,3M8
FLAXEN MM,4M7
BEIGE ME.,4M9
PL.YELLOW OP,574
CHAMPAGNE ME.,586
BLUISH GREEN ME.,6P1
DK.GREEN MC.,6Q7
TURQUOISE M,741
TURQUOISE M.M,746
DK.BLUE M.M.,8L2
STRONG BLUE M,8B6
PURPLISH BLUE M.M.,8K9
BLUE MC.,8M6
GRAYISH PURPLE ME.,926
AMETHYST ME.,941
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
SUPER WHITE 4,050
BLUISH SILVER ME.,1A0
SILVER ME.,1D0
RED MM,3K4
RED,3E6
RED MC,3H4
RED MC.,3M8
FLAXEN MM,4M7
BEIGE ME.,4M9
PL.YELLOW OP,574
CHAMPAGNE ME.,586
BLUISH GREEN ME.,6P1
DK.GREEN MC.,6Q7
TURQUOISE M,741
TURQUOISE M.M,746
DK.BLUE M.M.,8L2
STRONG BLUE M,8B6
PURPLISH BLUE M.M.,8K9
BLUE MC.,8M6
GRAYISH PURPLE ME.,926
AMETHYST ME.,941
69330LOCK ASSY, REAR DOOR, RH
69340LOCK ASSY, REAR DOOR, LH
69420PLATE ASSY, REAR DOOR LOCK STRIKER
69713ALINK, REAR DOOR LOCK REMOTE CONTROL, RH
69714LINK, REAR DOOR LOCK REMOTE CONTROL, LH
69736DGUIDE, REAR DOOR LOCKING LINK
69741CKNOB, REAR DOOR LOCK CONTROL
69749BCLAMP, REAR DOOR LOCK LINK
69759JSILENCER, DOOR LOCK LINK
69759TSNAP, REAR DOOR INSIDE HANDLE
RH
LH
LH
RH
69759YSILENCER, REAR DOOR LOCK LINK
69770ALINK ASSY, REAR DOOR INSIDE LOCKING, RH
69780ALINK ASSY, REAR DOOR INSIDE LOCKING, LH
9015180015
main90151-80015
9015940202
main90159-40202
9015960542
main90159-60542
9016250020
main90162-50020
9017906070
main90179-06070
9046704014
main90467-04014
9046708117
main90467-08117
27 parts on this diagram · 1 diagram in section
