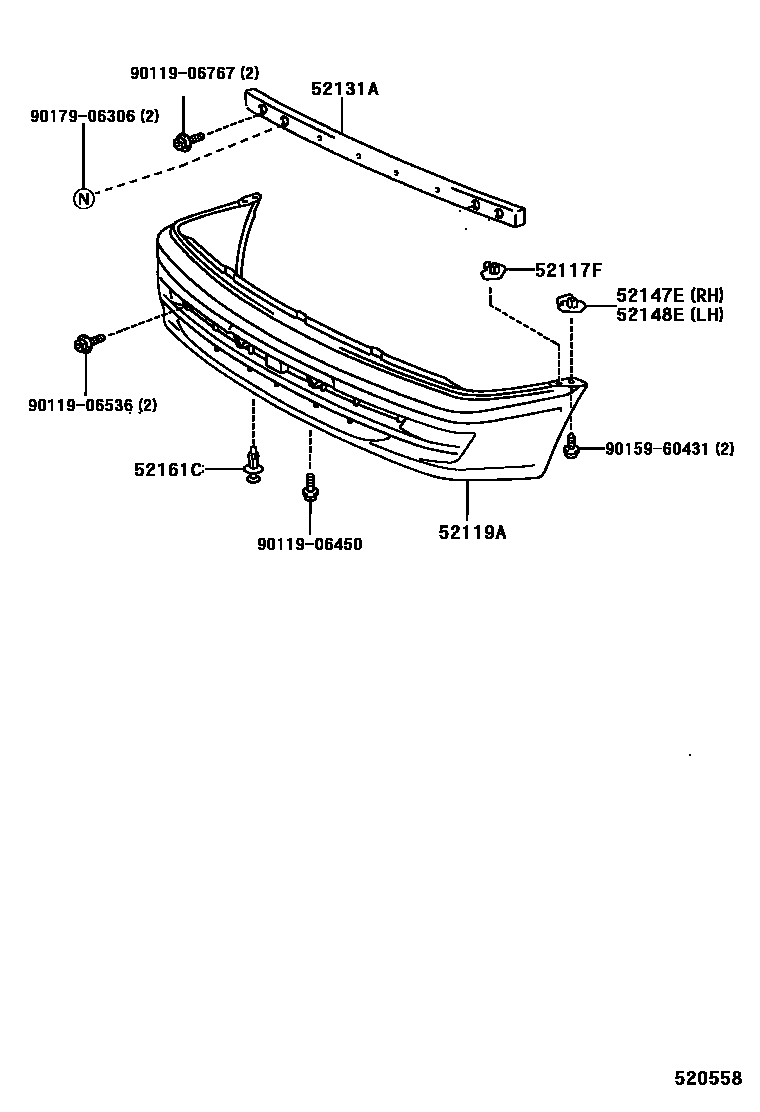

FRONT BUMPER & BUMPER STAY

52117FSUPPORT, FRONT BUMPER, UPPER

main52117-16020×2iAL50199612

52119ACOVER, FRONT BUMPER

main52119-0A010iAL50..GLI199612-199804

main52119-0A030iAL50..IDN200003-200104

main52119-0A900iAL50..GEN199910-200104

main52119-0A960iAL50200104

52131AREINFORCEMENT, FRONT BUMPER

main52131-16100iAL50..GEN199910

52147EBRACKET, FRONT BUMPER MOUNTING, RH

main52147-16080iAL50199612

52148EBRACKET, FRONT BUMPER MOUNTING, LH

main52147-16080iAL50199612

52161CPIECE, FRONT BUMPER

main52161-16010×2iAL50199612

9011906450

main90119-06450

9011906536

main90119-06536

9011906767

main90119-06767

9015960431

main90159-60431

9017906306

main90179-06306

11 parts on this diagram · 1 diagram in section
