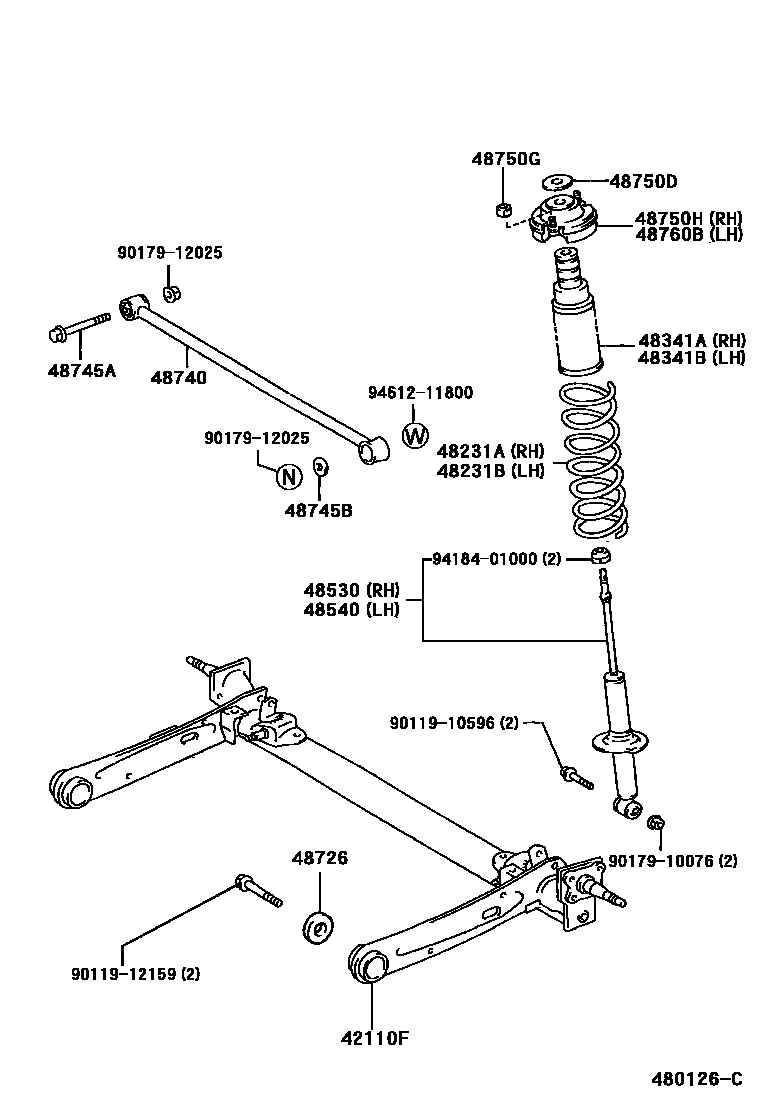

REAR SPRING & SHOCK ABSORBER

42110FBEAM ASSY, REAR AXLE

main42110-0A010iAL50199612-199910

main42110-0A020iAL50..GLI..GEN199910

48231ASPRING, COIL, REAR RH

main48231-0A010iAL50199612-199910

main48231-0A020iAL50..IDN199810

main48231-0A030iAL50..GEN199910

48231BSPRING, COIL, REAR LH

main48231-0A010iAL50199612-199910

main48231-0A020iAL50..IDN199810

main48231-0A030iAL50..GEN199910

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-0A010iAL50199612

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-0A010iAL50199612

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-09150iAL50199612-199910

main48530-09240iAL50..IDN200003

main48530-09280iAL50..GEN199910

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-09150iAL50199612-199910

main48530-09240iAL50..IDN200003

main48530-09280iAL50..GEN199910

48726SEAT, REAR SUSPENSION ARM

main48726-16010×2iAL50199810

48740ROD ASSY, REAR LATERAL CONTROL

main48740-16080iAL50199612

48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)

main90105-12070iAL50199612

48745BWASHER, LATERAL CONTROL ROD CUSHION

main90201-12037iAL50199612

48750DRETAINER(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)

main90948-02082×2iAL50199612

48750GNUT(FOR REAR SUSPENSION SUPPORT)

main90178-08007×4iAL50199910

main90179-08122×4iAL50199612-199910

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-0A010iAL50199612-199910

main48750-0A020iAL50199910

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-0A010iAL50199612-199910

main48750-0A020iAL50199910

9011910596

main90119-10596

9011912159

main90119-12159

9017910076

main90179-10076

9017912025

main90179-12025

9418401000

main94184-01000

9461211800

main94612-11800

21 parts on this diagram · 1 diagram in section
