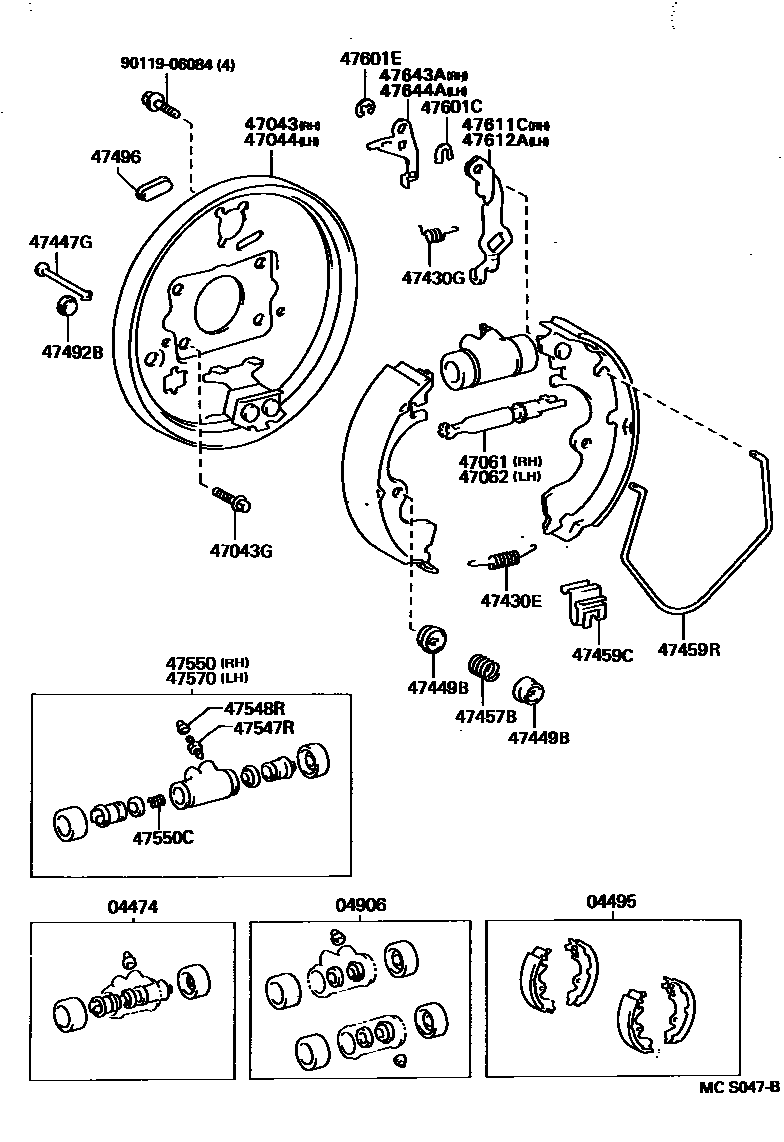

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04474CYLINDER KIT, REAR WHEEL

main04474-0A010iAL50199807

main04474-16020iAL50199612-199807

04495SHOE KIT, REAR BRAKE

main04495-0A010iAL50199807

MARK NBK LN512

main04495-10120iAL50199612-199807

04906CUP KIT, REAR WHEEL CYLINDER

main04906-0A010iAL50199807

main04906-16020iAL50199612-199807

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-0A010iAL50199807-199910

sub47043-10050

main47043-0A020iAL50..GLI..GEN199910

sub47043-10070

main47043-10050iAL50199612-199807

47043GBOLT (FOR BACKING PLATE TO REAR AXLE BEAM SETTING)

main90119-10455iAL50199612

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-0A010iAL50199807-199910

sub47044-10050

main47044-0A020iAL50..GLI..GEN199910

sub47044-10070

main47044-10050iAL50199612-199807

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-10020iAL50199612

47062STRUT SET, PARKING BRAKE SHOE, LH

main47062-10020iAL50199612

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90080-50237iAL50199807-199810

main90506-18014iAL50199612-199905

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90080-50236iAL50199807-199810

main90507-12020iAL50199612-199905

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-30020iAL50199612

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-0A010iAL50199807

main47449-30030iAL50199612-199807

47457BSPRING, COMPRESSION(FOR REAR SHOE HOLD DOWN SPRING PIN)

main90080-50238iAL50199807-199810

main90501-14086iAL50199612-199905

47459CCLIP(FOR SHOE RETURN SPRING)

main90468-05063iAL50199612

47459RSPRING, SHOE RETURN(FOR REAR BRAKE)

main47459-16020iAL50199612

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-0A010iAL50199807

main47492-32010iAL50199612-199807

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-04010iAL50199807

main47491-20011iAL50199612-199807

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010iAL50199612

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iAL50199612-200105

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-0A010iAL50199807

main47550-16060iAL50199612-199807

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90027-60001iAL50199612

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-0A010iAL50199807

main47570-16040iAL50199612-199807

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013iAL50199612

T=1.2

47601ERING, E(FOR REAR BRAKE)

main96160-00600iAL50199612

47611CLEVER, PARKING BRAKE SHOE, RH

main47611-0A010iAL50199807

main47611-10030iAL50199612-199807

47612ALEVER, PARKING BRAKE SHOE, LH

main47612-0A010iAL50199807

main47612-10030iAL50199612-199807

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-0A010iAL50199807

main47643-10020iAL50199612-199807

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-0A010iAL50199807

main47644-10020iAL50199612-199807

9011906084

main90119-06084

29 parts on this diagram · 1 diagram in section
