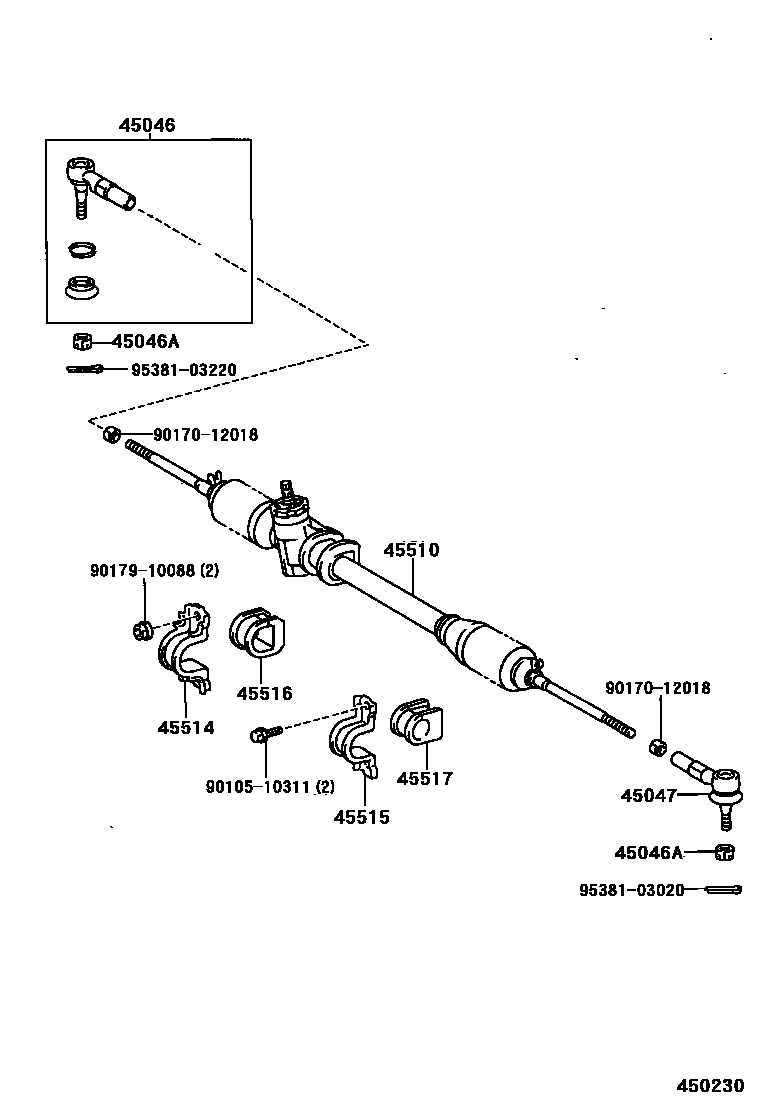

FRONT STEERING GEAR & LINK

0001 1 0002 1W(POWER STEERING) 0003 1 0004 1W(POWER STEERING)

45046END SUB-ASSY, TIE ROD, RH

main45046-09140iAL50..GLI;AL50..5F..XLI200009-200010

W(POWER STEERING)

main45046-09150iAL50..(SLI,XLI)..GEN200009-200010

main45046-19206iAL50..(SLI,XLI)..GEN199612-200009

main45046-19216iAL50..GLI199612-199910

main45046-19216iAL50..GLI;AL50..5F..XLI199910-200009

W(POWER STEERING)

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iAL50199612

45047END SUB-ASSY, TIE ROD, LH

main45046-09140iAL50..GLI;AL50..5F..XLI200009-200010

W(POWER STEERING)

main45046-09150iAL50..XLI..GEN200009-200010

main45046-19206iAL50..5F;AL50..3FC..XLI199612-200009

main45046-19216iAL50..GLI;AL50..5F..XLI199910-200009

W(POWER STEERING)

main45046-19216iAL50..GLI199612-199910

45510GEAR ASSY, STEERING

main45510-0A010iAL50..XLI199804-199910

(J)

main45510-0A010iAL50..5F;AL50..3FC..XLI199612-199804

main45510-0A011iAL50..SLI,XLI199810-199910

(L)

main45510-0A011iAL50..(SLI,XLI)..GEN199910-200010

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-16050iAL50..5F;AL50..3FC..XLI199612-200010

main45514-16060iAL50..3FC..GLI199612-199707

main45514-16061iAL50..GLI199707-199910

main45514-16061iAL50..GLI;AL50..5F..XLI199910

W(POWER STEERING)

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-10050iAL50..(SLI,XLI)..GEN199612-200010

main45515-16060iAL50..3FC..GLI199612-199910

main45515-16060iAL50..GLI;AL50..5F..XLI199910

W(POWER STEERING)

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-0A010iAL50..(SLI,XLI)..GEN199612-200010

main45516-16060iAL50..3FC..GLI199612-199910

main45516-16060iAL50..GLI;AL50..5F..XLI199910

W(POWER STEERING)

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-0A010iAL50..XLI..GEN199612-200010

main45517-10070iAL50..3FC..GLI199612-199910

main45517-10070iAL50..GLI;AL50..5F..XLI199910

W(POWER STEERING)

9010510311

main90105-10311

9017012018

main90170-12018

9017910088

main90179-10088

9538103020

main95381-03020

9538103220

main95381-03220

13 parts on this diagram · 4 diagrams in section
