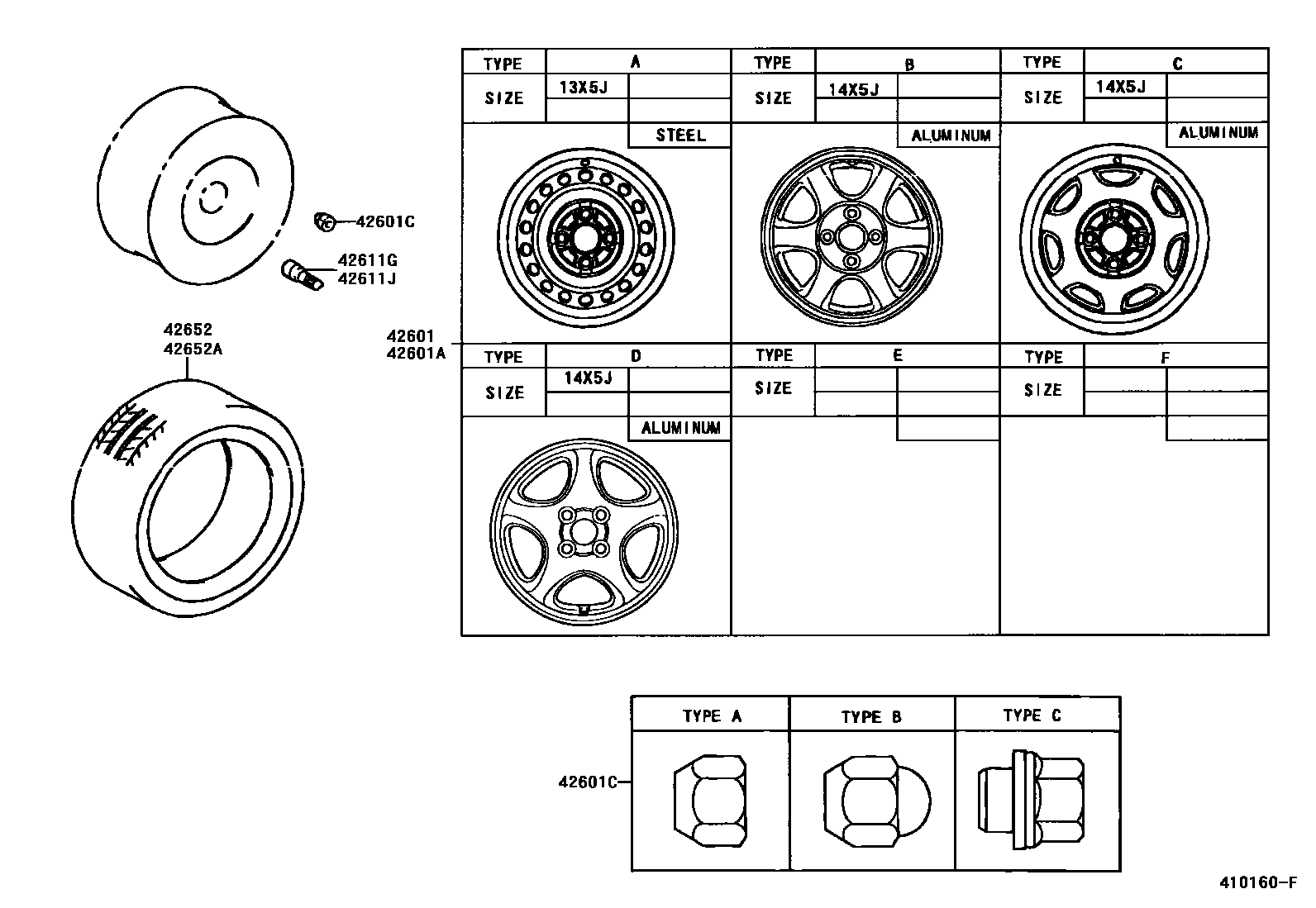

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1 0004 1

42601WHEEL, DISC

main42611-0A020×4iAL50..XLI..IDN200003

13X5J,TYPE A:REFER TO ILLUSTRATION

main42611-0A030×4iAL50..XLI199612-199810

13X4.5J,TYPE A:REFER TO ILLUSTRATION

main42611-0A040×4iAL50..GLI199612-199710

13X5J,TYPE B:REFER TO ILLUSTRATION

main42611-0A050×4iAL50..(GLI,SLI)..GEN199910

13X5J,TYPE A:REFER TO ILLUSTRATION

main42611-0A060×4iAL50..XLI..GEN199910

13X5J,TYPE A:REFER TO ILLUSTRATION

main42611-0A070×4iAL50..GLI..IDN200003-200203

14X5J,TYPE B:REFER TO ILLUSTRATION

main42611-0A080×4iAL50..GLI..GEN199810-200010

14X5J,TYPE D:REFER TO ILLUSTRATION

main42611-0A100×4iAL50..GLI..IDN200203

14X5J

main42611-0A120×4iAL50..GLI..GEN200010

14X5J,TYPE D:REFER TO ILLUSTRATION

42601AWHEEL, DISC (FOR SPARE)

main42611-0A020iAL50..XLI..IDN200003

13X5J,TYPE A:REFER TO ILLUSTRATION

main42611-0A030iAL50..XLI199612-199810

13X4.5J,TYPE A:REFER TO ILLUSTRATION

main42611-0A040iAL50..GLI199612-199710

13X5J,TYPE B:REFER TO ILLUSTRATION

main42611-0A050iAL50..(GLI,SLI)..GEN199910

13X5J,TYPE A:REFER TO ILLUSTRATION

main42611-0A060iAL50..4FC..XLI199810-199910

13X5J,TYPE C:REFER TO ILLUSTRATION

main42611-0A070iAL50..GLI..IDN200003-200203

14X5J,TYPE B:REFER TO ILLUSTRATION

main42611-0A080iAL50..GLI..GEN199810-200010

14X5J,TYPE D:REFER TO ILLUSTRATION

main42611-0A090iAL50..GLI..GEN200010

14X5J,TYPE C:REFER TO ILLUSTRATION

main42611-0A100iAL50..GLI..IDN200203

14X5J

42601CNUT, HUB (FOR AXLE)

main90080-94032×16iAL50..XLI..GEN199612

TYPE B:REFER TO ILLUSTRATION

main90942-01007×16iAL50199710-199810

TYPE A:REFER TO ILLUSTRATION

main90942-01033×16iAL50..GLI..GEN200010-200203

TYPE C:REFER TO ILLUSTRATION

main90942-01062×16iAL50..GLI..IDN200010-200203

TYPE C:REFER TO ILLUSTRATION

42611GVALVE (FOR TUBELESS TIRE)

main90080-94031×4iAL50..4FC;AL50..5F..(GLI,SLI)199810-199910

main90080-94059×4iAL50..IDN200003

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90080-94031iAL50199612-199810

main90080-94059iAL50..IDN200003

42652TIRE

main42652-0A040×4iAL50..GLI199612-199710

175/70R13 82T

42652ATIRE (FOR SPARE)

main42652-0A040iAL50..GLI199612-199710

175/70R13 82T

7 parts on this diagram · 4 diagrams in section
