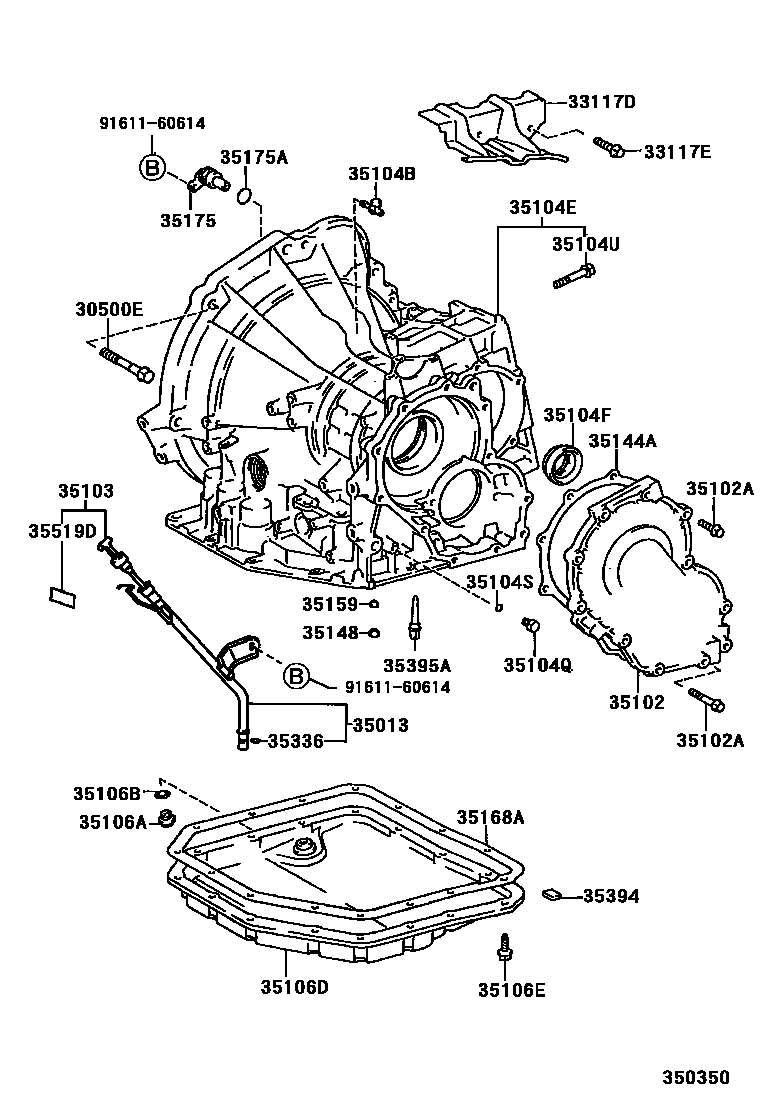

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A131L 0002 1A240L

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-10077iAL50..ATM199612

*10-1.25PX43-26

main90119-12168iAL50..ATM199612

*12-1.25PX55-30

main91612-41025×3iAL50..ATM199612

*10-1.25PX25-25

main91619-61245×2iAL50..ATM199612

*12-1.25PX45-30

33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE

main33117-12030iAL50..4FC199810

main33117-12040iAL50..3FC199612-199810

33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)

main90105-08040×2iAL50..ATM199612

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-16050iAL50..3FC199612-199810

main35013-16120iAL50..4FC199810-199908

main35013-16130iAL50..4FC199908

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-10011iAL50..3FC199612-199810

main35102-16031iAL50..4FC199810

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08050×9iAL50..3FC199612-199810

*8-1.25PX28-28

main90105-08056×2iAL50..3FC199612-199810

*8-1.25PX40-40

main90105-08065×10iAL50..4FC199810-200307

*8-1.25PX45-35

main90105-08068×3iAL50..4FC199810-200307

*8-1.25PX35-30

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-16070iAL50..3FC199612-199810

main35103-16120iAL50..4FC199810

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03089iAL50..3FC199612-199810

main90930-03101iAL50..4FC199810-200307

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-16070iAL50..3FC199612-199810

35104FSEAL, OIL (FOR TRANSAXLE CASE)

main90311-34012iAL50..3FC199612-199803

main90311-34013iAL50..4FC199810-199908

main90311-34023iAL50..3FC199803-199810

main90311-34026iAL50..4FC199908-200307

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×2iAL50..3FC199612-199810

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196×2iAL50..3FC199612-199810

35104UBOLT (FOR TRANSAXLE CASE)

main90105-10008×2iAL50..3FC199612-199810

*10-1.25PX53-26

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iAL50..4FC199810-200307

main90341-18016iAL50..3FC199612-199810

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iAL50..4FC199810-200307

main90430-18008iAL50..3FC199612-199810

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-10022iAL50..3FC199612-199810

main35106-12070iAL50..4FC200001-200307

main35106-12110iAL50..4FC199810-200001

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×18iAL50..4FC199810-200307

35144AGASKET, TRANSAXLE REAR COVER

main35144-12020iAL50..3FC199612-199808

main35144-12030iAL50..3FC199808-199810

35148GASKET, GOVERNOR APPLY, NO.1

main35148-16010iAL50..ATM199612-200307

35159GASKET, BRAKE DRUM

main35159-20010iAL50..4FC199810-200307

main35159-32011iAL50..3FC199612-199810

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-12020iAL50..4FC199810-200112

main35168-12080iAL50..4FC200112-200307

main35168-32010iAL50..3FC199612-199810

35175CAP, TRANSAXLE CASE, NO.2

main35175-32010iAL50..3FC199612-199810

35175ARING, O (FOR TRANSAXLE CASE CAP)

main90301-21002iAL50..3FC199612-199810

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iAL50..ATM199612

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×2iAL50..ATM199612-200307

35395ASTRAINER, GOVERNOR OIL

main35395-12020iAL50..4FC199810-200307

main35395-32030iAL50..3FC199612-199810

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-32040iAL50..3FC199612-199810

9161160614

main91611-60614

28 parts on this diagram · 2 diagrams in section
