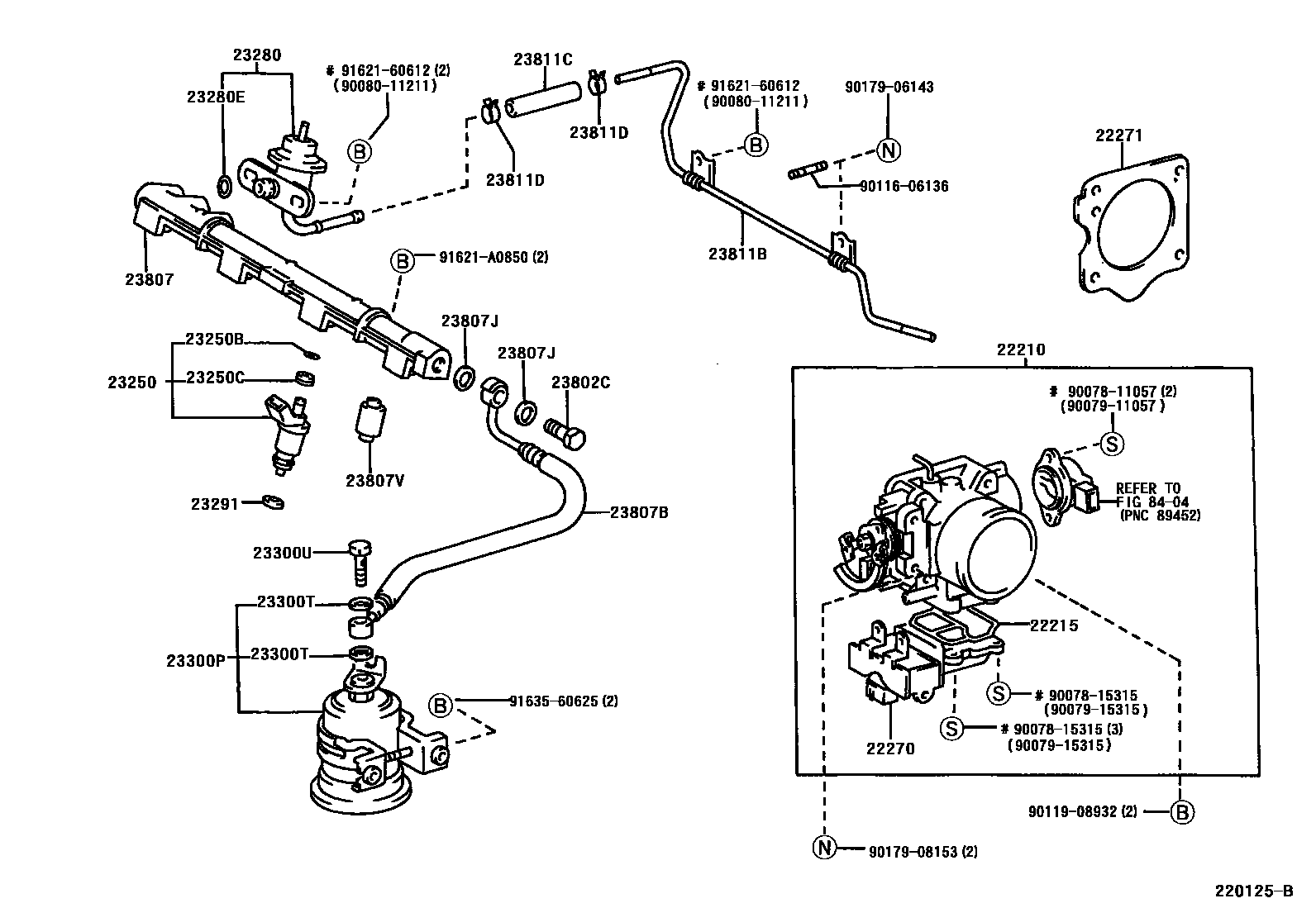

FUEL INJECTION SYSTEM
22210BODY ASSY, THROTTLE
22215GASKET, THROTTLE BODY COVER
(L)
(J)
22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
(L)
(J)
22271GASKET, THROTTLE BODY
(L)
(J)
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23280REGULATOR ASSY, FUEL PRESSURE
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
23300TGASKET(FOR FUEL FILTER)
23300UBOLT, UNION(FOR FUEL FILTER)
23802CBOLT, UNION(FOR FUEL PIPE NO.2)
23807PIPE SUB-ASSY, FUEL DELIVERY
23807BHOSE, FUEL DELIVERY PIPE
23807JGASKET, PIPE FUEL DELIVARY INLET
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23811BPIPE, FUEL, NO.1
23811CHOSE, FUEL(FOR FUEL PIPE TO PRESSURE REGULATOR)
L=60
23811DCLIP, HOSE(FOR FUEL HOSE)
8404ELECTRONIC FUEL INJECTION SYSTEM
9007811057
main90078-11057
9007815315
main90078-15315
9007911057
main90079-11057
9007915315
main90079-15315
9008011211
main90080-11211
9011606136
main90116-06136
9011908932
main90119-08932
9017906143
main90179-06143
9017908153
main90179-08153
9162160612
main91621-60612
91621A0850
main91621-A0850
9163560625
main91635-60625
34 parts on this diagram · 2 diagrams in section
