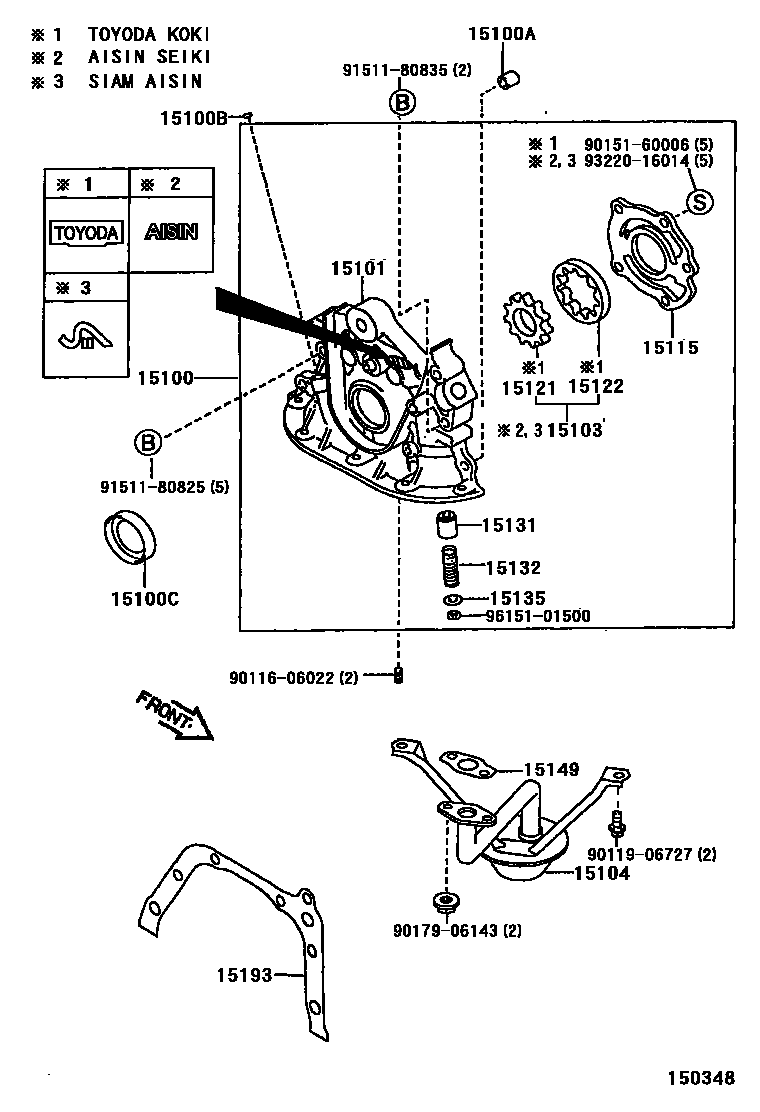

ENGINE OIL PUMP
15100PUMP ASSY, OIL
SIAM AISIN
AISIN SEIKI
15100APIN, RING(FOR OIL PUMP SET)
15100BRING, O(FOR OIL PUMP)
15100CSEAL(FOR OIL PUMP)
15101BODY SUB-ASSY, OIL PUMP
SIAM AISIN
AISIN SEIKI
TOYODA KOKI
15103GEAR SET, OIL PUMP
SIAM AISIN
AISIN SEIKI
15104STRAINER SUB-ASSY, OIL
15115COVER, OIL PUMP
SIAM AISIN
AISIN SEIKI
TOYODA KOKI
15121GEAR, OIL PUMP DRIVE
15122GEAR, OIL PUMP DRIVEN
15131VALVE, OIL PUMP RELIEF
TOYODA KOKI
AISIN SEIKI
15132SPRING, OIL PUMP RELIEF VALVE
SIAM AISIN
TOYODA KOKI
AISIN SEIKI
15135RETAINER, OIL PUMP RELIEF VALVE
SIAM AISIN
AISIN SEIKI
TOYODA KOKI
15149GASKET, OIL STRAINER FLANGE
(L)
(J)
15193GASKET, OIL PUMP
(L)
(J)
(J)
9011606022
main90116-06022
9011906727
main90119-06727
9015160006
main90151-60006
9017906143
main90179-06143
9151180825
main91511-80825
9151180835
main91511-80835
9322016014
main93220-16014
9615101500
main96151-01500
23 parts on this diagram · 1 diagram in section
