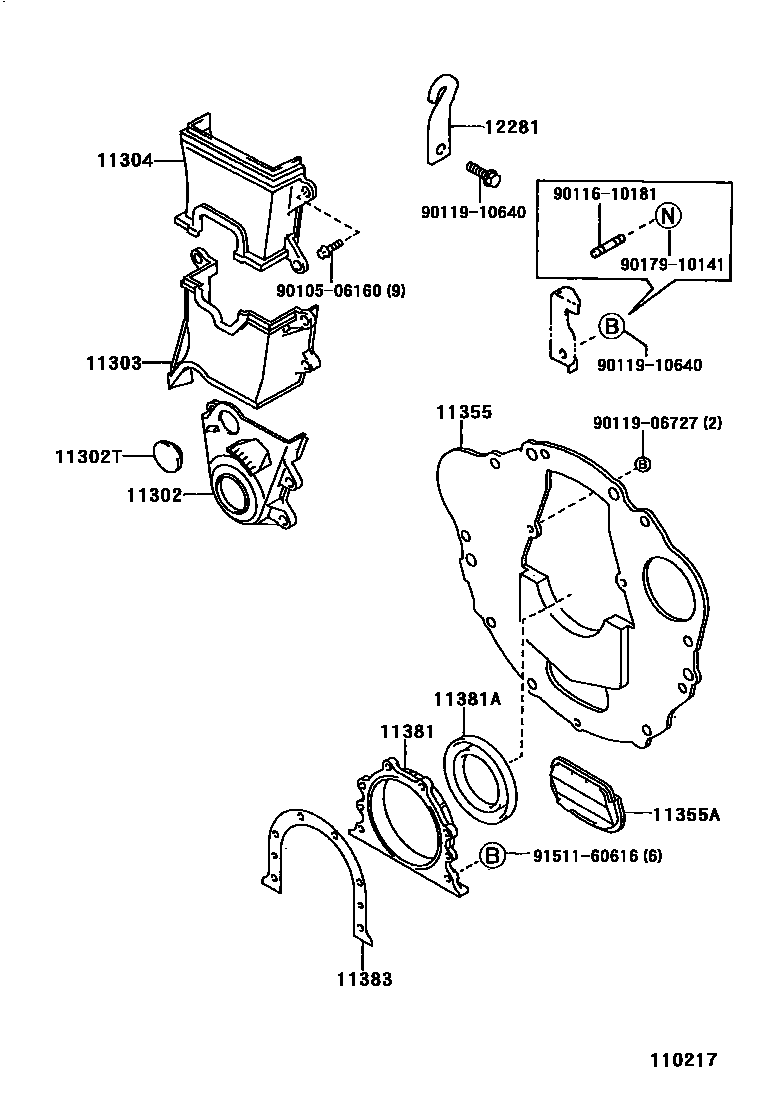

TIMING GEAR COVER & REAR END PLATE
11302COVER SUB-ASSY, TIMING CHAIN OR BELT
(L)
(J)
11302TPLUG, HOLE
(L)
(J)
11303COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY
(L)
(J)
11304COVER, TIMING CHAIN OR BELT, NO.2
(L)
(J)
11355PLATE, REAR END
(L)
(L)
(J)
(J)
11355APLUG, HOLE(FOR REAR END PLATE)
11381RETAINER, ENGINE REAR OIL SEAL
11381ASEAL, ENGINE REAR OIL
11383GASKET, ENGINE REAR OIL SEAL RETAINER
(J)
12281HANGER, ENGINE, NO.1
9010506160
main90105-06160
9011610181
main90116-10181
9011906727
main90119-06727
9011910640
main90119-10640
9017910141
main90179-10141
9151160616
main91511-60616
16 parts on this diagram · 1 diagram in section
