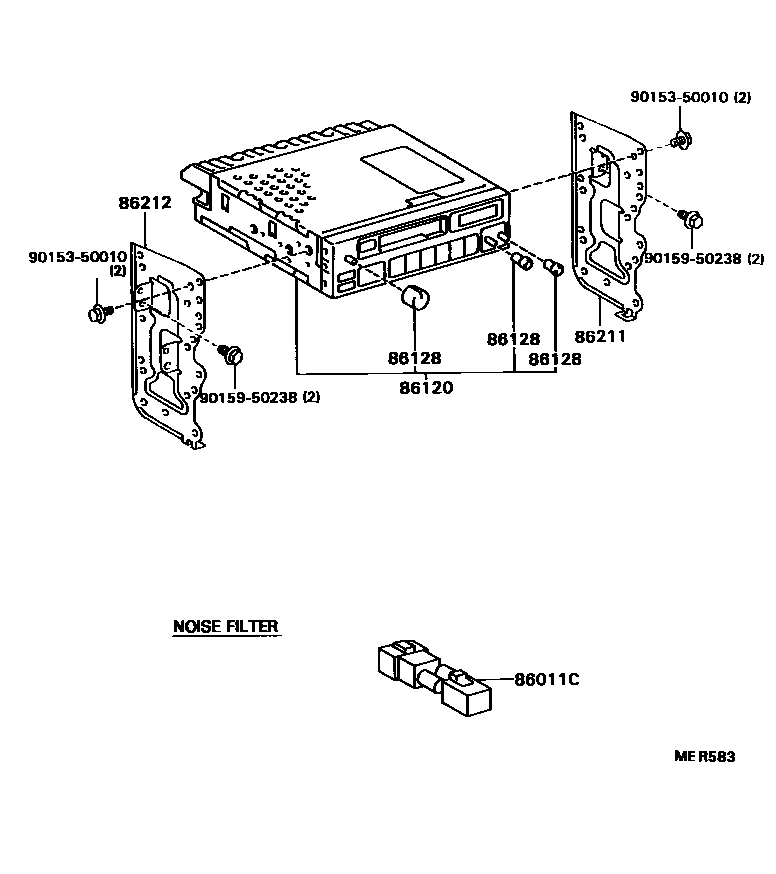

RADIO RECEIVER & AMPLIFIER & CONDENSER

86011CFILTER, NOISE

main90980-05175iEL44199104-199208

main90980-05270iEL44199208-199210

86120RECEIVER ASSY, RADIO

main86120-12730iEL44199104-199202

86128KNOB, RADIO RECEIVER

main86128-12300iEL44199104-199202

PWR/VOL

main86128-20080×2iEL44199104-199202

BAL/FADE,BASS/TREB

86211BRACKET, RADIO, NO.1

main86211-16240iEL44199104-199208

main86211-16250iEL44199208-199508

86212BRACKET, RADIO, NO.2

main86212-16240iEL44199104-199208

main86212-16250iEL44199208-199508

9015350010

main90153-50010

9015950238

main90159-50238

7 parts on this diagram · 1 diagram in section
