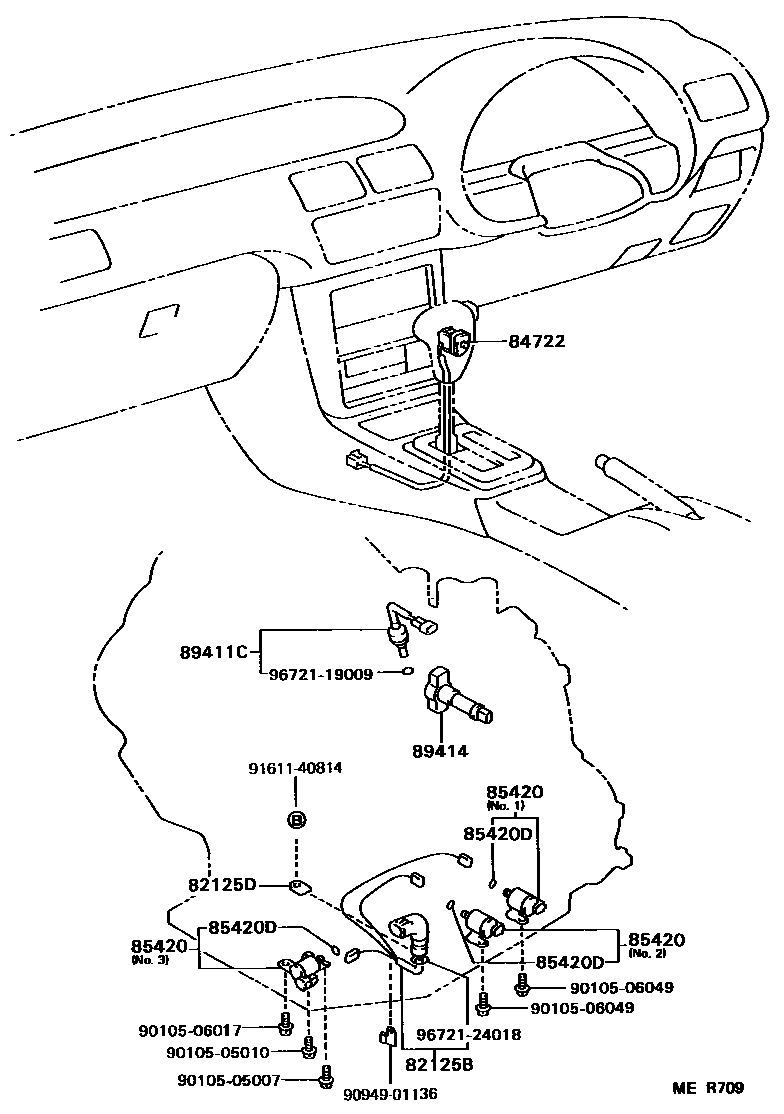

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

82125BWIRE, TRANSMISSION

main82125-20160iEL44..ATM199104-199409

main82125-20220iEL44..ATM199409-199508

82125DPLATE, TRANSMISSION WIRE LOCK

main33485-30020iEL44..ATM199104-199409

84722SWITCH, TRANSMISSION CONTROL

main84722-10020-01iEL44..ATM199104-199208

BLACK,TRIM2#

main84722-20060-C0iEL44..ATM199208-199308

BLACK,TRIM2#

main84722-26100-C0iEL44..ATM199308-199508

BLACK,TRIM2#

85420SOLENOID ASSY, TRANSMISSION

main85420-12062iEL44..ATM199104-199502

NO.3

main85420-20140iEL44..ATM199502-199508

NO.3

main85420-22080×2iEL44..ATM199104-199502

NO.1,NO.2

main85420-30200×2iEL44..ATM199502-199508

NO.1,NO.2

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004×3iEL44..ATM199104-199502

89411CSENSOR, SPEED

main89411-20040iEL44..ATM199104-199508

89414ROTOR, SENSOR

main89414-12010iEL44..ATM199104-199508

9010505007

main90105-05007

9010505010

main90105-05010

9010506017

main90105-06017

9010506049

main90105-06049

9094901136

main90949-01136

9161140814

main91611-40814

9672119009

main96721-19009

9672124018

main96721-24018

15 parts on this diagram · 1 diagram in section
