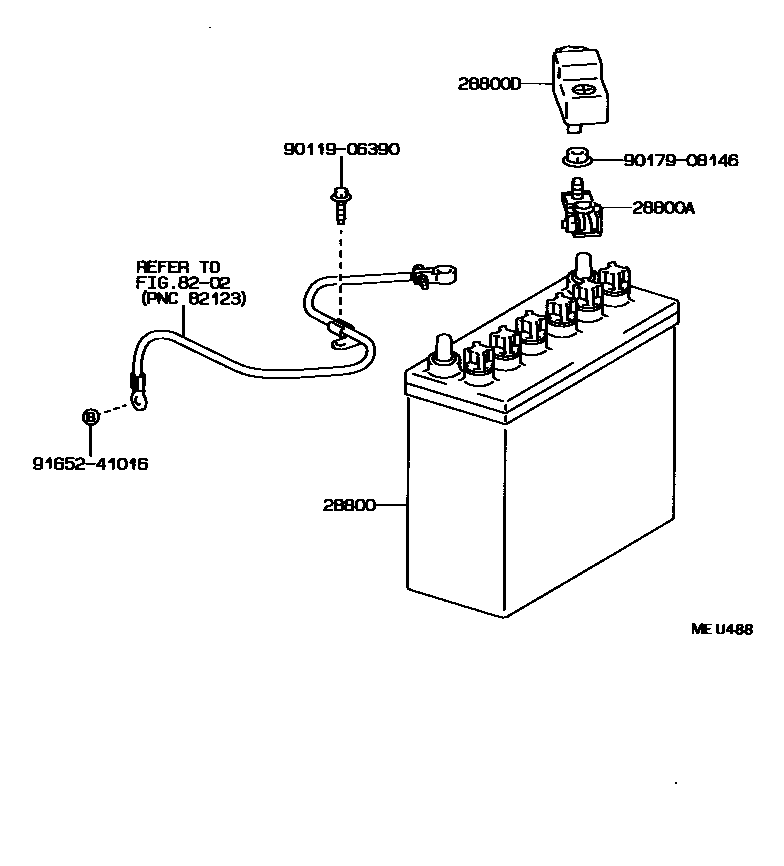

BATTERY & BATTERY CABLE

28800BATTERY

main28800-14030i5EFE..EL44199104-199508

50D20R

28800ATERMINAL, BATTERY POSITIVE

main90982-05035i5EFE..EL44199104-199508

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12290i5EFE..EL44199409-199508

main82821-16050i5EFE..EL44199208-199508

8202WIRING & CLAMP

→ Go to FIG 82-02

9011906390

main90119-06390

9017908146

main90179-08146

9165241016

main91652-41016

7 parts on this diagram · 1 diagram in section
