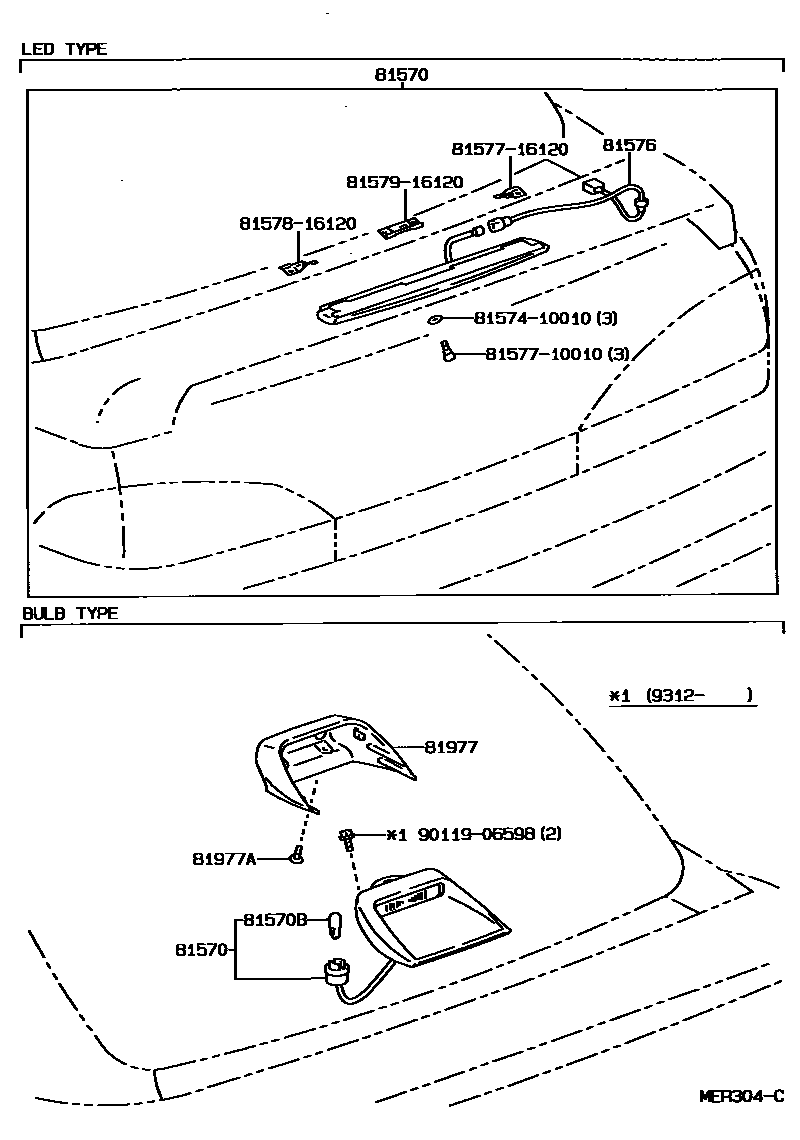

CENTER STOP LAMP

81570LAMP ASSY, CENTER STOP

main81570-16110-01iEL44199104-199208

BLACK,TRIM2#

main81570-16110-22iEL44199208-199312

BLACK,TRIM2#

main81570-16111-22iEL44199312-199508

BLACK,TRIM2#

main81570-16120iEL44199208-199508

81570BBULB (FOR CENTER STOP LAMP)

main90981-11039iEL44199104-199508

12V 16W

81576SOCKET & WIRE, CENTER STOP LAMP

main81576-16120iEL44199104-199508

81977COVER, CENTER STOP LAMP

main81977-16070-01iEL44199104-199208

BLACK,TRIM2#

main81977-16070-22iEL44199208-199508

BLACK,TRIM2#

81977ACLIP (FOR CENTER STOP LAMP)

main90467-07055-11×2iEL44199104-199208

NEW BLACK,TRIM2#

main90467-07055-C0×2iEL44199208-199508

BLACK,TRIM2#

8157410010COVER, CENTER STOP LAMP

main81574-10010

8157710010

main81577-10010

8157716120

main81577-16120

8157816120

main81578-16120

8157916120BRACKET, CENTER STOP LAMP

main81579-16120

9011906598

main90119-06598

11 parts on this diagram · 1 diagram in section
