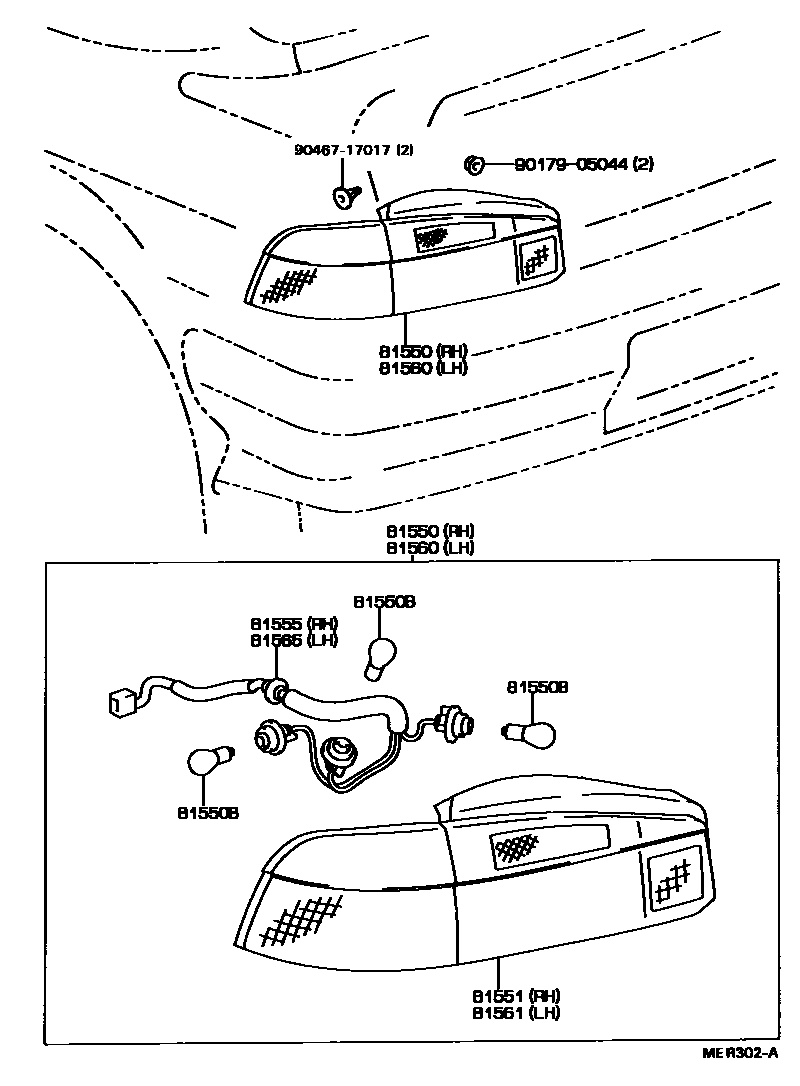

REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-16440iEL44199104-199508

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210×4iEL44199104-199508

12V 21W

main99132-21210×2iEL44199104-199508

12V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-16440iEL44199104-199508

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-16440iEL44199104-199405

main81555-16441iEL44199405-199508

81560LAMP ASSY, REAR COMBINATION, LH

main81560-16480iEL44199104-199508

81561LENS, REAR COMBINATION LAMP, LH

main81561-16480iEL44199104-199508

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-16440iEL44199104-199405

main81555-16441iEL44199405-199508

9017905044

main90179-05044

9046717017

main90467-17017

9 parts on this diagram · 1 diagram in section
