EPC Data

SEAT BELT & CHILD RESTRAINT SEAT

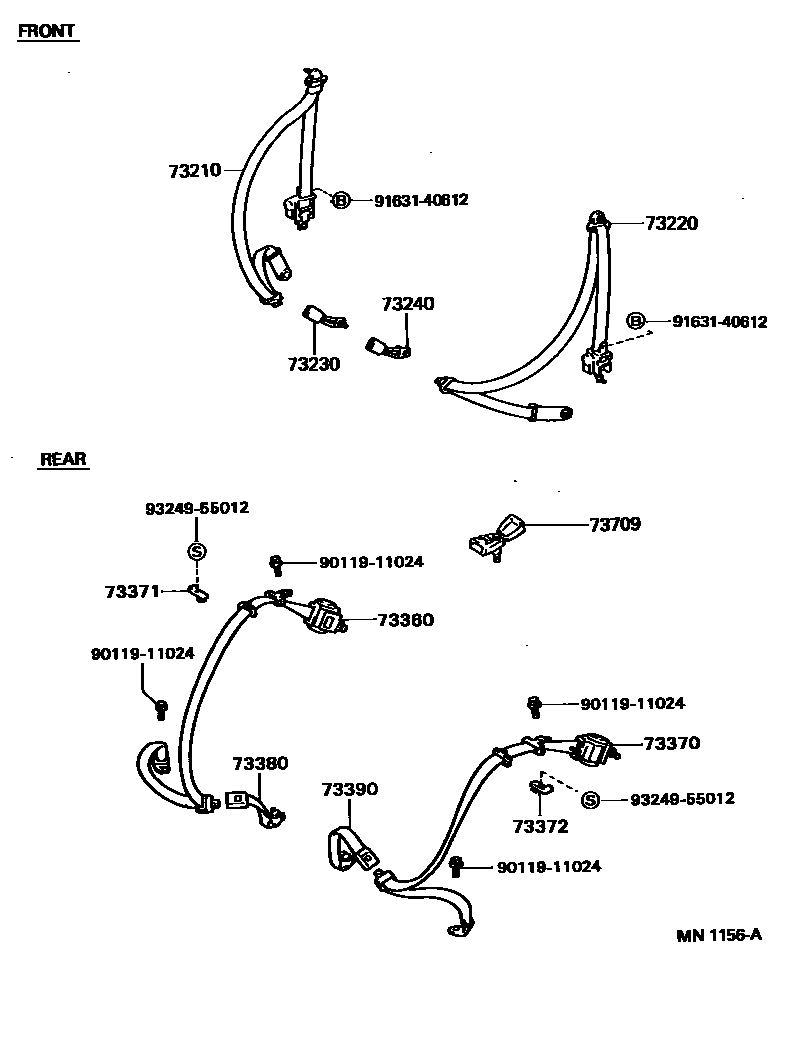

Parts diagram
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-16470-01i199104-199111
BLACK,TRIM2#
main73210-16471-C0i199111-199508
BLACK,TRIM2#
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-16410-01i199104-199111
BLACK,TRIM2#
main73220-16411-C0i199111-199508
BLACK,TRIM2#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-16300-01i199104-199112
BLACK,TRIM2#
main73230-16301-22i199112-199208
BLACK,TRIM2#
main73230-16302-22i199208-199508
BLACK,TRIM2#
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-16300-01i199104-199112
BLACK,TRIM2#
main73230-16301-22i199112-199208
BLACK,TRIM2#
main73230-16302-22i199208-199508
BLACK,TRIM2#
73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
main73360-16270-01i199104-199112
BLACK,TRIM2#
main73360-16271-C0i199112-199208
BLACK,TRIM2#
main73360-16271-C1i199208-199508
BLACK,TRIM2#
73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
main73370-16200-01i199104-199112
BLACK,TRIM2#
main73370-16201-C0i199112-199208
BLACK,TRIM2#
main73370-16201-C1i199208-199508
BLACK,TRIM2#
73371HANGER, REAR SEAT SHOULDER BELT, RH
main73371-16070-01i199104-199208
BLACK,TRIM2#
main73371-16070-C0i199208-199508
BLACK,TRIM2#
73372HANGER, REAR SEAT SHOULDER BELT, LH
main73371-16070-01i199104-199208
BLACK,TRIM2#
main73371-16070-C0i199208-199508
BLACK,TRIM2#
73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
main73380-16210-01i199104-199112
BLACK,TRIM2#
main73380-16211-C0i199112-199208
BLACK,TRIM2#
main73380-16211-C1i199208-199508
BLACK,TRIM2#
73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
main73380-16210-01i199104-199112
BLACK,TRIM2#
main73380-16211-C0i199112-199208
BLACK,TRIM2#
main73380-16211-C1i199208-199508
BLACK,TRIM2#
73709BRACKET SUB-ASSY, TETHER ANCHOR
main73708-20030i199311-199403
9011911024
main90119-11024
9163140612
main91631-40612
9324955012
main93249-55012

14 parts on this diagram · 1 diagram in section
