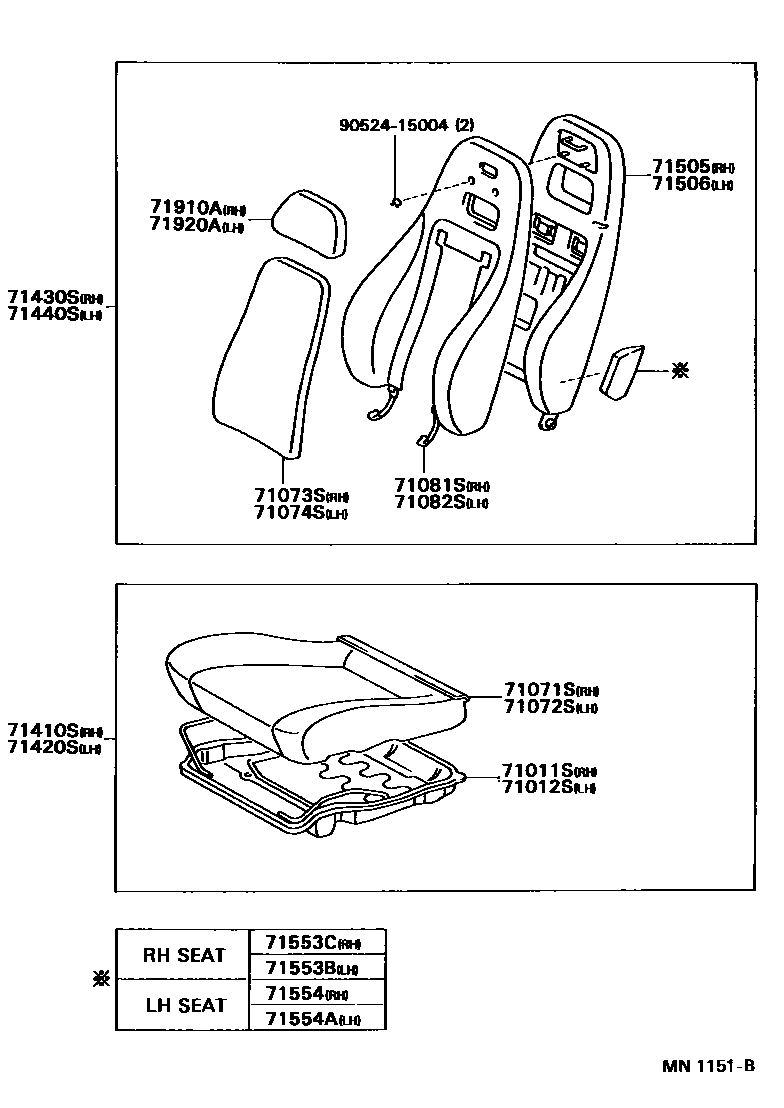

FRONT SEAT & SEAT TRACK

0001 1 0002 1

71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH

main71610-16030iEL44199104-199508

71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH

main71620-16030iEL44199104-199508

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71518-16050-03iEL44199104-199208

GRAY,TRIM2#

main71518-16090-C0iEL44199208-199508

GRAY,TRIM2#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71528-16040-03iEL44199104-199208

GRAY,TRIM2#

main71528-16080-C0iEL44199208-199508

GRAY,TRIM2#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71568-16030-03iEL44199104-199208

GRAY,TRIM2#

main71568-16060-C0iEL44199208-199508

GRAY,TRIM2#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71568-16030-03iEL44199104-199208

GRAY,TRIM2#

main71568-16060-C0iEL44199208-199508

GRAY,TRIM2#

71081SCOVER SUB-ASSY, FRONT SEATBACK SIDE, RH

main71081-16020-01iEL44199104-199208

BLACK,TRIM2#

main71081-16040-C0iEL44199208-199508

GRAY,TRIM2#

71082SCOVER SUB-ASSY, FRONT SEATBACK SIDE, LH

main71082-16020-01iEL44199104-199208

BLACK,TRIM2#

main71082-16040-C0iEL44199208-199508

GRAY,TRIM2#

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-1G100-03iEL44199104-199208

***,GRAY,TRIM2#

main71410-1G170-C0iEL44199208-199508

***,GRAY,TRIM2#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-1G040-03iEL44199104-199208

***,GRAY,TRIM2#

main71420-1G110-C0iEL44199208-199508

***,GRAY,TRIM2#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-1G240-03iEL44199104-199208

***,GRAY,TRIM2#

main71430-1G310-C0iEL44199208-199508

***,GRAY,TRIM2#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-1G190-03iEL44199104-199208

***,GRAY,TRIM2#

main71440-1G260-C0iEL44199208-199508

***,GRAY,TRIM2#

71505PAD SUB-ASSY, FRONT SEATBACK W/FRAME, RH

main71505-16110iEL44199104-199508

71506PAD SUB-ASSY, FRONT SEATBACK W/FRAME, LH

main71505-16110iEL44199104-199508

71553BPAD, FRONT SEATBACK, B

main71554-16140iEL44199104-199508

71553CPAD, FRONT SEATBACK, C

main71553-16100iEL44199104-199508

71554PAD, FRONT SEATBACK, C

main71553-16100iEL44199104-199508

71554APAD, FRONT SEATBACK, CENTER

main71554-16140iEL44199104-199508

71910AHEADREST ASSY, FRONT SEAT

main71910-16390-01iEL44199104-199208

BLACK,TRIM2#

main71910-16450-C0iEL44199208-199508

BLACK,TRIM2#

71920AHEADREST ASSY, FRONT SEAT, LH

main71910-16390-01iEL44199104-199208

BLACK,TRIM2#

main71910-16450-C0iEL44199208-199508

BLACK,TRIM2#

9052415004

main90524-15004

21 parts on this diagram · 2 diagrams in section
