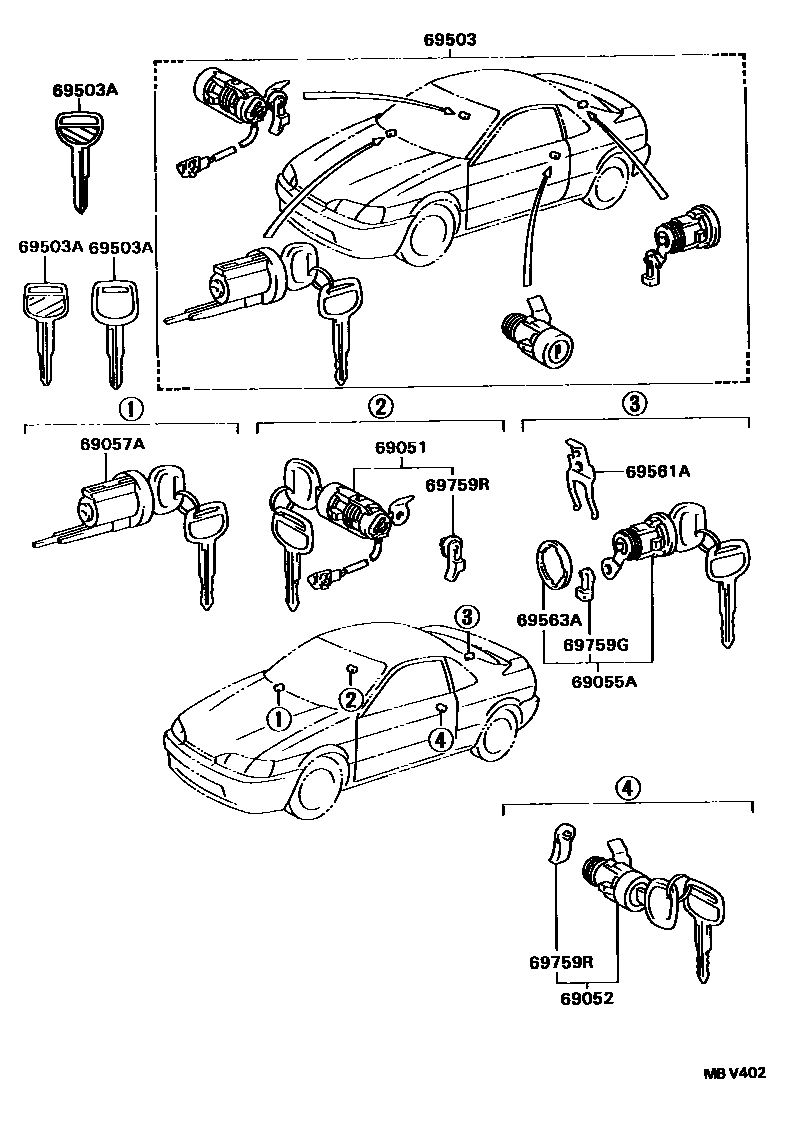

LOCK CYLINDER SET
69051CYLINDER & KEY SET, DOOR LOCK, RH
W(POWER WINDOW)
69052CYLINDER & KEY SET, DOOR LOCK, LH
69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
BLACK,TRIM2#&205 ,3E5 ,3H4 ,4L8 ,746 ,8J2
SILVER,040 ,176 ,3E5 ,3H4 ,8J2
SILVER,040 ,176 ,3E5 ,3K4 ,8J2 ,924
BLACK,205 ,3E5 ,3L3 ,6N7 ,746
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
69503CYLINDER SET, LOCK
BLACK,TRIM2#&205 ,3E5 ,3H4 ,4L8 ,746 ,8J2
SILVER,040 ,176 ,3E5 ,3H4 ,8J2
SILVER,040 ,1A0 ,3E5 ,8K9
BLACK,205 ,3E5 ,3L3 ,6N7 ,746
W(POWER WINDOW),BLACK,205 ,3E5 ,3H4 ,4L8 ,746 ,8J2
W(POWER WINDOW),SILVER,040 ,176
W(POWER WINDOW),SILVER,040 ,176 ,8J2 ,924
W(POWER WINDOW),BLACK,205 ,3E5 ,3K4 ,746
69503AKEY, BLANK
MASTER KEY,W(*68)
MASTER KEY
SUB KEY
69561ARETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER
69563APAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER
69759GSNAP, LUGGAGE DOOR LOCK CYLINDER
ORANGE
BROWN
69759RSNAP, FRONT DOOR LOCK CYLINDER
BLUE
W(POWER WINDOW),PINK
YELLOW
10 parts on this diagram · 1 diagram in section
