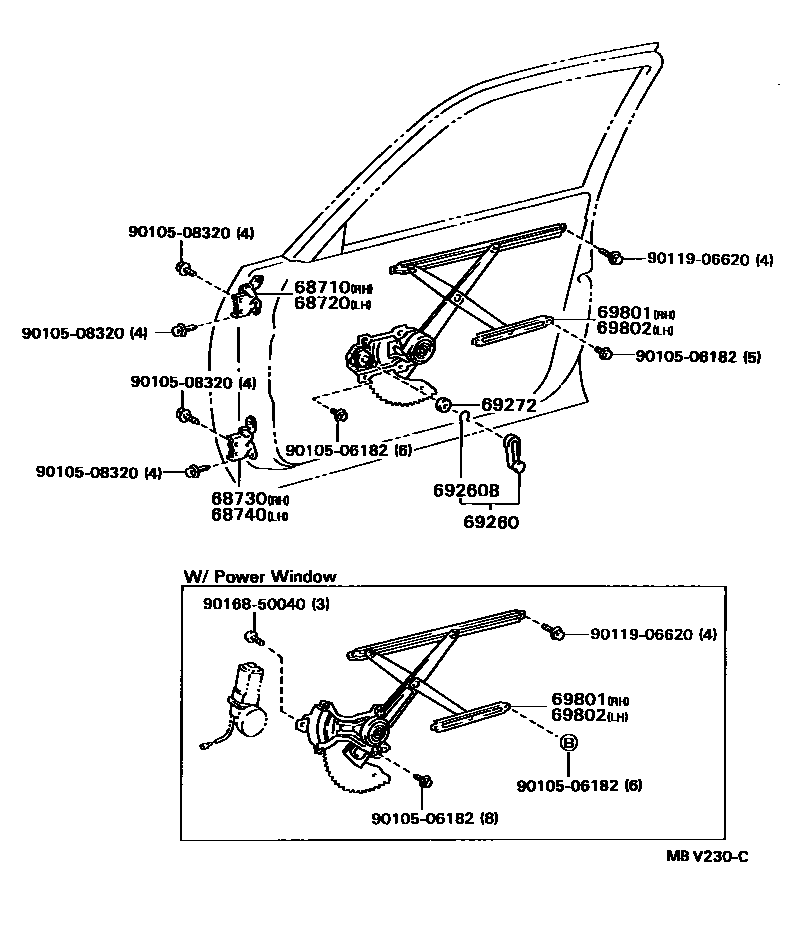

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-16040iEL44199104-199208

main68710-16041iEL44199406-199508

main68710-16050iEL44199208-199406

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-16040iEL44199104-199208

main68720-16041iEL44199406-199508

main68720-16050iEL44199208-199406

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-16050iEL44199104-199208

main68730-16051iEL44199403-199508

main68730-16070iEL44199208-199210

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-16050iEL44199210-199403

main68740-16051iEL44199403-199508

main68740-16070iEL44199208-199210

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-16010-01×2iEL44199104-199208

BLACK,TRIM2#

main69260-16010-22×2iEL44199208-199508

BLACK,TRIM2#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iEL44199104-199508

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-20020×2iEL44199104-199508

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-16040iEL44199104-199208

W(POWER WINDOW)

main69801-16041iEL44199208-199508

W(POWER WINDOW)

main69810-16100iEL44199104-199208

main69810-16101iEL44199208-199508

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-16040iEL44199104-199208

W(POWER WINDOW)

main69802-16041iEL44199208-199508

W(POWER WINDOW)

main69820-16100iEL44199104-199208

main69820-16101iEL44199208-199508

9010506182

main90105-06182

9010508320

main90105-08320

9011906620

main90119-06620

9016850040

main90168-50040

13 parts on this diagram · 1 diagram in section
