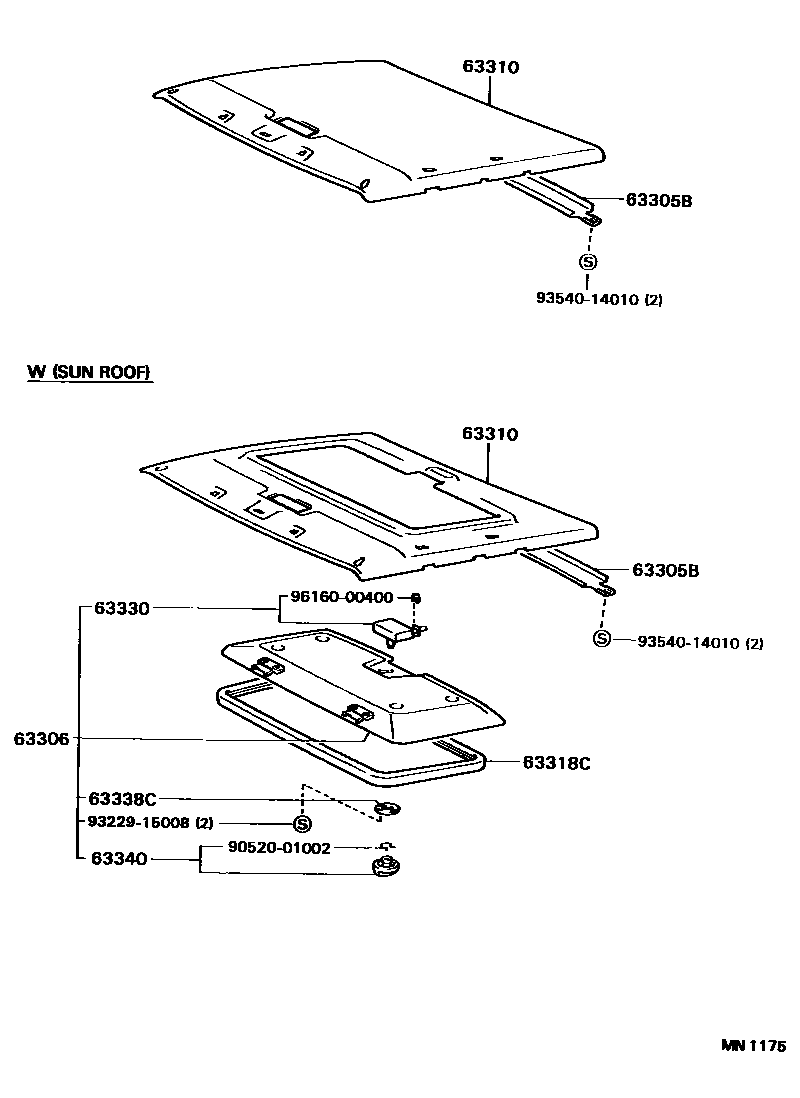

ROOF HEADLINING & SILENCER PAD
63305BTRIM SUB-ASSY, ROOF HEADLINING, REAR
BLACK,TRIM2#
BLACK,TRIM2#
63306TRIM SUB-ASSY, SUNSHADE
GRAY,TRIM2#
LI.GRAY,TRIM2#
63310HEADLINING ASSY, ROOF
GRAY,TRIM2#
LI.GRAY,TRIM2#
W(SUN ROOF),GRAY,TRIM2#
W(SUN ROOF),LI.GRAY,TRIM2#
63318CMOULDING, SUN ROOF OPENING TRIM
GRAY,TRIM2#
63330LOCK ASSY, SUNSHADE TRIM
63338CSTOPPER, SUNSHADE LOCK, NO.2
63340HANDLE ASSY, SUNSHADE TRIM LOCK
GRAY,TRIM2#
LI.GRAY,TRIM2#
9052001002
main90520-01002
9322915008
main93229-15008
9354014010
main93540-14010
9616000400
main96160-00400
11 parts on this diagram · 1 diagram in section
