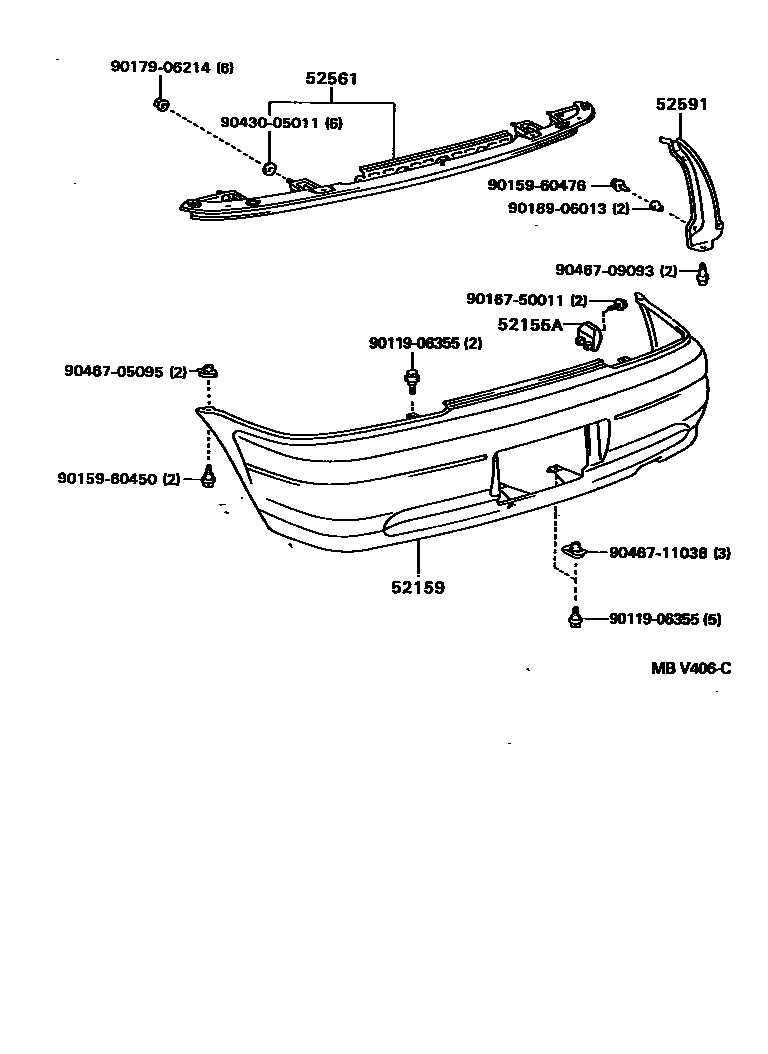

REAR BUMPER & BUMPER STAY

52155ASUPPORT, REAR BUMPER SIDE, RH

main52157-16110iEL44199209-199508

52159COVER, REAR BUMPER

main52159-16904iEL44199104-199508

52561RETAINER, REAR BUMPER, UPPER CENTER

main52508-16030iEL44199104-199508

52591SEAL, REAR BUMPER SIDE, RH

main52591-16080iEL44199104-199508

9011906355

main90119-06355

9015960450

main90159-60450

9015960476

main90159-60476

9016750011

main90167-50011

9017906214

main90179-06214

9018906013

main90189-06013

9043005011

main90430-05011

9046705095

main90467-05095

9046709093

main90467-09093

9046711038

main90467-11038

14 parts on this diagram · 1 diagram in section
