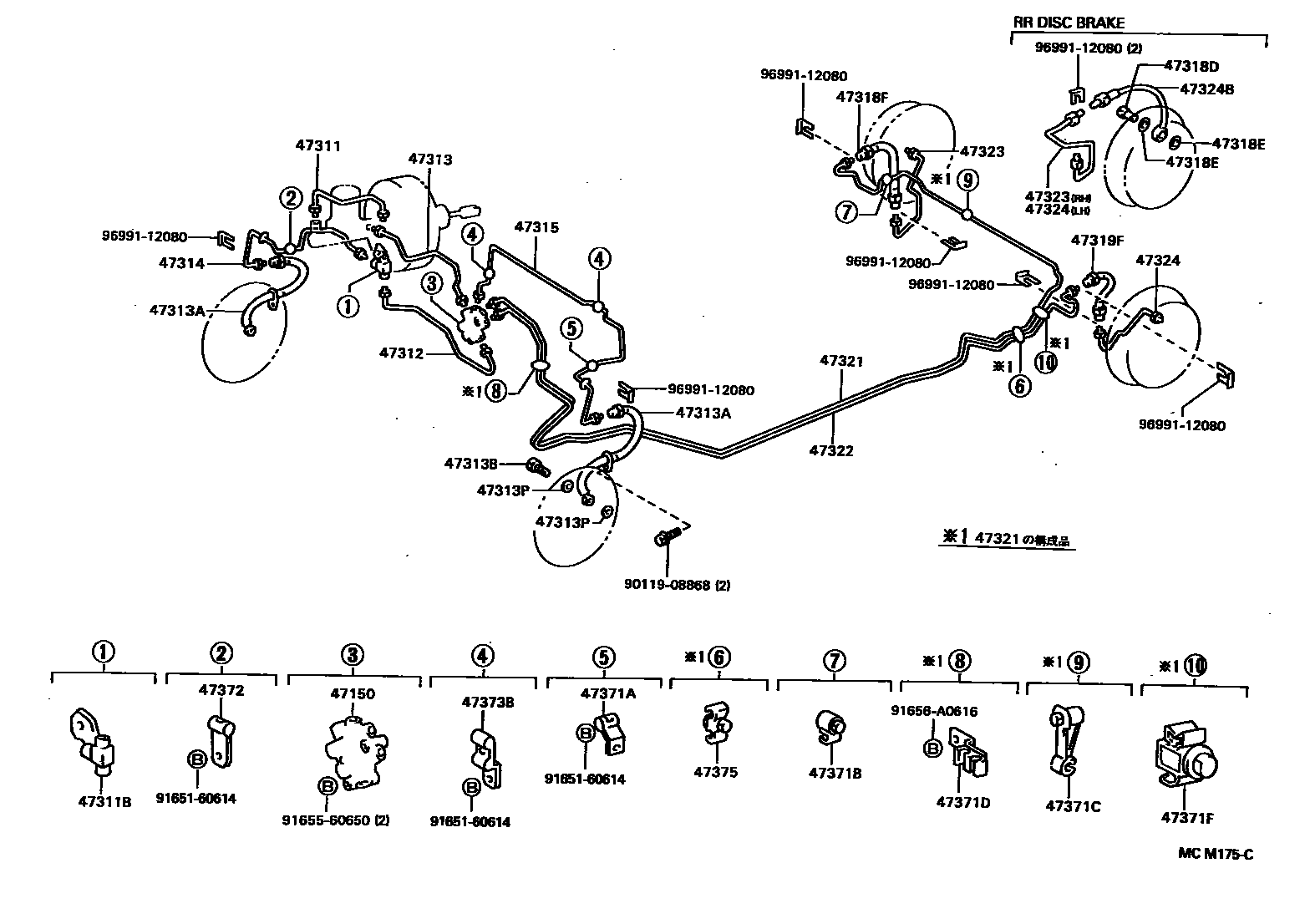

BRAKE TUBE & CLAMP

47150VALVE ASSY, PROPORTIONING

main47150-20130iEL44199104-199508

47311TUBE, FRONT BRAKE, NO.1

main47311-10180iEL44199104-199508

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90413-10259iEL44199104-199508

47312TUBE, FRONT BRAKE, NO.2

main47312-16120iEL44199104-199409

main47312-16140iEL44199409-199508

47313TUBE, FRONT BRAKE, NO.3

main47313-16140iEL44199104-199408

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02635iEL44199104-199208

RH

main90947-02636iEL44199104-199208

LH

main90947-02718iEL44199208-199409

RH

main90947-02719iEL44199208-199409

LH

main90947-02813iEL44199409-199508

RH

main90947-02814iEL44199409-199508

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015×2iEL44199104-199508

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074×4iEL44199104-199508

47314TUBE, FRONT BRAKE, NO.4

main47314-16090iEL44199104-199409

47315TUBE, FRONT BRAKE, NO.5

main47315-16100iEL44199104-199409

main47315-16120iEL44199409-199508

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10015×2iEL44199208-199508

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main90430-10074×4iEL44199208-199508

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02637iEL44199104-199508

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02637iEL44199104-199508

47321TUBE, REAR BRAKE, NO.1

main47321-16070iEL44199312-199508

main47321-16090iEL44199104-199312

47322TUBE, REAR BRAKE, NO.2

main47322-16060iEL44199312-199508

main47322-16080iEL44199104-199312

47323TUBE, REAR BRAKE, NO.3

main47323-16140iEL44199104-199409

main47323-16150iEL44199208-199508

W(REAR DISK BRAKE)

main47323-16170iEL44199409-199508

47324TUBE, REAR BRAKE, NO.4

main47324-16130iEL44199104-199409

main47324-16140iEL44199208-199508

W(REAR DISK BRAKE)

main47324-16160iEL44199409-199508

47324BHOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2)

main90947-02608×2iEL44199208-199508

47371ACLAMP, BRAKE TUBE, NO.1

main90461-06055iEL44199104-199409

main90461-06221iEL44199409-199508

47371BCLAMP, BRAKE TUBE, NO.6

main47371-10100iEL44199104-199508

47371CCLAMP, BRAKE TUBE, NO.7

main47371-10110iEL44199104-199508

47371DCLAMP, BRAKE TUBE, NO.8

main47371-16030iEL44199104-199312

main47371-30010iEL44199312-199508

47371FCLAMP, BRAKE TUBE, NO.10

main47371-16010iEL44199104-199508

47372CLAMP, BRAKE TUBE, NO.2

main90461-10738iEL44199104-199409

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01207×2iEL44199104-199409

47375CLAMP, BRAKE TUBE, NO.5

main47371-10080iEL44199104-199508

9011908868

main90119-08868

9165160614

main91651-60614

9165560650

main91655-60650

91656A0616

main91656-A0616

9699112080

main96991-12080

32 parts on this diagram · 1 diagram in section
