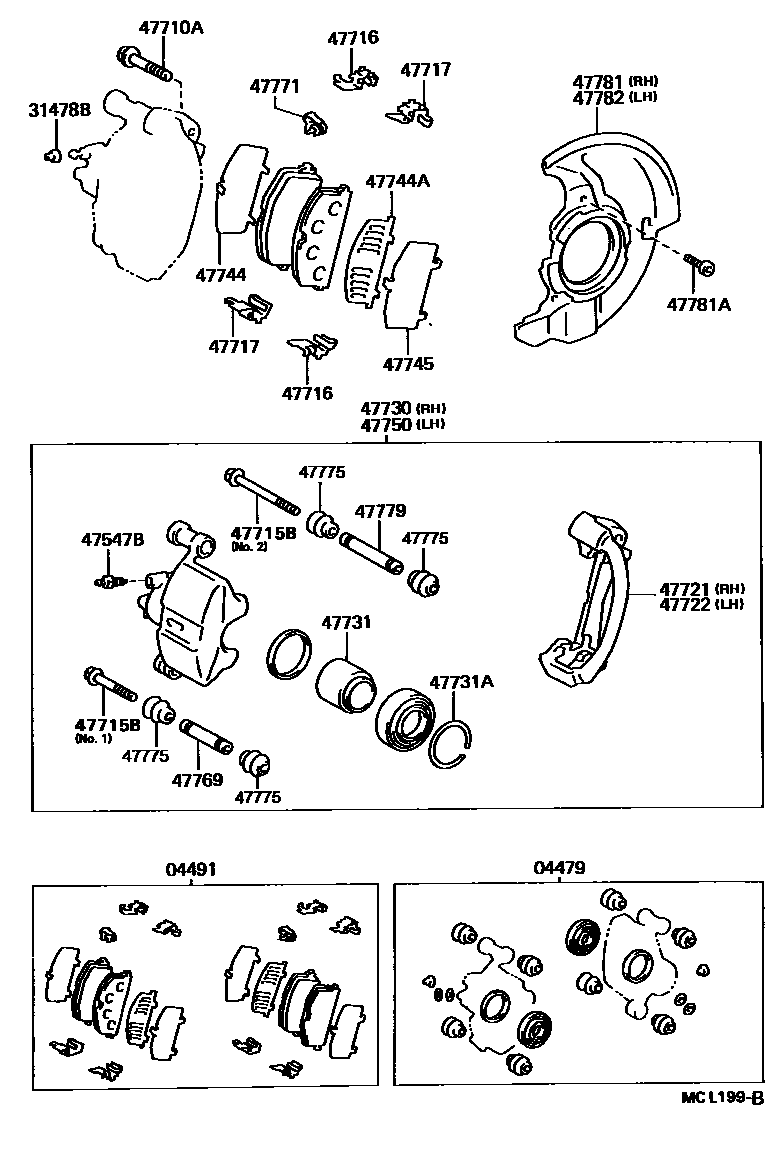

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-12091iEL44199104-199508

04491PAD KIT, DISC BRAKE, FRONT

main04491-10240iEL44199104-199405

main04491-10241iEL44199405-199505

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iEL44199104-199508

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iEL44199104-199508

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12040×4iEL44199104-199508

*12-1.25PX25.8-19.5

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90119-09003×2iEL44199208-199508

NO.1

main90119-09004×2iEL44199208-199508

NO.2

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-32031×4iEL44199104-199508

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-32031×4iEL44199104-199508

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-10010iEL44199104-199508

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-10010iEL44199104-199508

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-10110iEL44199104-199409

main47730-10111iEL44199409-199508

47731PISTON, FRONT DISC BRAKE

main47731-12150×2iEL44199104-199508

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-61001×2iEL44199104-199508

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-16011×2iEL44199104-199508

sub47744-32010

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47742-32040×2iEL44199104-199508

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-32040×2iEL44199104-199508

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-10110iEL44199104-199409

main47750-10111iEL44199409-199508

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-12030×2iEL44199104-199508

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-12050×2iEL44199104-199508

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-32010×8iEL44199507-199508

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-16010×2iEL44199104-199508

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-10070iEL44199104-199508

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90109-06134×6iEL44199104-199508

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-10070iEL44199104-199508

24 parts on this diagram · 2 diagrams in section
