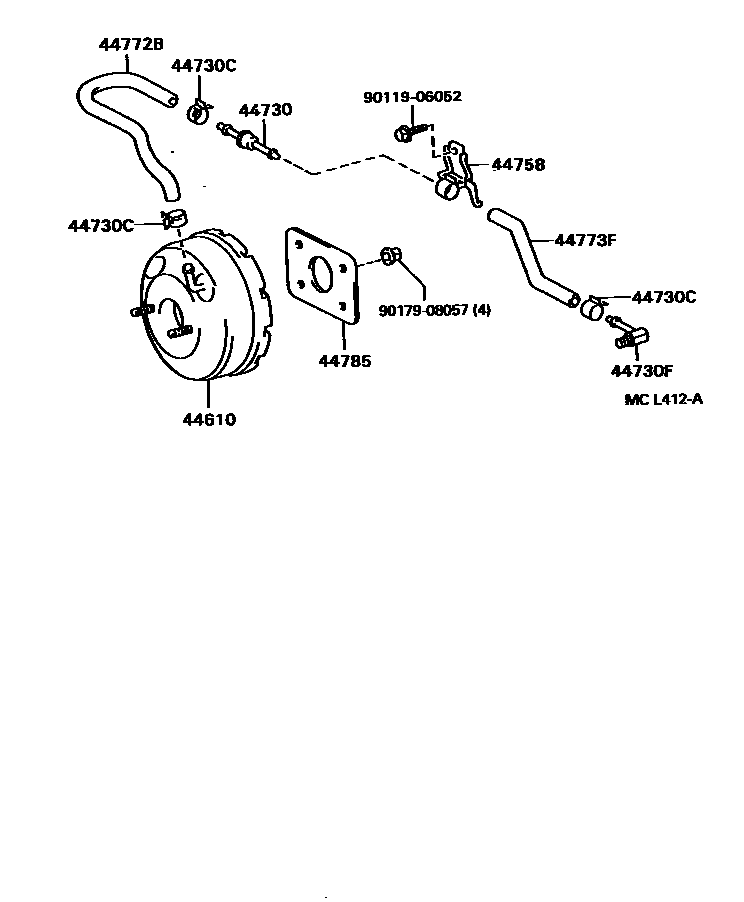

BRAKE BOOSTER & VACUUM TUBE

44610BOOSTER ASSY, BRAKE

main44610-16260iEL44199104-199208

main44610-16500iEL44199208-199409

main44610-16570iEL44199409-199508

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-10010iEL44199104-199508

44730CCLIP(FOR VACUUM HOSE)

main90467-16002×3iEL44199104-199508

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90407-51002iEL44199104-199508

44758BRACKET, VACUUM CHECK VALVE

main44758-16070iEL44199104-199508

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-16100iEL44199104-199508

44773FHOSE, UNION TO CHECK VALVE

main44773-16090iEL44199104-199508

44785GASKET, BRAKE BOOSTER

main44785-10020iEL44199104-199508

9011906052

main90119-06052

9017908057

main90179-08057

10 parts on this diagram · 1 diagram in section
