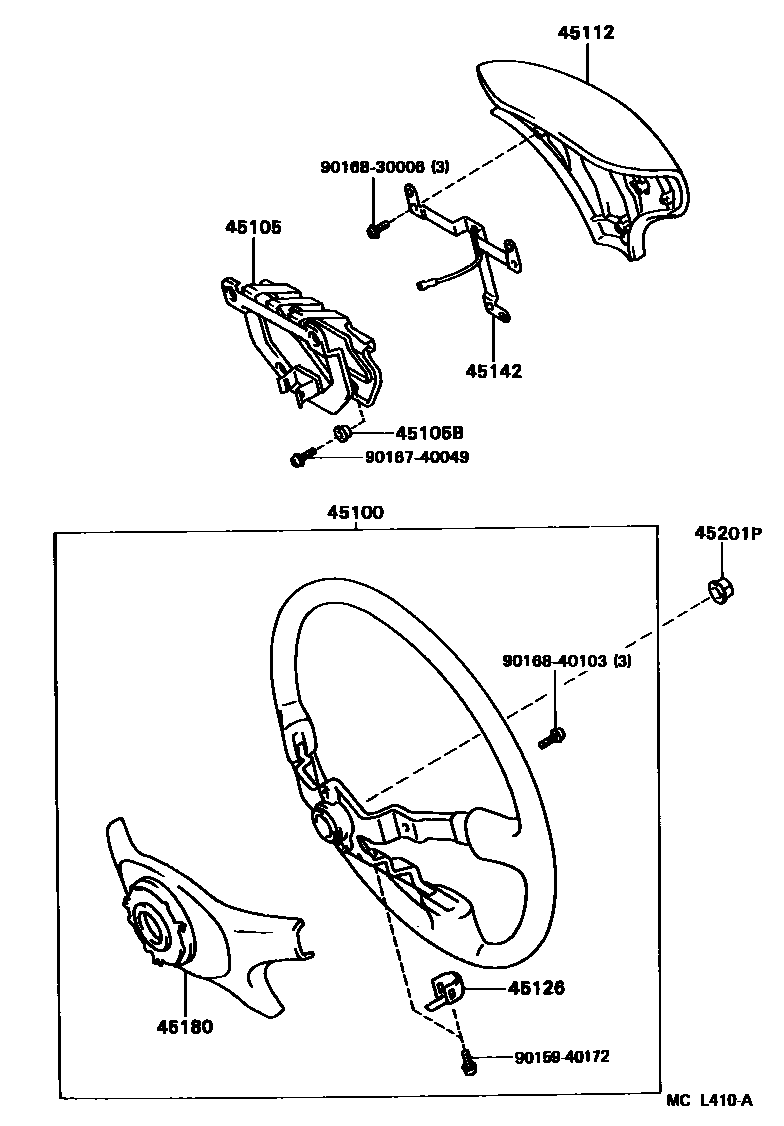

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-16280-01iEL44199104-199208

3-SPOKE,URETHANE,BLACK,TRIM2#

main45100-16280-22iEL44199208-199508

3-SPOKE,URETHANE,BLACK,TRIM2#

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-16130iEL44199104-199508

45105BSPACER(FOR HORN BUTTON CONTACT PLATE)

main90561-04014iEL44199104-199508

45112PAD, STEERING WHEEL

main45112-16220-01iEL44199104-199108

BLACK,TRIM2#

main45112-16221-C0iEL44199108-199508

BLACK,TRIM2#

45126PLATE, STEERING WHEEL PAD SET

main45126-16060iEL44199104-199508

45142SEAT, HORN BUTTON CONTACT, NO.1

main45142-16080iEL44199104-199508

45180COVER SUB-ASSY, STEERING WHEEL

main45180-16130iEL44199208-199212

main45180-16130-01iEL44199104-199208

BLACK,TRIM2#

main45180-16130-C0iEL44199208-199508

BLACK,TRIM2#

45201PNUT, STEERING WHEEL SET

main90179-12071iEL44199306-199508

main90179-12086iEL44199104-199306

9015940172

main90159-40172

9016740049

main90167-40049

9016830006

main90168-30006

9016840103

main90168-40103

12 parts on this diagram · 1 diagram in section
