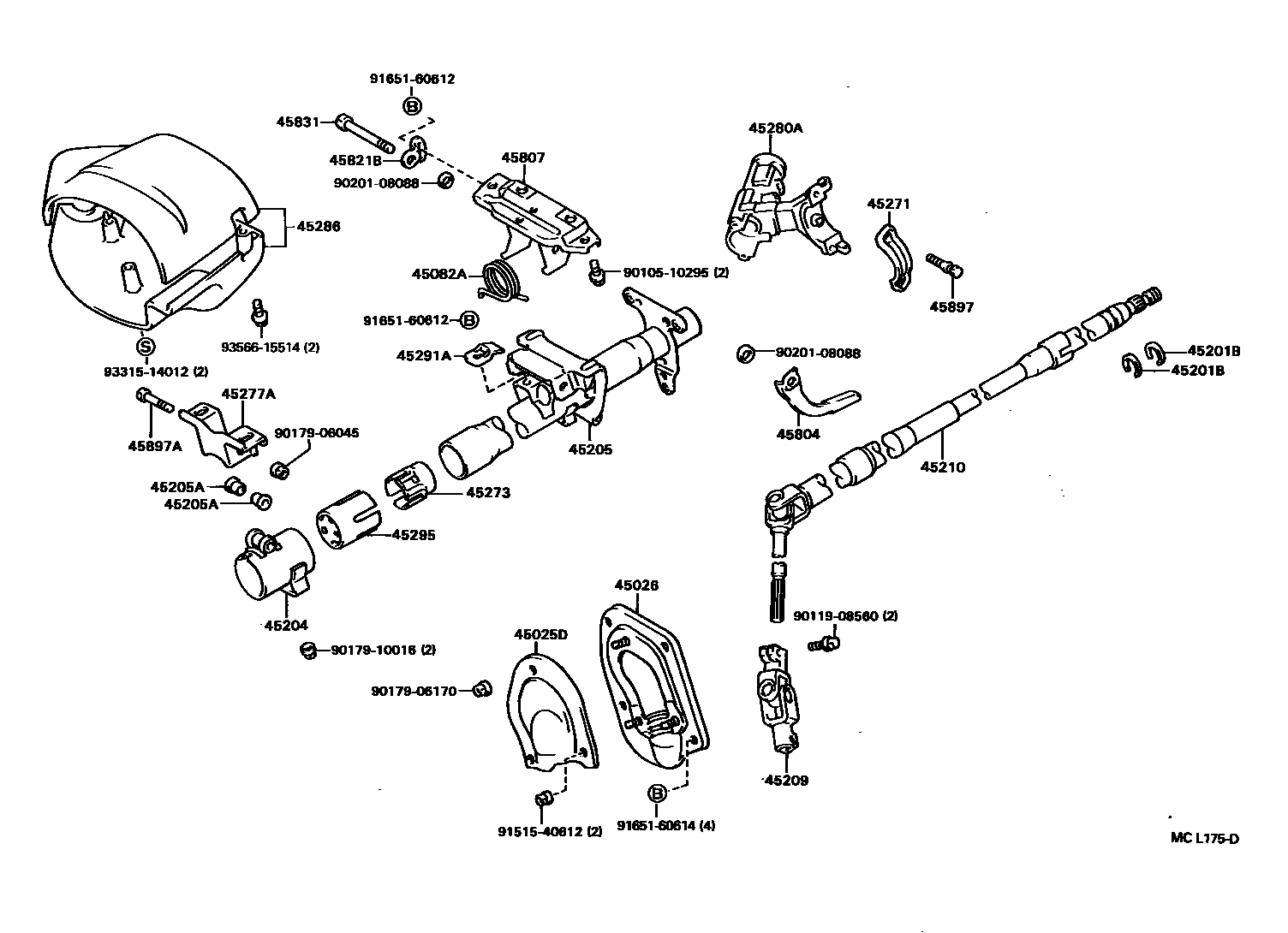

STEERING COLUMN & SHAFT

0001 1 0002 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-16120iEL44199104-199409

main45025-16130iEL44199409-199508

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-16060iEL44199104-199508

45082ASPRING, TORSION(FOR TILT STEERING RETURN)

main90508-32029iEL44199104-199409

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042×2iEL44199104-199306

T=1.20

main90520-17196×2iEL44199104-199306

T=1.35-1.45

main90520-17269iEL44199306-199508

T=1.20,NO.2

45204TUBE ASSY, STEERING COLUMN, LOWER

main45204-10060iEL44199104-199409

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-10201iEL44199104-199409

main45205-16090iEL44199409-199508

45205ABUSH(FOR STEERING COLUMN TUBE)

main90386-08034×2iEL44199104-199409

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-16051iEL44199104-199508

45210SHAFT ASSY, STEERING MAIN

main45210-10150iEL44199104-199508

45271CLAMP, STEERING COLUMN, UPPER

main45271-16020iEL44199104-199508

45273BUSH, STEERING MAIN SHAFT

main45273-16010iEL44199104-199309

main45273-16020iEL44199409-199508

main45273-20030iEL44199309-199409

45277ASUPPORT, TILT STEERING

main45277-10010iEL44199104-199409

main45277-16030iEL44199409-199508

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-16080iEL44199104-199409

main45280-16090iEL44199409-199508

45286COVER, STEERING COLUMN

main45286-16916-01iEL44199104-199208

BLACK,TRIM2#

main45286-16916-22iEL44199208-199409

BLACK,TRIM2#

main45286-16927-C0iEL44199409-199508

BLACK,TRIM2#

45291ASUPPORT, STEERING COLUMN TUBE

main45291-16010iEL44199104-199409

45295BUSH, STEERING COLUMN TUBE

main45295-10010iEL44199104-199409

45804LEVER SUB-ASSY, STEERING TILT

main45804-10010iEL44199104-199409

main45804-16040iEL44199409-199508

45807BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT

main45807-16041iEL44199104-199208

main45807-16042iEL44199208-199409

main45807-16050iEL44199409-199508

45821BREINFORCE, TILT STEERING SUPPORT, NO.1

main45821-16010iEL44199104-199508

45831BOLT, TILT LEVER LOCK, NO.1

main45831-16020iEL44199104-199508

45897BOLT, STEERING LOCK SET

main45897-12020×2iEL44199310-199508

main45897-32010×2iEL44199104-199310

45897ABOLT, TILT STEERING PAWL SET

main45897-16010iEL44199104-199409

main45897-16020iEL44199409-199508

9010510295

main90105-10295

9011908560

main90119-08560

9017906045

main90179-06045

9017906170

main90179-06170

9017910016

main90179-10016

9020108088

main90201-08088

9151540612

main91515-40612

9165160612

main91651-60612

9165160614

main91651-60614

9331514012

main93315-14012

9356615514

main93566-15514

33 parts on this diagram · 2 diagrams in section
