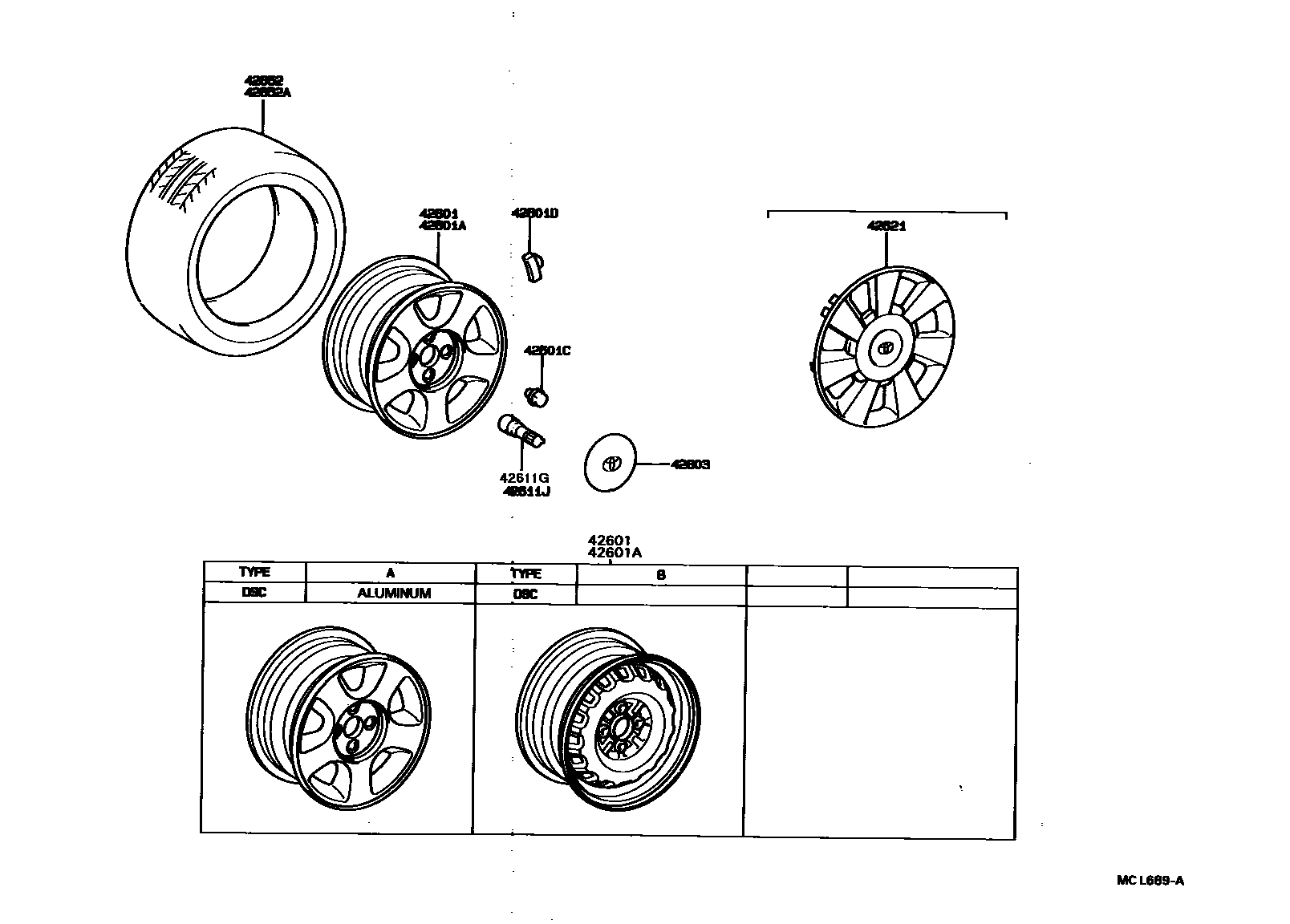

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
14X5.5JJ,ALUMINUM WHEEL,TYPE A
14X5.5J,TYPE B,BLACK
42601AWHEEL, DISC (FOR SPARE)
14X5.5JJ,ALUMINUM WHEEL,TYPE A
14X5.5J,TYPE B,BLACK
42601CNUT, HUB (FOR AXLE)
W(ALUMINUM WHEEL)
42601DWEIGHT, BALANCE (FOR DISC WHEEL)
5G,T=8.1
7.5G
10G,T=8.6
12.5G
15G,T=8.6
17.5G
20G,T=8.6
22.5G
25G,T=8.6
27.5G
30G,T=8.6
32.5G
35G,T=8.6
37.5G
40G,T=9.5
45G,T=9.5
50G,T=9.5
55G,T=9.5
60G,T=9.5
65G,T=9.5
70G,T=9.5
75G,T=9.5
80G,T=9.5
20G,T=8
30G,T=10
40G,T=9.5
50G,T=9.5
60G,T=9.5
70G,T=9.5
80G,T=9.5
10G,T=7.5
15G
25G
35G
45G
55G
65G
75G
10G,W(ALUMINUM WHEEL)
15G,W(ALUMINUM WHEEL)
20G,W(ALUMINUM WHEEL)
25G,W(ALUMINUM WHEEL)
30G,W(ALUMINUM WHEEL)
35G,W(ALUMINUM WHEEL)
40G,W(ALUMINUM WHEEL)
45G,W(ALUMINUM WHEEL)
50G,W(ALUMINUM WHEEL)
55G,W(ALUMINUM WHEEL)
60G,W(ALUMINUM WHEEL)
65G,W(ALUMINUM WHEEL)
70G,W(ALUMINUM WHEEL)
75G,W(ALUMINUM WHEEL)
80G,W(ALUMINUM WHEEL)
5G
5G,W(ALUMINUM WHEEL)
7.5G,T=7.5
12.5G,T=7.5
17.5G,T=9.5
22.5G,T=9.5
27.5G,T=9.5
32.5G,T=9.5
37.5G,T=9.5
7.5G,T=6.1,W(ALUMINUM WHEEL)
12.5G,T=7.0,W(ALUMINUM WHEEL)
17.5G,T=8.0,W(ALUMINUM WHEEL)
22.5G,T=8.0,W(ALUMINUM WHEEL)
27.5G,T=8.0,W(ALUMINUM WHEEL)
32.5G,T=8.0,W(ALUMINUM WHEEL)
37.5G,T=8.0,W(ALUMINUM WHEEL)
42603ORNAMENT SUB-ASSY, WHEEL HUB
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
42621CAP, WHEEL
FULL CAP
42652TIRE
175/65R14 82S
185/60R14 82H,RH
185/60R14 82H,LH
42652ATIRE (FOR SPARE)
175/65R14 82S
185/60R14 82H,RH
185/60R14 82H
10 parts on this diagram · 1 diagram in section
