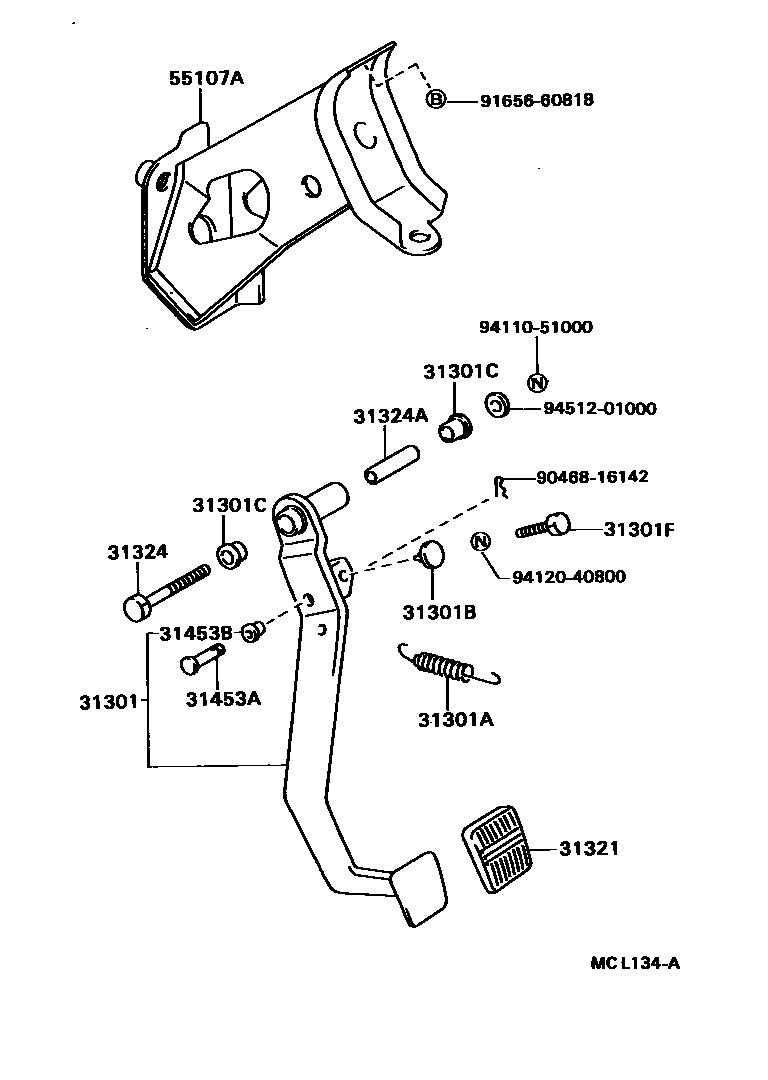

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-16090iEL44..MTM199104-199508

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14035iEL44..MTM199104-199508

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06032iEL44..MTM199104-199208

main90541-06036iEL44..MTM199208-199508

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015×2iEL44..MTM199104-199508

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-08052iEL44..MTM199104-199508

31321PAD, CLUTCH PEDAL

main31321-14020iEL44..MTM199104-199508

31324SHAFT, CLUTCH PEDAL

main90101-10015iEL44..MTM199104-199508

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iEL44..MTM199104-199508

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08243iEL44..MTM199104-199508

L=30

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iEL44..MTM199104-199508

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-16070iEL44..MTM199104-199508

9046816142

main90468-16142

9165660818

main91656-60818

9411051000

main94110-51000

9412040800

main94120-40800

9451201000

main94512-01000

16 parts on this diagram · 2 diagrams in section
