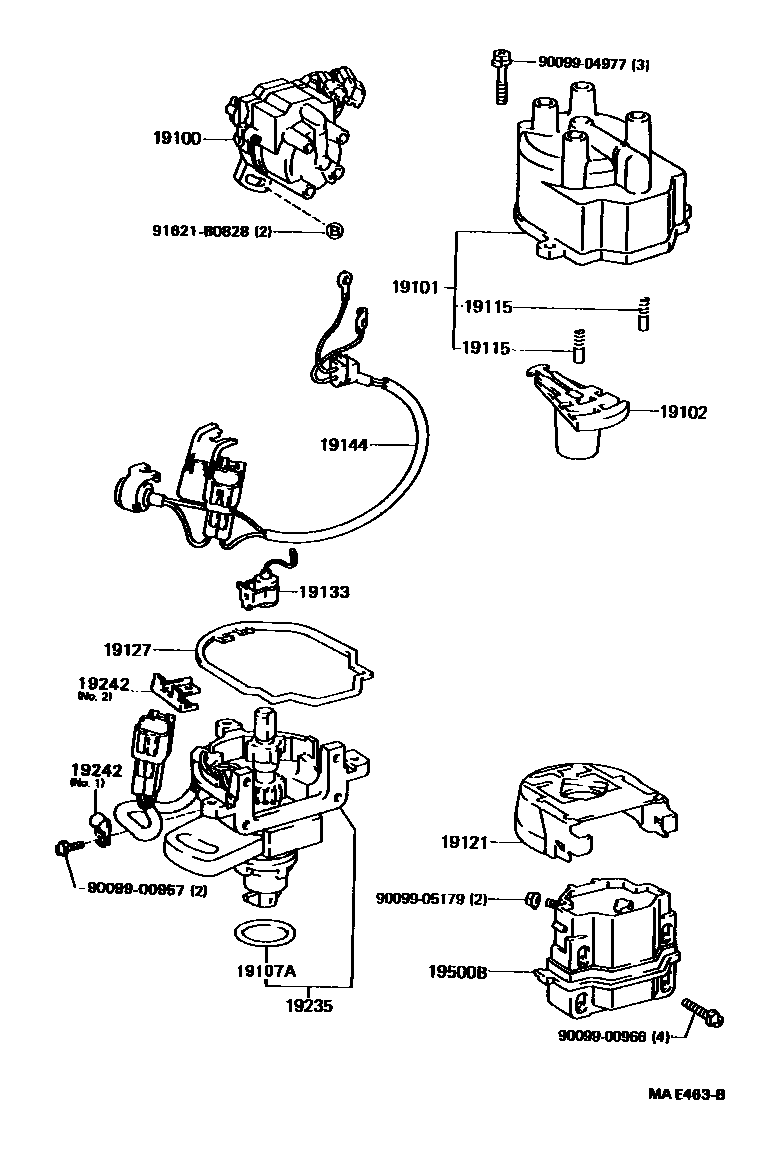

DISTRIBUTOR

19100DISTRIBUTOR ASSY

main19050-11010i5EFE..EL44199104-199508

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-11060i5EFE..EL44199104-199508

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-11031i5EFE..EL44199104-199508

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14088i5EFE..EL44199104-199508

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-63010×2i5EFE..EL44199104-199508

19121COVER, DUST PROOF

main19121-11080i5EFE..EL44199104-199508

19127PACKING, DUST PROOF

main19127-15120i5EFE..EL44199104-199508

19133CONDENSER, DISTRIBUTOR

main19133-16240i5EFE..EL44199104-199508

19144LEAD, DISTRIBUTOR BREAKER

main19144-11090i5EFE..EL44199104-199508

19235HOUSING, DISTRIBUTOR

main19235-11200i5EFE..EL44199104-199508

19242CLAMP, CORD

main19242-11010i5EFE..EL44199104-199508

NO.2

main19242-11190i5EFE..EL44199104-199508

NO.1

19500BCOIL ASSY, IGNITION

main90919-02163i5EFE..EL44199104-199508

9009900957

main90099-00957

9009900966

main90099-00966

9009904977

main90099-04977

9009905179

main90099-05179

91621B0828

main91621-B0828

17 parts on this diagram · 1 diagram in section
