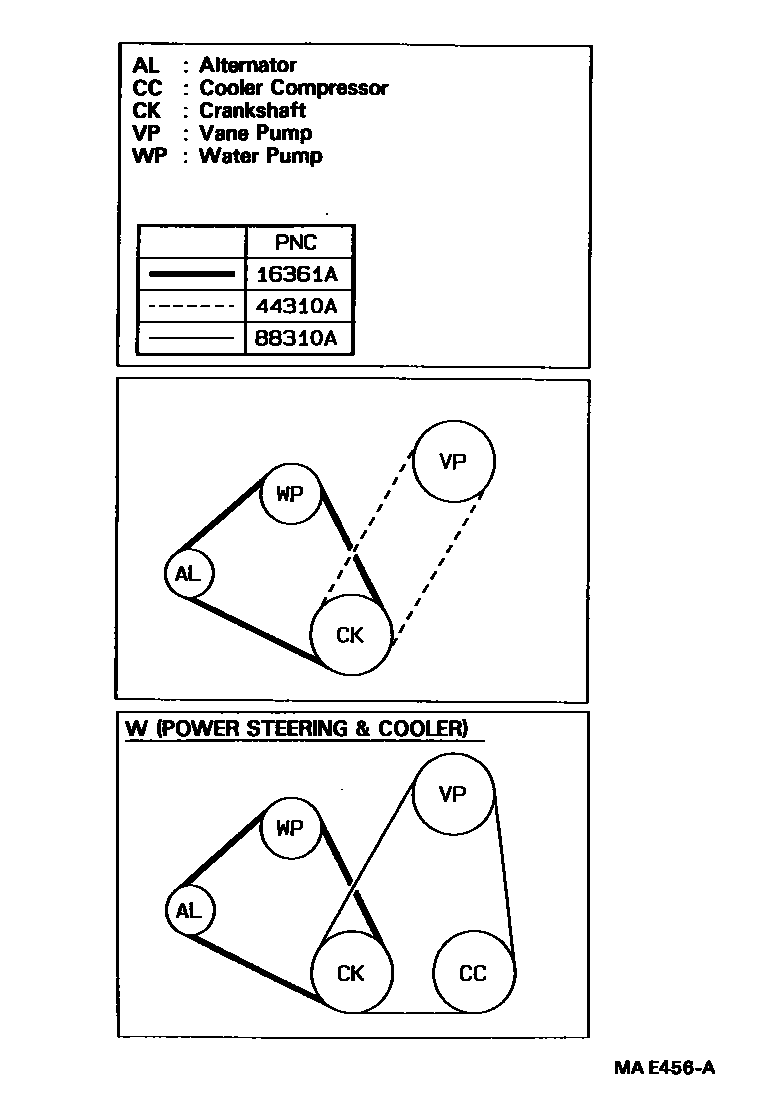

V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02341i5EFE..EL44199104-199508

44310ABELT, V(FOR VANE PUMP)

main99364-00940iEL44199104-199409

main99364-20940iEL44199409-199508

L=940,MITSUBOSHI

main99364-80940iEL44199409-199508

BANDO

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99364-21120iEL44199308-199508

MITSUBOSHI

main99364-71100iEL44199104-199208

L=1110

main99364-81120iEL44199308-199508

BANDO

3 parts on this diagram · 1 diagram in section
