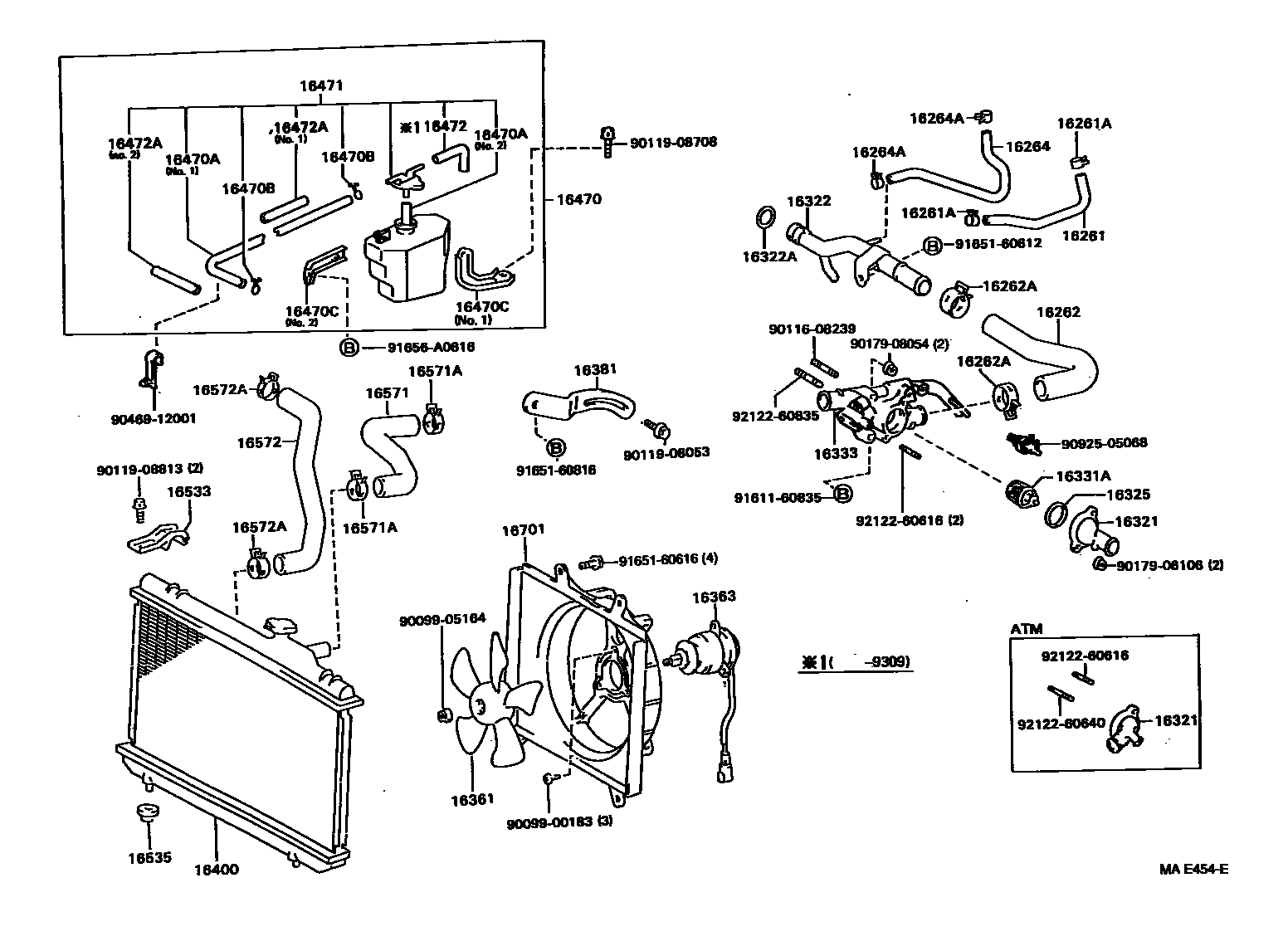

RADIATOR & WATER OUTLET
16261HOSE, WATER BY-PASS
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
sub96135-51100
16262ACLIP(FOR WATER INLET HOSE)
sub90467-34004
16264HOSE, WATER BY-PASS, NO.2
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
sub96135-51100
16321INLET, WATER
16331ATHERMOSTAT
*WAX 82-95
16333HOUSING, WATER OUTLET
16381BAR, FAN BELT ADJUSTING
16400RADIATOR ASSY
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
L=1000,NO.1
L=600,NO.2
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470CBRACKET(FOR RADIATOR RESERVE TANK)
NO.1
NO.2
16471CAP SUB-ASSY, RESERVE TANK
16472HOSE, BREATHER
16472APROTECTOR, HOSE
NO.1
16533SUPPORT, RADIATOR, UPPER
16535SUPPORT, RADIATOR, LOWER
16571HOSE, RADIATOR, INLET
sub16571-11210
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16701SHROUD SUB-ASSY, FAN
9009900183
main90099-00183
9009905164
main90099-05164
9011608239
main90116-08239
9011908053
main90119-08053
9011908708
main90119-08708
9011908813
main90119-08813
9017906106
main90179-06106
9017908054
main90179-08054
9046912001
main90469-12001
9092505068
main90925-05068
9161160835
main91611-60835
9165160612
main91651-60612
9165160616
main91651-60616
9165160816
main91651-60816
91656A0616
main91656-A0616
9212260616
main92122-60616
9212260640
main92122-60640
9212260835
main92122-60835
48 parts on this diagram · 2 diagrams in section
