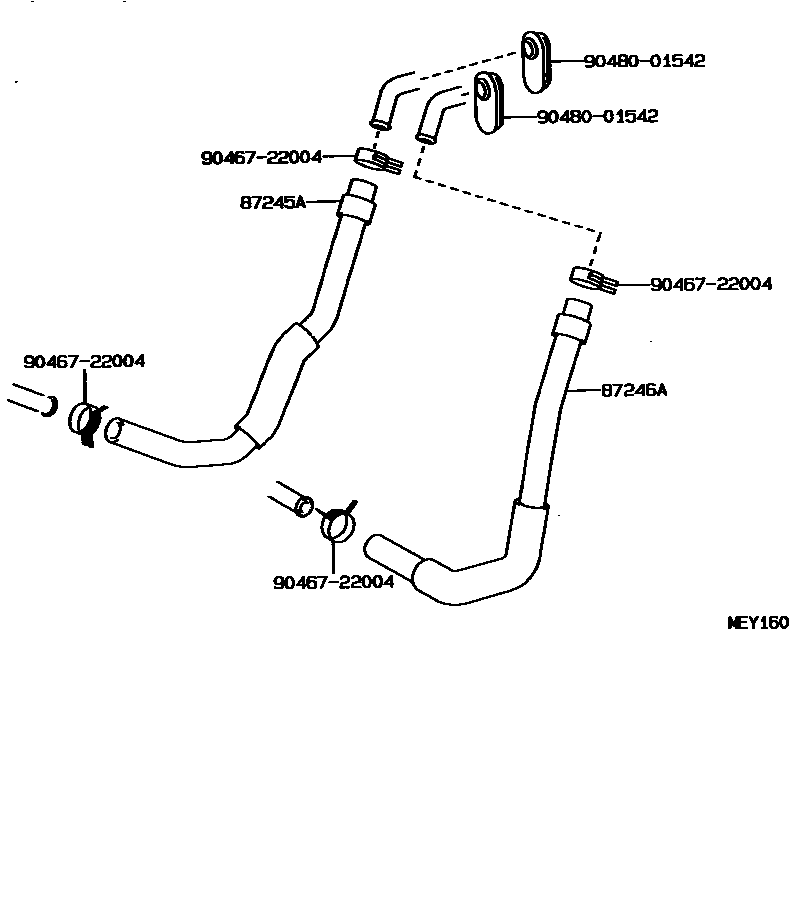

HEATING & AIR CONDITIONING - WATER PIPING

87245AHOSE, HEATER WATER, INLET A

main87245-16381iEL54..RHD..EUR199512

main87245-16400iEL54..GEN199508-199702

main87245-16460iEL54..ARL199508

main87245-16490iEL54..LHD..EUR199512

87246AHOSE, HEATER WATER, OUTLET A

main87245-16411iEL54..LHD199508

main87245-16470iEL54..RHD199508

9046722004

main90467-22004

9048001542

main90480-01542

4 parts on this diagram · 1 diagram in section
