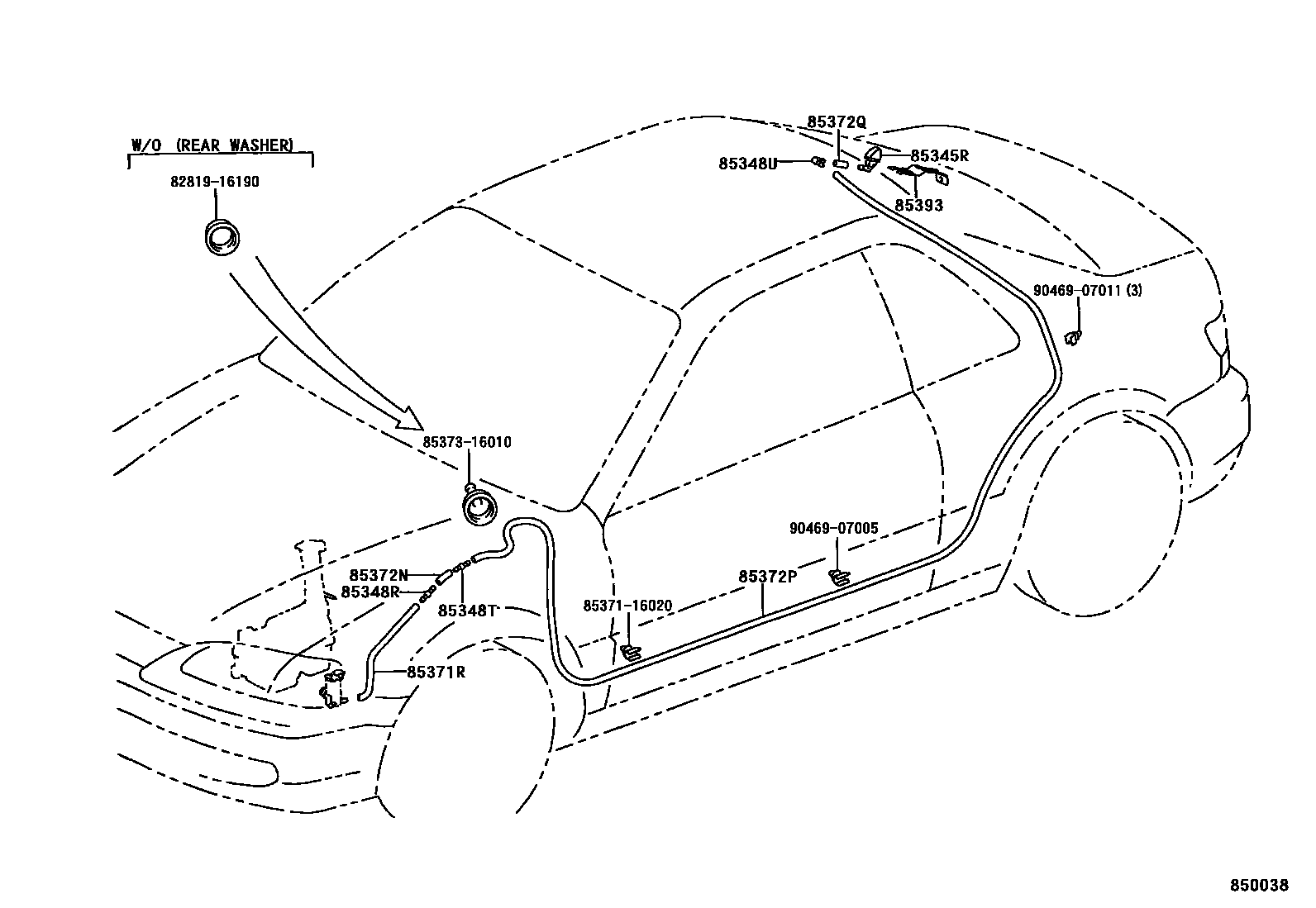

REAR WASHER
85345RNOZZLE, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=1800(*H,L=330)
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=1450(*H,L=40)
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=4985(*H,L=4345)
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
L=1450(*H,L=30)
85393HOLDER, REAR WASHER NOZZLE
8281916190GROMMET, WIRING HARNESS
main82819-16190
8537116020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-16020
8537316010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main85373-16010
9046907005
main90469-07005
9046907011
main90469-07011
14 parts on this diagram · 1 diagram in section
