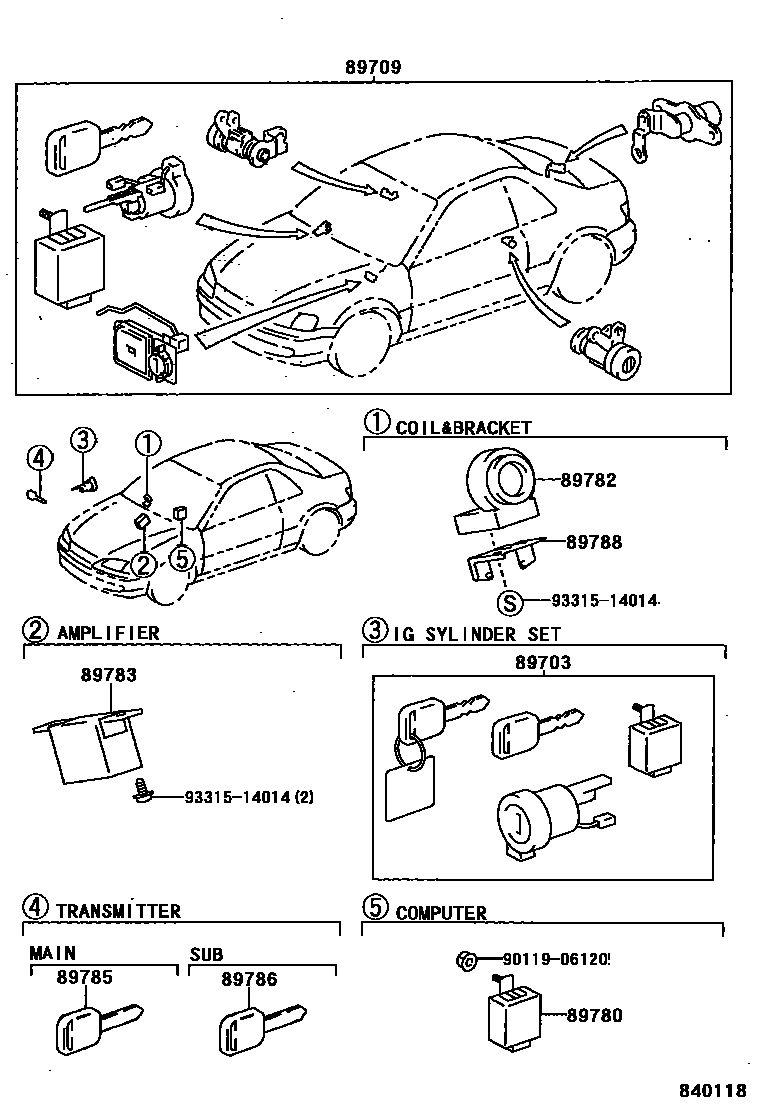

ANTI-THEFT DEVICE

0001 1 0002 1

89703CYLINDER & KEY SET, IGNITION W/TRANSPONDER

main89703-16010iEL54..LHD..CVT199712-199802

main89703-16020iEL54..RHD..CVT199712-199802

main89703-16030iEL54..LHD..CP199712-199802

main89703-16040iEL54..RHD..CP199712-199802

89709COMPUTER SET, TRANSPONDER KEY

main89709-16010iEL54..LHD..CP..EUR199512-199712

main89709-16020iEL54..RHD..EUR199512-199608

main89709-16030iEL54..LHD..CVT199610-199802

main89709-16040iEL54..RHD..CVT199610-199802

main89709-16050iEL54..LHD..CP199712

main89709-16060iEL54..RHD..CP199712

main89709-16070iEL54..LHD..CVT199802

main89709-16080iEL54..RHD..CVT199802

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-16010iEL54..LHD..CVT199712-199802

main89780-16020iEL54..RHD..CVT199712-199802

main89780-16030iEL54..LHD..CP199712-199802

main89780-16040iEL54..RHD..CP199712-199802

89782COIL, TRANSPONDER KEY

main89782-16010iEL54..ARL,EUR199608-199712

main89782-28020iEL54..CP199712-199802

89783AMPLIFIER, TRANSPONDER KEY

main89783-16010iEL54..EUR199512-199608

main89783-16011iEL54..ARL,EUR199608-199712

main89783-28020iEL54..CP199712-199802

89785TRANSMITTER, TRANSPONDER KEY MASTER

main89785-16020iEL54..EUR199512-199608

89786TRANSMITTER, TRANSPONDER KEY SUB

main89786-16020iEL54..EUR199512-199608

89788BRACKET, TRANSPONDER KEY

main89788-16010iEL54..EUR199512-199608

9011906120

main90119-06120

9331514014

main93315-14014

10 parts on this diagram · 2 diagrams in section
