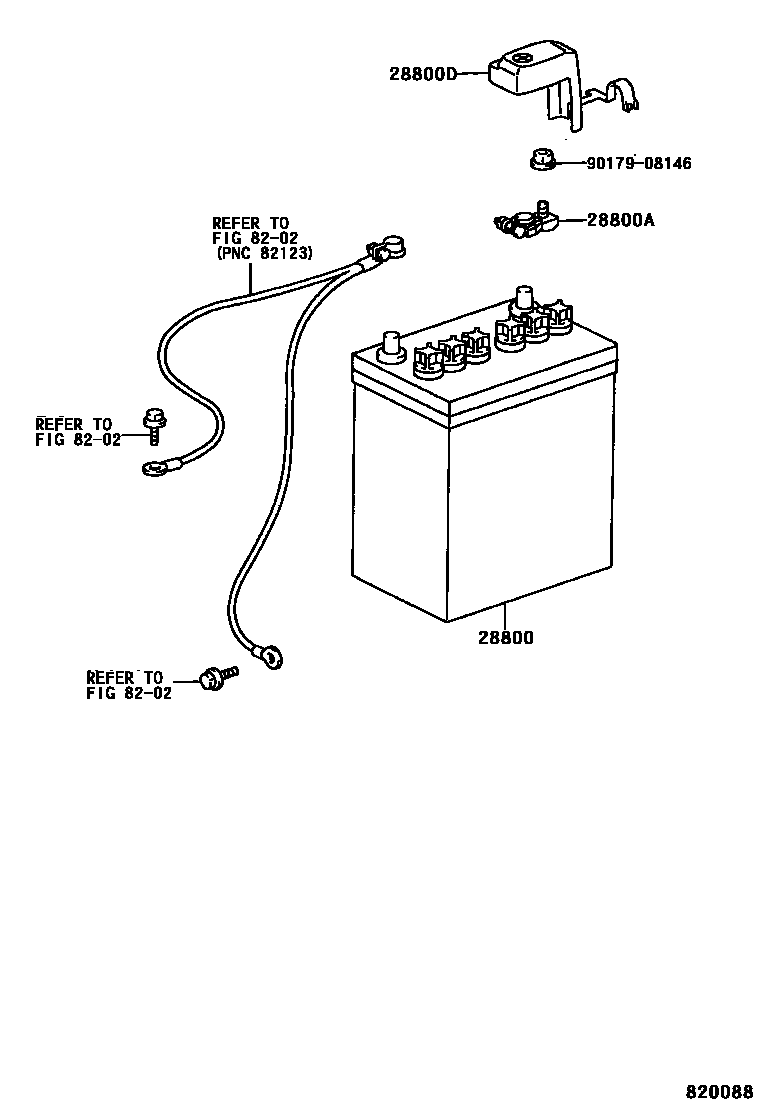

BATTERY & BATTERY CABLE

28800BATTERY

main28800-11380i5EFE..EL54..ARL,EUR199508

50D20R,MATSUSHITA

main28800-12060i5EFE..EL54..ARL,EUR199608

50D20R

main28800-13060i5EFE..EL54..GEN199508-199603

28B19R

main28800-14010i5EFE..EL54..EUR199802

55D23R

main28800-14030i5EFE..EL54..ARL,EUR199508-199608

50D20R,GS

main28800-15010i5EFE..EL54..CVT199712-199802

55D23R

main28800-24030i5EFE..EL54..GEN199508-199702

34B19R

main28800-33090i5EFE..EL54..GEN199508-199702

32C24R

28800ATERMINAL, BATTERY POSITIVE

main90982-05034i5EFE..EL54..GEN199508-199702

main90982-05035i5EFE..EL54..CP199508

W(BATTERY=32C24R)

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12290i5EFE..EL54199508

8202WIRING & CLAMP

→ Go to FIG 82-02

9017908146

main90179-08146

5 parts on this diagram · 1 diagram in section
