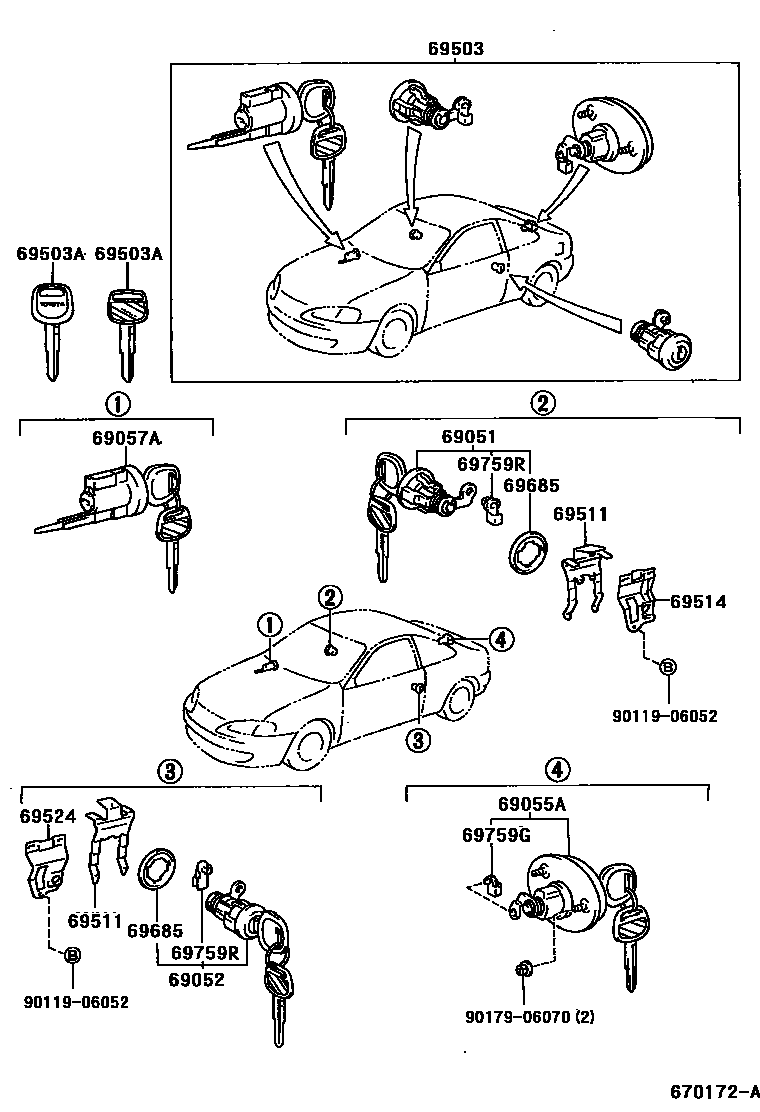

LOCK CYLINDER SET

0001 1 0002 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-16260iEL54..ARL,GEN199508-199608

main69051-16270iEL54..CVT199712-199802

main69051-16310iEL54..CP199712-199802

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-16240iEL54..ARL,GEN199508-199608

main69052-16250iEL54..ARL,EUR199608-199712

main69052-16290iEL54199802

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-16440iEL54..ARL,GEN199508-199608

main69055-16460iEL54..EUR199512-199608

main69055-16550iEL54..CP199712-199802

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-16140iEL54..ARL,GEN199508-199608

main69057-16200iEL54..EUR199512-199712

main69057-16210iEL54..EUR199512-199608

W(ENGINE IMMOBILIZER SYSTEM)

69503CYLINDER SET, LOCK

main69005-1G070iEL54..ARL,GEN199508-199608

main69005-1G090iEL54..CP..EUR199512-199712

main69005-1G160iEL54..RHD..CVT199610-199802

main69005-1G170iEL54..LHD..CVT199610-199802

69503AKEY, BLANK

main90999-00144iEL54..EUR199512-199608

MASTER KEY

main90999-00145iEL54..CVT199712-199802

SUB KEY

main90999-00166iEL54..ARL,GEN199508-199608

MASTER KEY,W(*68)

main90999-00167iEL54..GEN199608-199702

MASTER KEY

main90999-00168iEL54..GEN199608-199702

SUB KEY

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-16030×2iEL54..CP199508-199802

main69511-16040iEL54..CVT199610-199802

69514SUPPORT, FRONT DOOR LOCK CYLINDER, RH

main69514-16010iEL54..EUR199512

69524SUPPORT, FRONT DOOR LOCK CYLINDER, LH

main69524-16010iEL54..EUR199512

69685PAD, LOCK CYLINDER

main69563-16050×2iEL54199508

69759GSNAP, LUGGAGE DOOR LOCK CYLINDER

main69759-24090iEL54199508

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-30040iEL54199508

BEIGE

main69759-30050iEL54199508

GREEN

9011906052

main90119-06052

9017906070

main90179-06070

14 parts on this diagram · 2 diagrams in section
