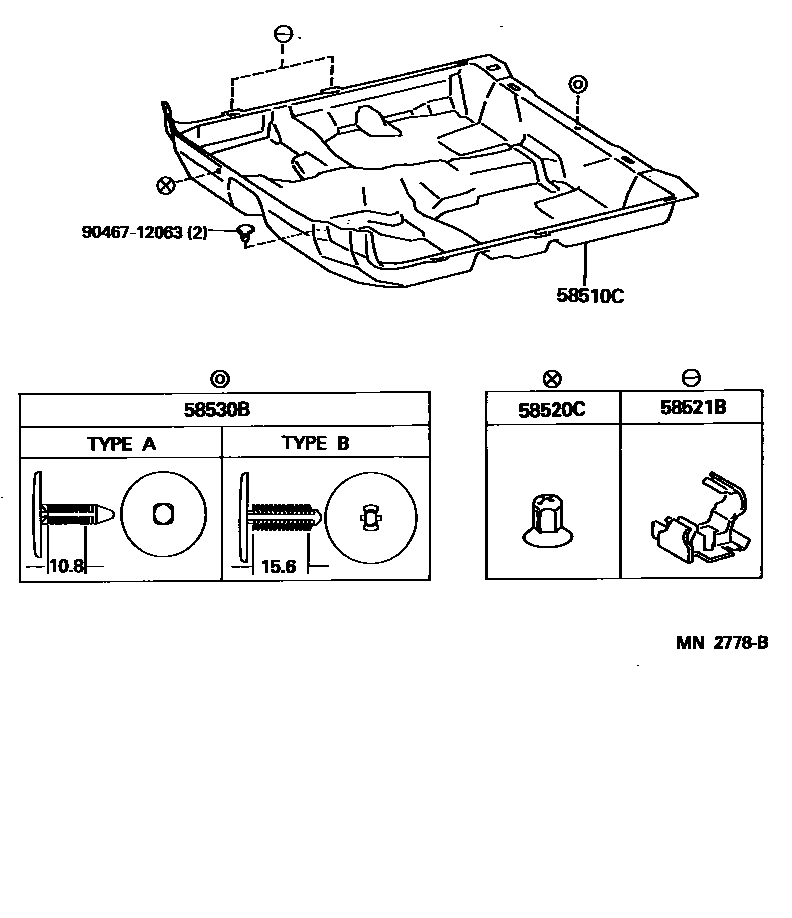

MAT & CARPET

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-1S030-B0iEL54..RHD..EUR199512-199608

BLUISH GRAY,TRIM1#

main58510-1S070-B0iEL54..GEN199508-199608

BLUISH GRAY,TRIM1#

main58510-1S080-B0iEL54..LHD..EUR199512-199608

BLUISH GRAY,TRIM1#

main58510-1S090-B0iEL54..ARL199508-199608

BLUISH GRAY,TRIM1#

main58510-1S110-B0iEL54..RHD..CVT199610-199802

BLUISH GRAY,TRIM1#

main58510-1S130-B0iEL54..LHD..CVT199610-199802

BLUISH GRAY,TRIM1#

main58510-1S380-B0iEL54..RHD..CP..EUR199608-199712

BLUISH GRAY,TRIM1#

main58510-1S390-B0iEL54..LHD..CP..EUR199608-199712

BLUISH GRAY,TRIM1#

main58510-1S410-B0iEL54..GEN199608-199702

BLUISH GRAY,TRIM1#

main58510-1S420-B0iEL54..ARL199608-199712

BLUISH GRAY,TRIM1#

main58510-1S710-B1iEL54..ARL199712

GRAY,TRIM1#

main58510-1S720-B1iEL54..RHD..CP..EUR199712

GRAY,TRIM1#

main58510-1S740-B1iEL54..LHD..CP199712

GRAY,TRIM1#

main58510-1S760-B1iEL54..RHD..CVT199802

GRAY,TRIM1#

main58510-1S780-B1iEL54..LHD..CVT199802

GRAY,TRIM1#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-05051-22iEL54199508-199610

BLACK,TRIM1#

58521BHOOK, FLOOR CARPET

main58521-16030×4iEL54199508

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-C0iEL54199508

TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1#

main90467-07049-C0iEL54199508

TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM1#

9046712063

main90467-12063

5 parts on this diagram · 1 diagram in section
