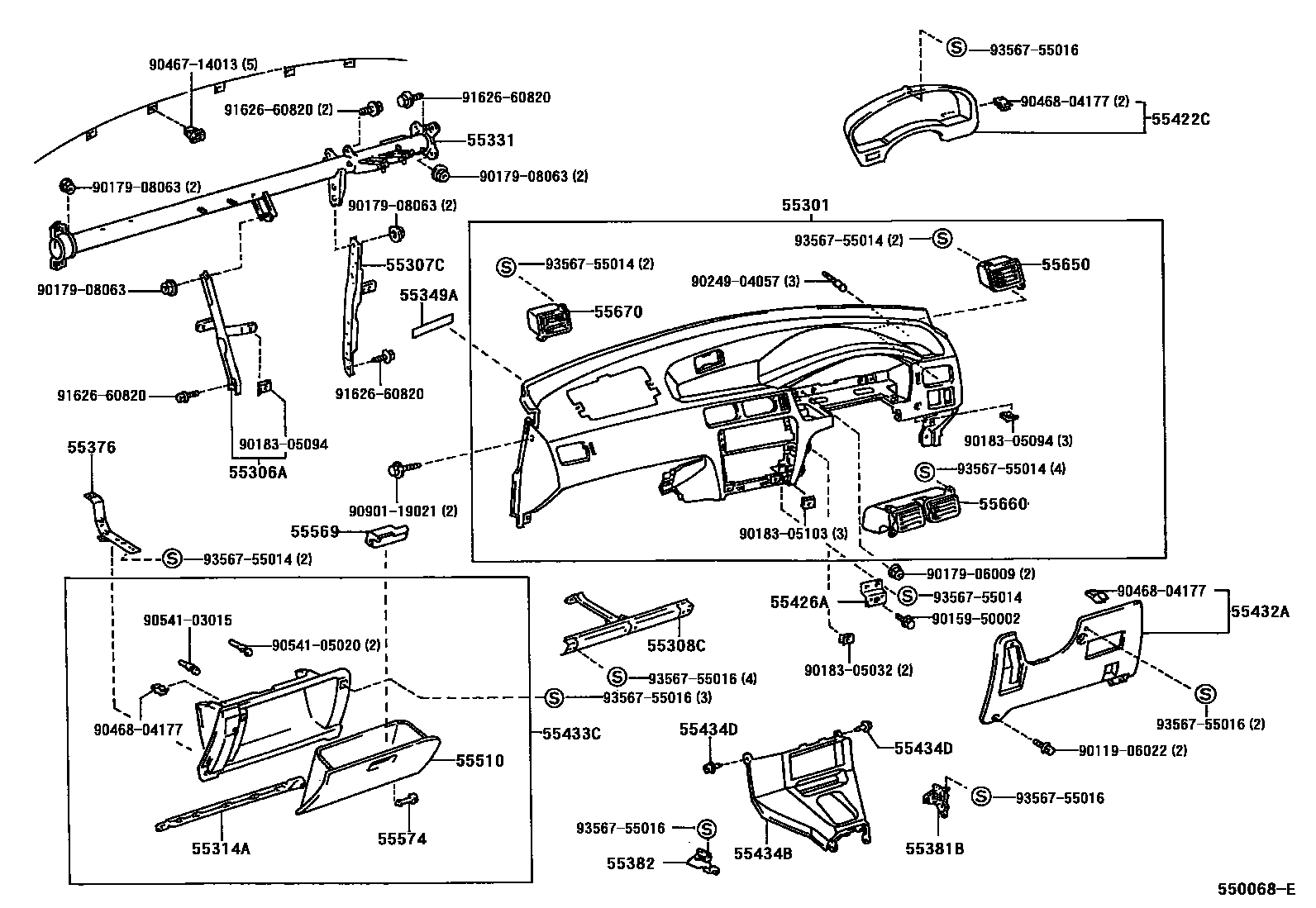

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1

55301PANEL SUB-ASSY, INSTRUMENT

main55301-16080-B3iEL54..ARL199608-199712

SHADOW GRAY,TRIM1#

main55301-16090-B1iEL54..GEN199512-199608

SHADOW GRAY

main55301-16091-B3iEL54..LHD199608-199802

SHADOW GRAY,TRIM1#

main55301-16110-B0iEL54..RHD..EUR199512-199608

SHADOW GRAY,TRIM1#

main55301-16120-B0iEL54..ARL199508-199608

SHADOW GRAY,TRIM1#

main55301-16130-B0iEL54..LHD199512-199608

SHADOW GRAY,TRIM1#

main55301-16140-B0iEL54..RHD199608-199802

W(*80,DRIVER SIDE & PASSENGERSIDE),SHADOW GRAY,TRIM1#

main55301-16150-B1iEL54..RHD199802-199907

W(*80,DRIVER SIDE & PASSENGERSIDE),SHADOW GRAY,TRIM1#

main55301-16160-B1iEL54..ARL199712-199907

SHADOW GRAY,TRIM1#

main55301-16170-B1iEL54..LHD199802

SHADOW GRAY,TRIM1#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-16100iEL54..LHD199508-199712

main55306-16110iEL54..RHD199508

main55306-16120iEL54..LHD..CP199712-199802

main55306-16130iEL54..LHD199805

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-16100iEL54..LHD199508

main55307-16110iEL54..RHD199508-199712

main55307-16120iEL54..RHD..CP199712-199802

main55307-16130iEL54..RHD199805

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-16060iEL54..RHD..CP199508

main55308-16070iEL54..LHD..CP199508

main55308-16080iEL54..RHD..CVT199610

main55308-16090iEL54..LHD..CVT199610

55314APANEL, INSTRUMENT, LOWER CENTER

main55314-16020iEL54..LHD199508

main55314-16030iEL54..RHD199508

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-16160iEL54..ARL199508-199608

main55330-16170iEL54..RHD..EUR199512-199608

main55330-16171iEL54..RHD199608-199712

main55330-16180iEL54..LHD199508-199608

main55330-16181iEL54..LHD199608-199712

main55330-16210iEL54..RHD..CP199712-199802

main55330-16230iEL54..LHD..CP199712-199802

55349ACUSHION, INSTRUMENT PANEL

main55349-16040×2iEL54199608

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-16050iEL54199508

55381BBRACKET, FINISH PANEL MOUNTING, NO.1

main55381-16040iEL54199508

55382BRACKET, FINISH PANEL MOUNTING, NO.2

main55382-16040iEL54199508

55422CPANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER

main55422-16060iEL54..RHD..CVT199712-199802

main55422-16070iEL54..GEN199508-199702

main55422-16080iEL54..LHD..CVT199712-199802

main55422-16090-B0iEL54..RHD..CP199712-199802

SHADOW GRAY,TRIM1#

main55422-16110-B0iEL54..LHD..CP199712-199802

SHADOW GRAY,TRIM1#

55426ABRACKET, CLUSTER FINISH PANEL, NO.1

main55426-16020×2iEL54..EUR199512

55432APANEL, INSTRUMENT PANEL FINISH, LOWER RH

main55045-16070-B1iEL54..LHD..CP199508

SHADOW GRAY,TRIM1#

main55045-16110-B0iEL54..LHD..CVT199610

SHADOW GRAY,TRIM1#

main55432-16140-B1iEL54..RHD..EUR199608-199712

SHADOW GRAY,TRIM1#

main55432-16140-B2iEL54..RHD199802

MD.GRAY,TRIM1#

main55432-16150-B1iEL54..ARL199508-199712

SHADOW GRAY,TRIM1#

55433CPANEL, INSTRUMENT PANEL FINISH, LOWER LH

main55045-16050-B1iEL54..RHD..CP199608

SHADOW GRAY,TRIM1#

main55045-16090-B0iEL54..RHD..CVT199610

SHADOW GRAY,TRIM1#

55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

main55434-16050-B1iEL54..RHD199508

SHADOW GRAY,TRIM1#

main55434-16060-B1iEL54..LHD199508

SHADOW GRAY,TRIM1#

55434DCLIP, INSTRUMENT PANEL FINISH, LOWER CENTER

main90467-07071-B4×2iEL54199508

SHADOW GRAY,TRIM1#

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-16110-B1iEL54..RHD..CP199508

SHADOW GRAY,TRIM1#

main55550-16130-B1iEL54..LHD..CP199508

SHADOW GRAY,TRIM1#

main55550-16150-B0iEL54..RHD..CVT199610

SHADOW GRAY,TRIM1#

main55550-16170-B0iEL54..LHD..CVT199610

SHADOW GRAY,TRIM1#

55569COVER, GLOVE COMPARTMENT DOOR LOCK

main55569-16010iEL54..RHD..CVT199610-199903

main55569-16020iEL54..LHD..CVT199610-199903

55574SHAFT, GLOVE COMPARTMENT DOOR HINGE

main55574-10010×2iEL54199508

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-16080-B1iEL54199508-199509

SHADOW GRAY,TRIM1#

main55650-16080-B2iEL54199509-199712

GRAY,TRIM1#

main55650-16100-B1iEL54..CP199712-199802

SHADOW GRAY,TRIM1#

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-16050-B1iEL54199508-199509

SHADOW GRAY,TRIM1#

main55660-16050-B2iEL54199509-199712

GRAY,TRIM1#

main55660-16070-B1iEL54199802

SHADOW GRAY,TRIM1#

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-16050-B1iEL54199508-199509

SHADOW GRAY,TRIM1#

main55670-16050-B2iEL54199509-199712

GRAY,TRIM1#

main55670-16070-B1iEL54..CP199712-199802

SHADOW GRAY,TRIM1#

9011906022

main90119-06022

9015950002

main90159-50002

9017906009

main90179-06009

9017908063

main90179-08063

9018305032

main90183-05032

9018305094

main90183-05094

9018305103

main90183-05103

9024904057

main90249-04057

9046714013

main90467-14013

9046804177

main90468-04177

9054103015

main90541-03015

9054105020

main90541-05020

9090119021

main90901-19021

9162660820

main91626-60820

9356755014

main93567-55014

9356755016

main93567-55016

38 parts on this diagram · 4 diagrams in section
