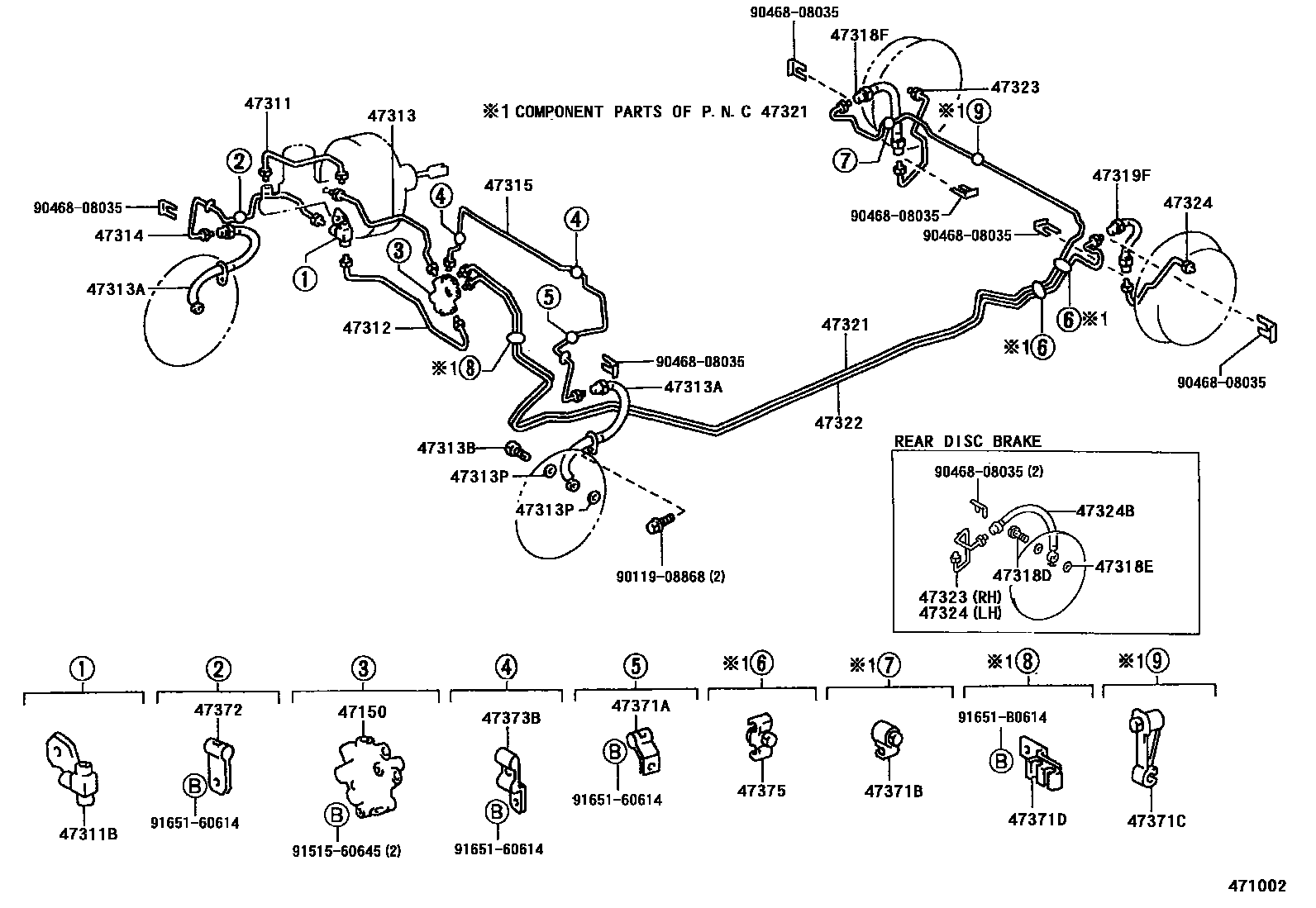

BRAKE TUBE & CLAMP
47150VALVE ASSY, PROPORTIONING
W(ABS)
W(ABS)
W(ABS)
W(ABS)
47311TUBE, FRONT BRAKE, NO.1
W(ABS)
W(ABS)
W(ABS)
W(ABS)
47311BWAY, NO.1(FOR FRONT BRAKE TUBE)
W(ABS)
W(ABS)
W(ABS)
47312TUBE, FRONT BRAKE, NO.2
W(ABS)
W(ABS)
W(ABS)
W(ABS)
47313TUBE, FRONT BRAKE, NO.3
W(ABS)
W(ABS)
W(ABS)
W(ABS)
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47314TUBE, FRONT BRAKE, NO.4
W(ABS)
47315TUBE, FRONT BRAKE, NO.5
W(ABS)
W(ABS)
W(ABS)
W(ABS)
47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)
47318EGASKET(FOR REAR FLEXIBLE HOSE)
47318FHOSE, FLEXIBLE(FOR REAR RH)
47319FHOSE, FLEXIBLE(FOR REAR LH)
47323TUBE, REAR BRAKE, NO.3
47324TUBE, REAR BRAKE, NO.4
47324BHOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2)
47371ACLAMP, BRAKE TUBE, NO.1
W(ABS)
LH
W(ABS)
RH
47371BCLAMP, BRAKE TUBE, NO.6
47371CCLAMP, BRAKE TUBE, NO.7
47372CLAMP, BRAKE TUBE, NO.2
W(ABS)
W(ABS)
47373BCLAMP, BRAKE TUBE, NO.3
W(ABS)
W(ABS)
47375CLAMP, BRAKE TUBE, NO.5
9011908868
main90119-08868
9046808035
main90468-08035
9151560645
main91515-60645
9165160614
main91651-60614
91651B0614
main91651-B0614
32 parts on this diagram · 8 diagrams in section
